The 7 fiber OR 7 Bimetallic friction discs and
6 steel discs required.
The steering clutches for the later International model 500, 500C, and 500E series
crawlers were derived from the earlier T4, T5,TD4, and TD5 crawlers. The T4/TD4 T5/TD5
crawlers used 7 friction discs 675848R2 (their part number changed from 635385R1 and 6
steel discs 635384R1. We supply new after market replacement DISCS, DRUMS, HUBS, BRAKE
BANDS, and PRESSURE PLATES for your clutch packs.
To be sure that you get the correct discs and related parts, please make sure that your
discs match the dimensions and tooth counts.
 Free
shipping in US only, Priority Mail or UPS Ground, on orders $500 or higher.ORDERING INFO:
 We
can usually ship on the same day any items we have in stock that do not have to be pulled
from a machine. We are set up to offer the payment choices of either Visa, Master Card, or
the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the US you may call 1-800-531-9021 or if you are
outside the US, 1 208 342 8911. You may also email steeringclutch@gmail.com for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
IH T4-TD4

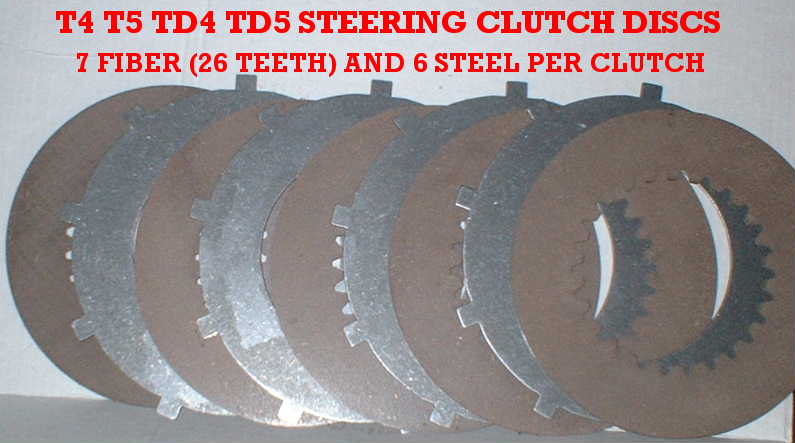

TD4 Steering Clutch Discs
FIBER DISCS 675848R2 (old p/n 635385R1) 21.00 ea 26 internal teeth, 9" O.D.
STEEL DISCS 635384R1 20.00 ea 9 external square dogs

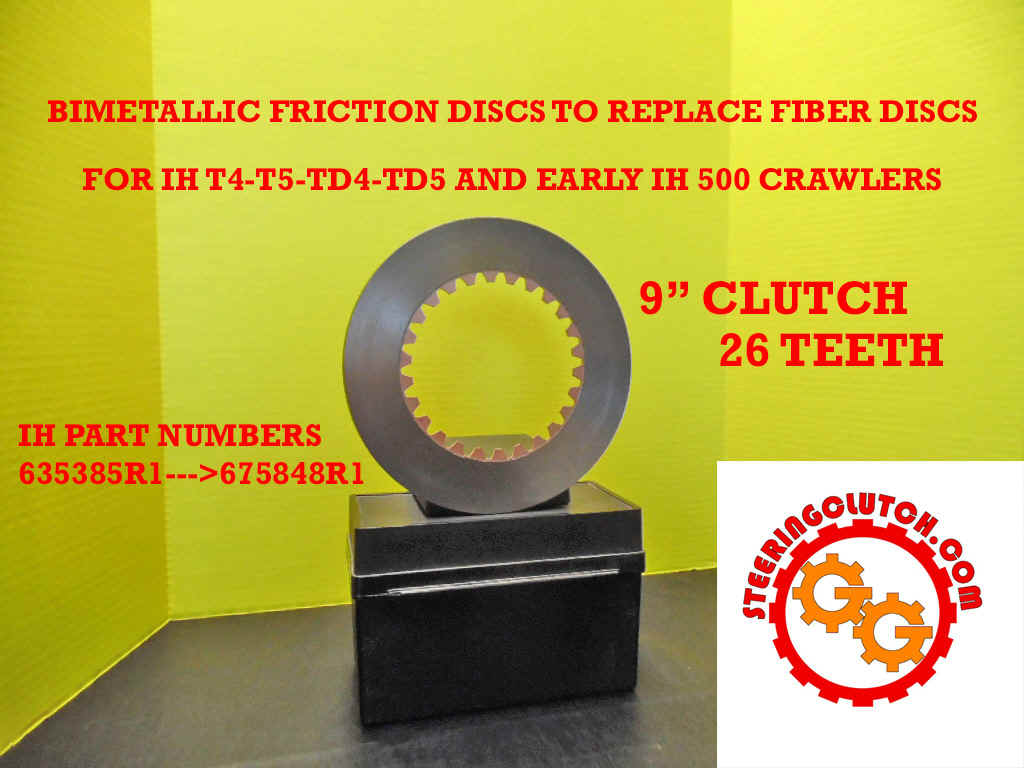

BIMETALLIC FRICTION DISCS....
 $29/EA
(click on picture to enlarge) ....NOW IN STOCK
THESE NEW HEAVIER DUTY DISCS WILL ELIMINATE MANY OF YOUR PROBLEMS CREATED BY THE USE
OF THE EARLY STYLE FIBER FRICTION DISCS. Order P/N 675848R2BM
CLUTCH PACK OPTIONS
IH T4-TD4 7 FIBER AND 6 STEEL PLATES TOTAL COST, FOR ONE CLUTCH PACK, = $267.00
IH T4-TD4 7 BIMETALLIC AND 6 STEEL PLATES
TOTAL COST FOR ONE T4-TD4
CLUTCH PACK = $323.00
IF YOU WANT OR NEED COMPLETE CLUTCH KITS YOU HAVE OPTIONS OF FIBER OR
BIMETALLIC FRICTION DISCS.
9" CLUTCH KIT OF 7 FIBER FRICTIONS AND 6
STEELS, PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING, AND SNAP RING HAS A
COST OF $643.00
9" CLUTCH KIT OF 7 BIMETALLIC FRICTIONS
AND 6 STEELS, PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING AND SNAP RING HAS
A COST OF $699.00
(BIMETALLICS HIGHLY RECOMMENDED!!)

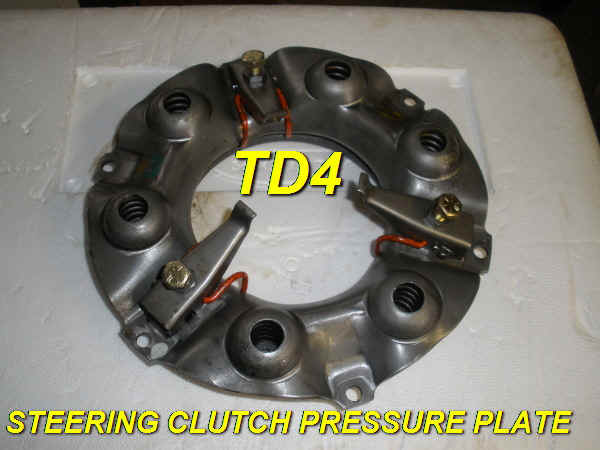

T4 & TD4 NEW STEERING CLUTCH PRESSURE PLATE
635557R91 172.00 ea

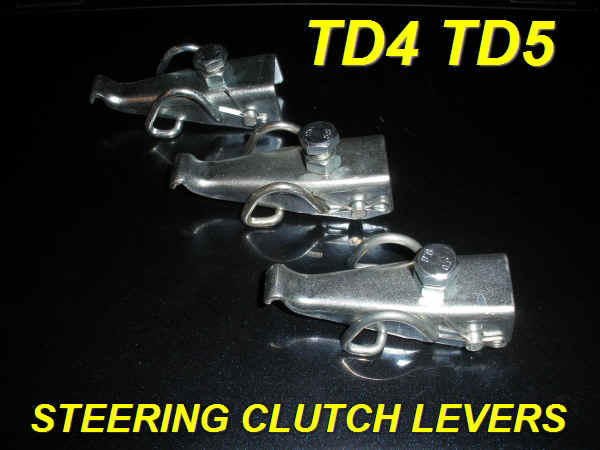

SET OF 3 = 353246R91 Steering Clutch levers for T4/TD4 and T5/TD5 ...74.00 per set of 3
includes 3 each of
353243R91 Lever
51461D Spring
51460D Pin
103371 Pin

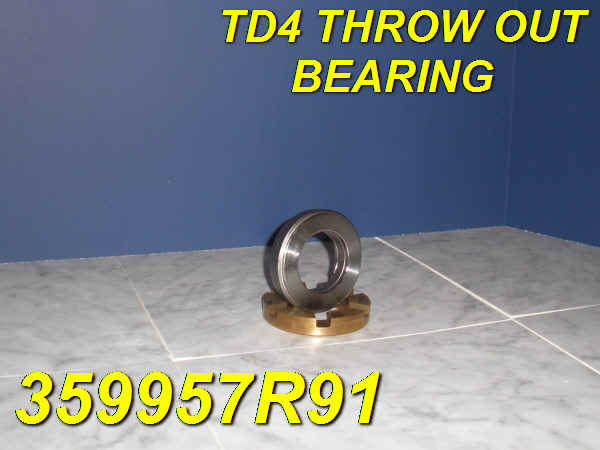

TD4 STEERING CLUTCH THROW-OUT BEARING.....359957R91 $15.00 ea

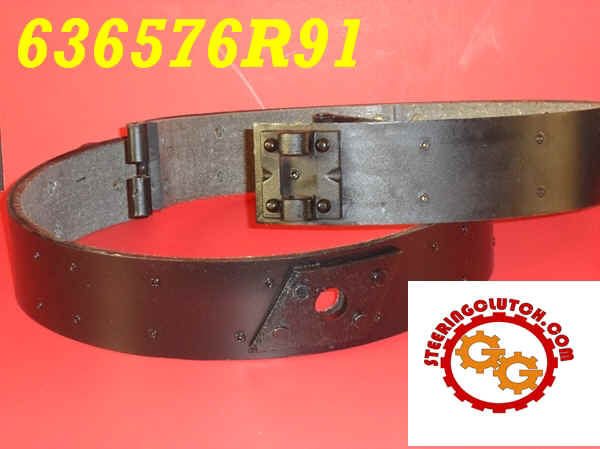

T4 & TD4 NEW BRAKE BANDS WITH NEW
LINING 636576R91 170.00 ea
We ordered
enough of these in volume to keep the cost down to make the brake band competitive with
relining your own band. This will speed up your repair by having them ready to ship.
 T4 & TD4/ NEW BRAKE
DRUMS 635375R1 185.00 ea
TD4 BASE PLATES.....635381R2........ ...............$245.00 ea
TD4 INNER STEERING CLUTCH
DRIVING HUBS....635376R1 / 636416R1...... ........$230.00
ea
TD4 INNER STEERING CLUTCH
DRIVING HUBS RETAINER RING  635394R1 (arriving
February 2017)
$19.00 EA or $32.00 for set of 2
(SET..........635393R1
& 635392R1 LINKS ....one of each.....$60.00)

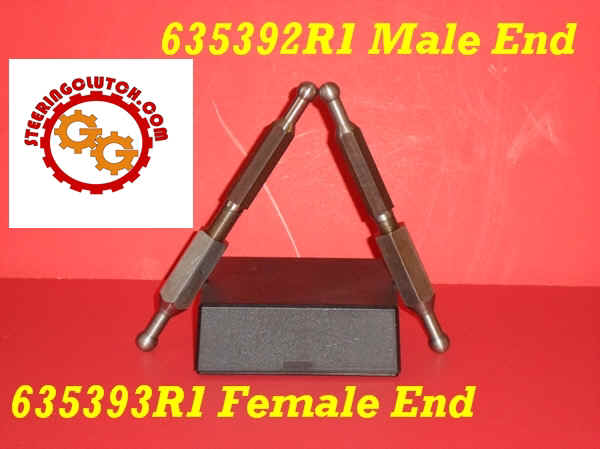

ADJUSTING LINK (female end)............635393R1...........$35.00
ADJUSTING LINK (male
end)...............635392R1............$35.00
TD5/T5
TD5 TD5 Steering Clutch Discs
FIBER DISCS 675848R2 (old p/n 635385R1) 21.00 ea 26 internal teeth, 9" O.D.
STEEL DISCS 635384R1 20.00 ea 9 external square dogs
BIMETALLIC FRICTION DISCS....
$29/EA (click on picture to enlarge) ....NOW IN STOCK
THESE NEW HEAVIER DUTY DISCS WILL ELIMINATE MANY OF YOUR PROBLEMS CREATED BY THE USE OF
THE EARLY STYLE FIBER FRICTION DISCS. Order P/N 675848R2BM
CLUTCH PACK OPTIONS
7 FIBER AND 6 STEEL PLATES TOTAL COST, FOR ONE CLUTCH PACK, = $267.00

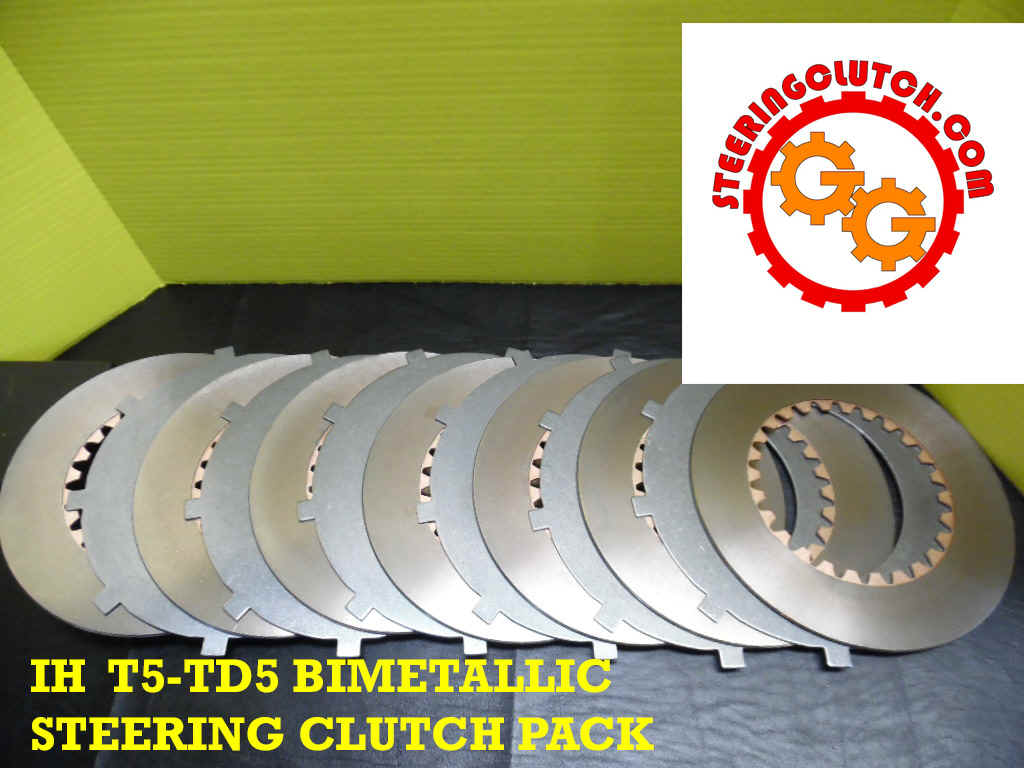

7 BIMETALLIC AND 6 STEEL PLATES
TOTAL COST FOR ONE T5-TD5 CLUTCH PACK = $323.00
IF YOU WANT OR NEED COMPLETE CLUTCH KITS YOU HAVE OPTIONS OF FIBER OR
BIMETALLIC FRICTION DISCS.
9" CLUTCH KIT OF 7 FIBER FRICTIONS AND 6
STEELS, PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING, AND SNAP RING HAS A
COST OF $643.00
9" CLUTCH KIT OF 7 BIMETALLIC FRICTIONS
AND 6 STEELS, PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING AND SNAP RING HAS
A COST OF $699.00
(BIMETALLICS HIGHLY RECOMMENDED!!)

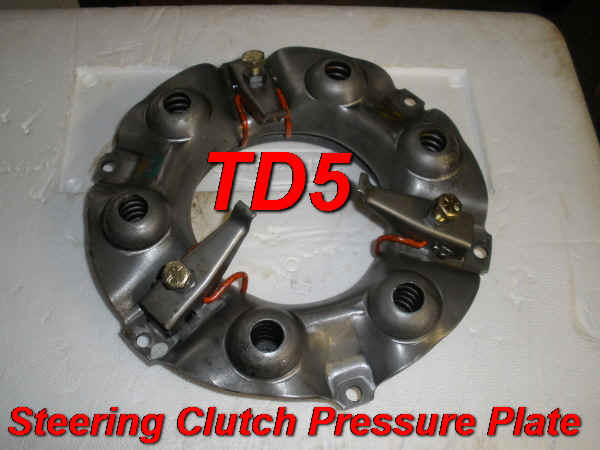

T5 & TD5 NEW STEERING CLUTCH PRESSURE PLATE 635557R91
172.00 ea
SET OF 3 = 353246R91 Steering Clutch levers for T4/TD4 and T5/TD5 ...74.00 per set of 3
includes 3 each of
353243R91 Lever
51461D Spring
51460D Pin
103371 Pin
T5 & TD5 NEW BRAKE BANDS WITH NEW
LINING 636576R91 170.00 ea We
ordered enough of these in volume to keep the cost down to make the brake band competitive
with relining your own band. This will speed up your repair by having them ready to
ship.
T5 & TD5 NEW BRAKE
DRUMS 635375R1 185.00 ea

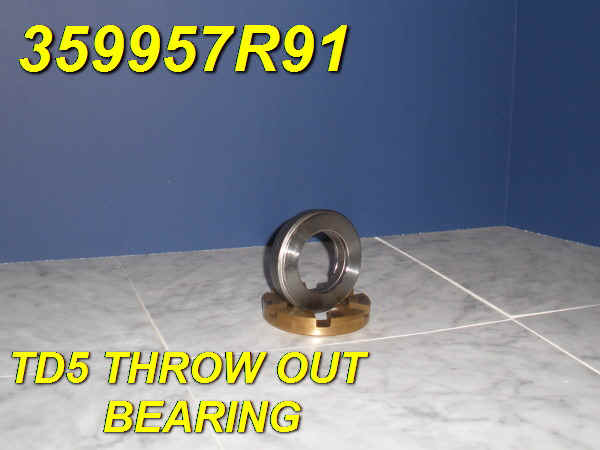

TD5 STEERING CLUTCH THROW-OUT BEARING.....359957R91 $15.00 ea

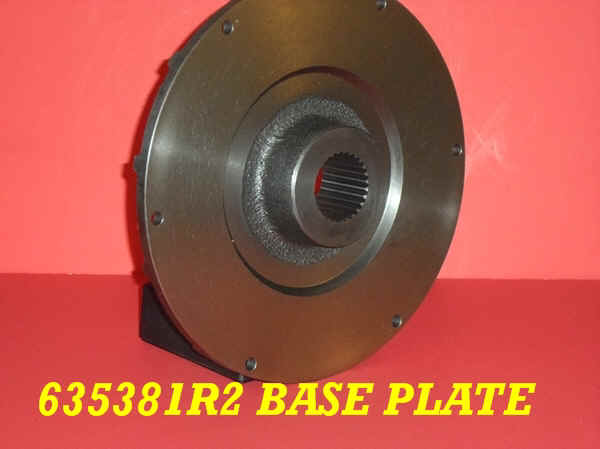

BASE PLATES.....635381R2.......................$245.00 ea

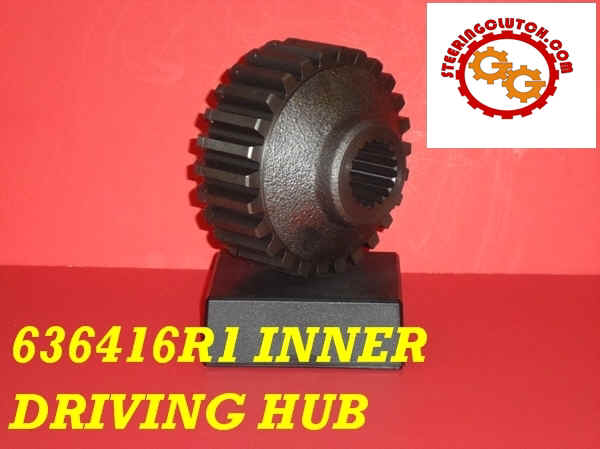

INNER STEERING CLUTCH DRIVING HUBS....635376R1 /
636416R1..............$230.00
ea
TD5 INNER STEERING CLUTCH DRIVING HUBS RETAINER RING 635394R1 $19.00
EA or $32.00 for set of 2
(SET..........635393R1
& 635392R1 LINKS ....one of each.....$60.00)
ADJUSTING LINK (female end)............635393R1...........$35.00
ADJUSTING LINK (male
end)...............635392R1............$35.00
INTERNATIONAL SERIAL NUMBERS
INTERNATIONAL TD4 TD5 CRAWLER PARTS
INTERNATIONAL TD4/TD5
STEERING CLUTCH PARTS
TD4 AND
TD5 FINAL DRIVE PARTS
INTERNATIONAL
T4 T5 TD4 TD5 SPECIFICATIONS
INTERNATIONAL
T4 T5 TD4 TD5 CRAWLER SERVICE
INTERNATIONAL
ENGINE SERVICE C-123 C-135 GAS ENGINES
INTERNATIONAL
ENGINE SERVICE BD-144C DIESEL ENGINE
To adjust your steering clutch levers and
pressure plate, the two pages below were contributed
by Jim Stoneman of MitsBits Dozer Parts
in VIctoria, Australia.......Thanks much Jim!!
TD4 and TD5 steering clutch adjustment:
Page 1
Page 2
