KOMATSU D20 D21 STEERING CLUTCH PARTS

Quantities required are based upon your model, serial number, and  the condition of your clutch.  There were also two sizes of steering clutches in these machines.  The earlier clutches had larger diameter clutches and discs.  (9 1/8" or 231 mm for the lined disc) (8 5/8" or 220mm for the steel plate)  The later clutches had the small clutch discs.  (7 15/16" or 202mm lined friction discs) (7 1/2" or 190 mm steel separator plate)

Check your clutches closely.  You can often get by with only replacing the friction discs.  Use your best judgment for evaluating your steel plates.  You do not want to install plates that are rough and will accelerate the wear on your new fiber discs.  Clean them with wire brushes, sandblasting, or whatever it takes to get them as smooth as possible and then make your decision.  It is up to you of course, but unless you just like to pull wrenches, these steering clutches are not that much fun to have to remove and reinstall because you tried to save a hundred dollars.

              Free shipping in US only, Priority Mail or UPS Ground, on orders $500 or higher.

ORDERING INFO:
  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

FINAL DRIVE PINIONS      103-27-21210  D20/D21P-5     NEW  $285.00

EARLY STYLE DISCS

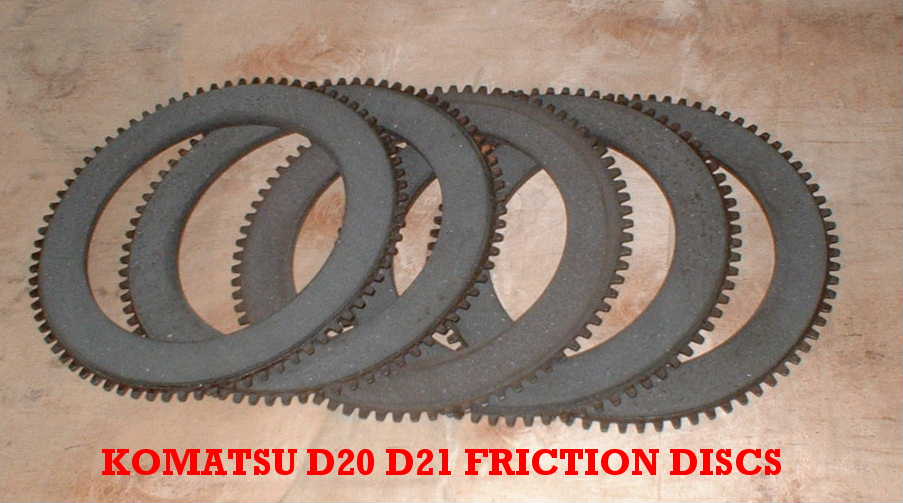

100-22-15101 or 100-22-15102  BIMETALLIC Friction discs  24.00 ea   LARGE O.D. 9 1/8"  (231mm)
  The early composite friction discs are upgraded to Bimetallic Frictions TO GET A SUPERIOR CLUTCH
 (check your manual, different models used different quantities)

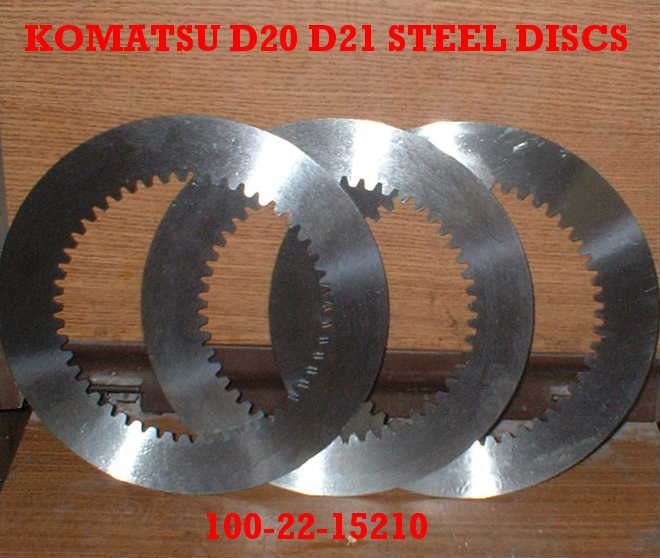

100-22-15210 Steel separator plates   18.40 ea  LARGE O.D. 8 5/8" (220 mm)
 (check your manual, different models used different quantities)


       NEW FINAL DRIVE PINIONS      103-27-21210   D20/D21P-5    NEW  $285.00

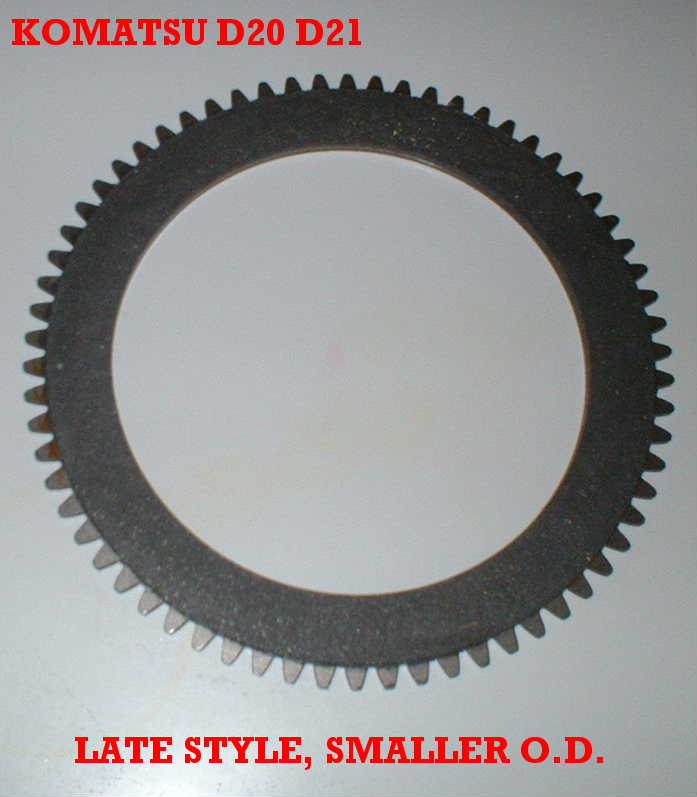

LATE STYLE DISCS ARE SMALLER for Series 6 and Newer

104-22-33321 Friction Discs 24.00 ea  ( 7 15/16" or 202mm) (Replaces earlier 103-22-31310)

     While we still have these in stock, we can not recommend their use.  They are made of organic material and are more susceptible to bonding, de-lamination, deterioration, and clutch failure.

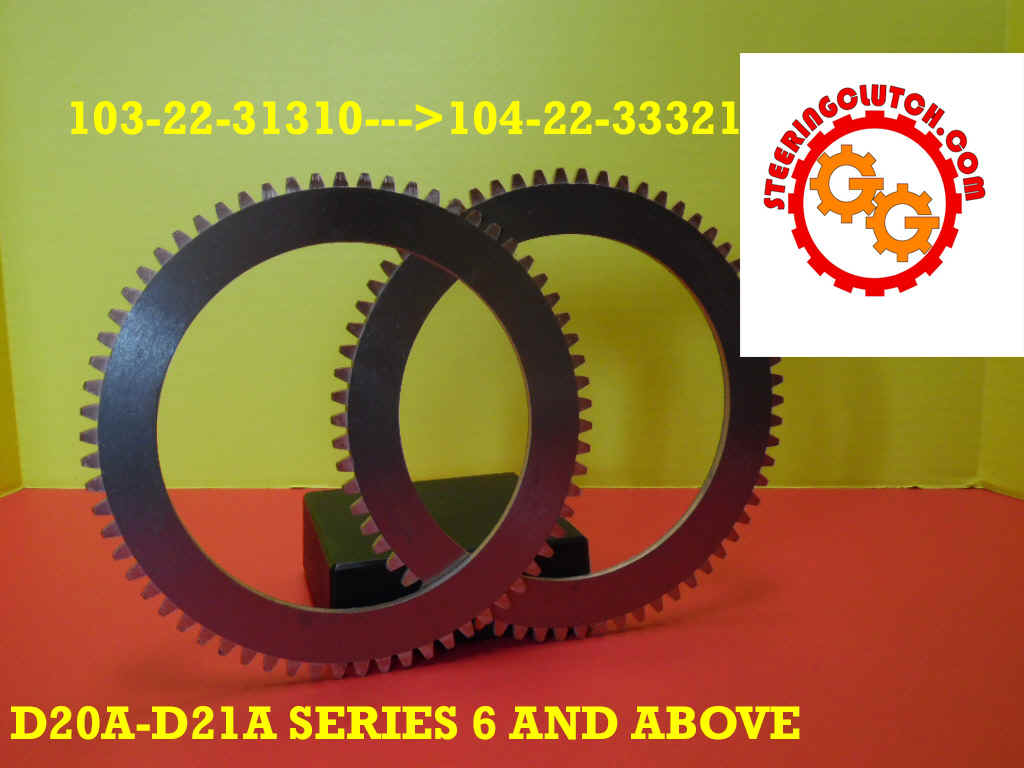

      NEW AND IN STOCK       104-22-33321 Friction Discs 24.00 ea  ( 7 15/16" or 202mm) HAVE BEEN UPGRADED AND IMPROVED  Now with bronze alloy friction surfaces which will increase durability, life-span, and an increased coefficient of friction of approsimately 3% (Replaces earlier 103-22-31310)    Friction Discs 24.00 ea

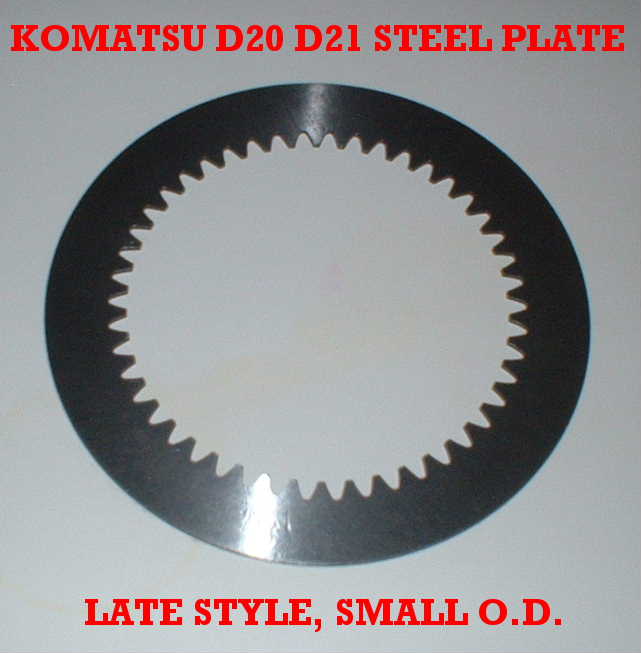

10E-22-21320 STEEL SEPARATOR PLATE 8.40 ea (7 1/2" or 190 mm)

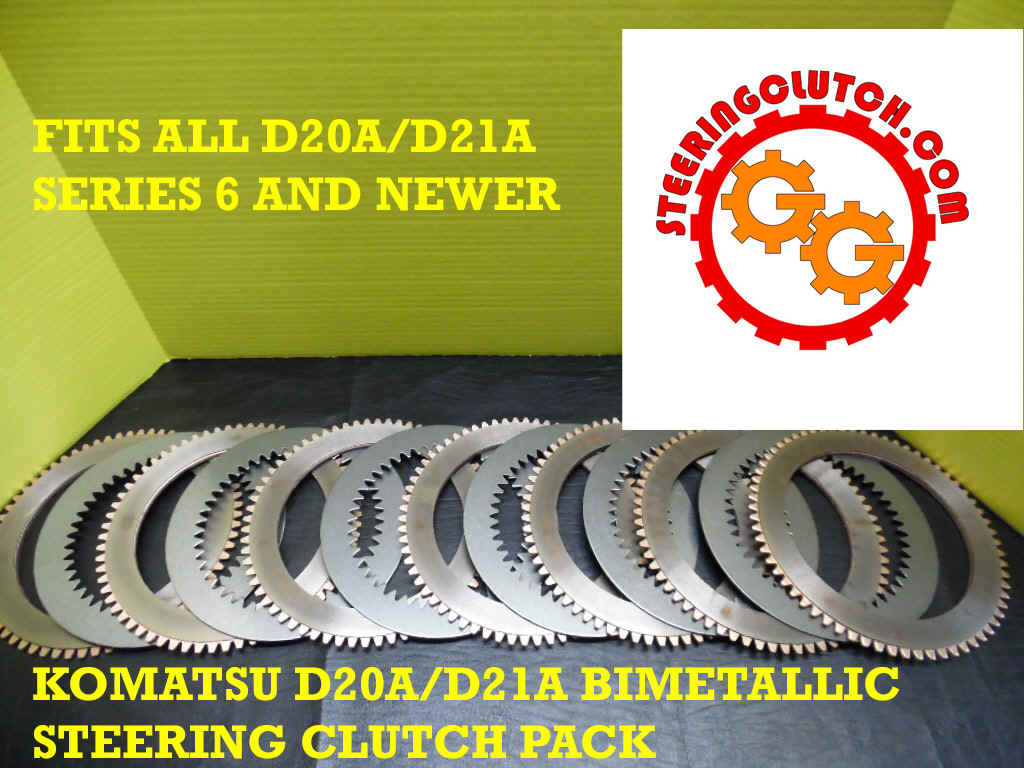

   A COMPLETE BIMETALLIC CLUTCH PACK WILL COST $218.40 PER SIDE

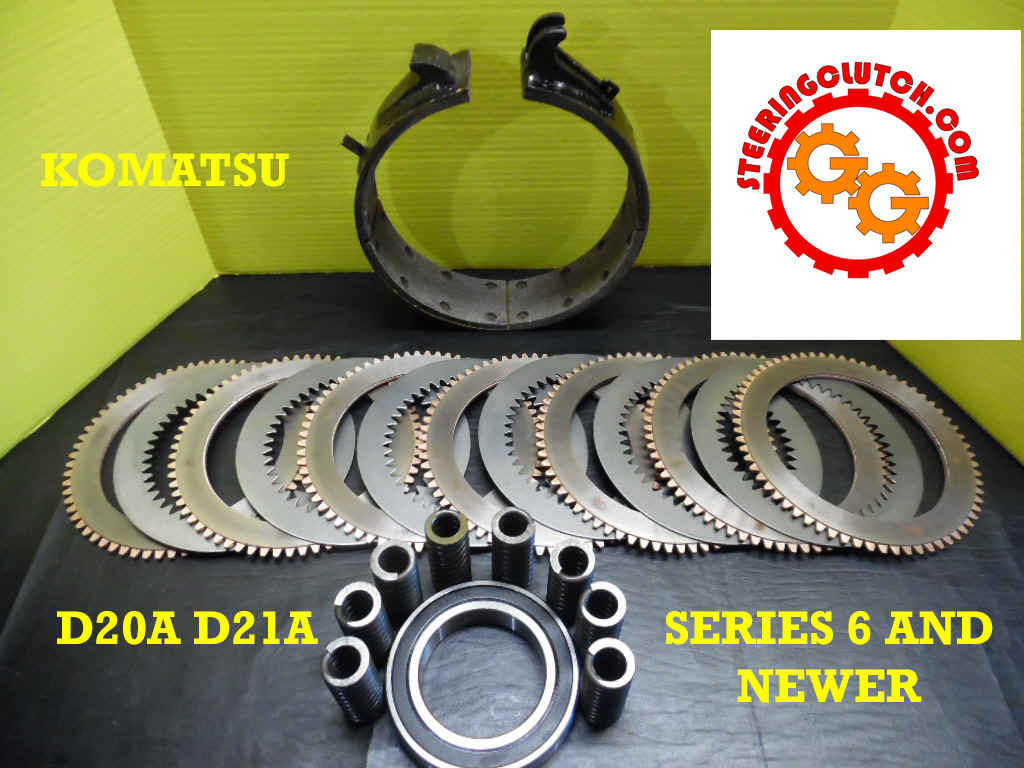

   A COMPLETE BIMETALLIC CLUTCH KIT WILL COST 439.00 PER SIDE

    NEW FINAL DRIVE PINIONS    103-27-31212  D20P/D21P-6 AND UP   $235.00 EA

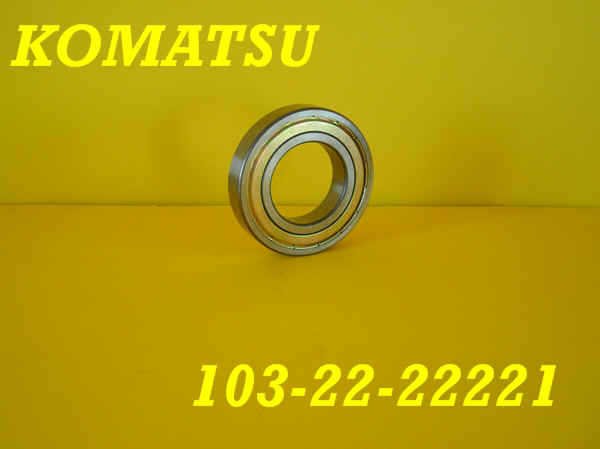

   FOR LATE STYLE CLUTCHES WITH SMALLER DISCS ...THROW-OUT BEARINGS   38.00 EA  P/N 103-22-22221

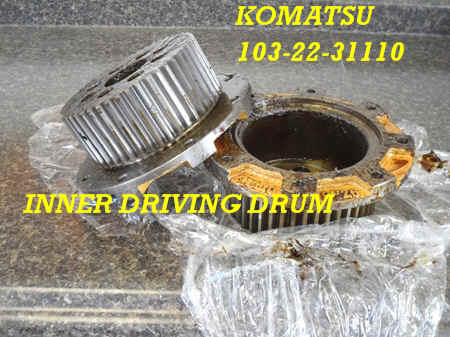

   FOR LATE STYLE CLUTCHES WITH SMALLER DISCS ...INNER DRIVING DRUMS 103-22-31110   $123.00 ea

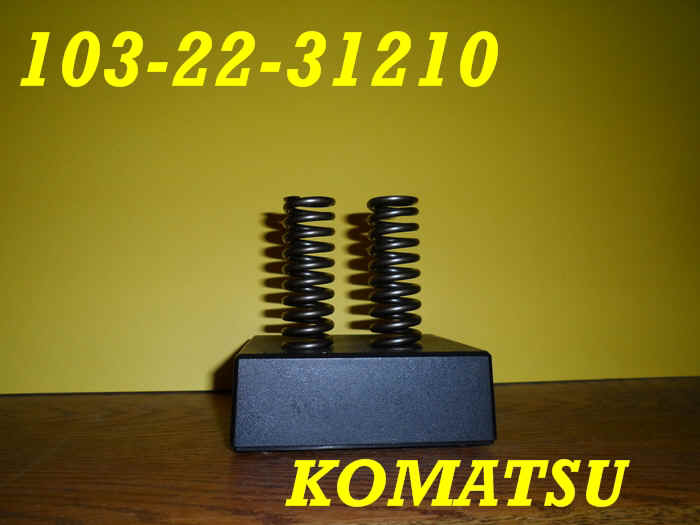

  FOR LATE STYLE CLUTCHES WITH SMALLER DISCS ..103-22-31210 STEERING CLUTCH SPRINGS
$9.00 EA OR SET OF 8 FOR $48.00

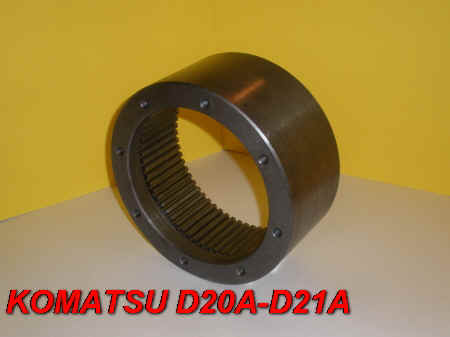

  NEW D20A-D21A BRAKE DRUMS, P/N 103-22-31131
FOR LATE STYLE SMALLER DISCS. ( WILL SHIP VIA PRIORITY MAIL)  168.00 ea

     FOR D20A-D21A FOR LATE STYLE D20A/21A MACHINES (FIT THE ABOVE BRAKE DRUMS)

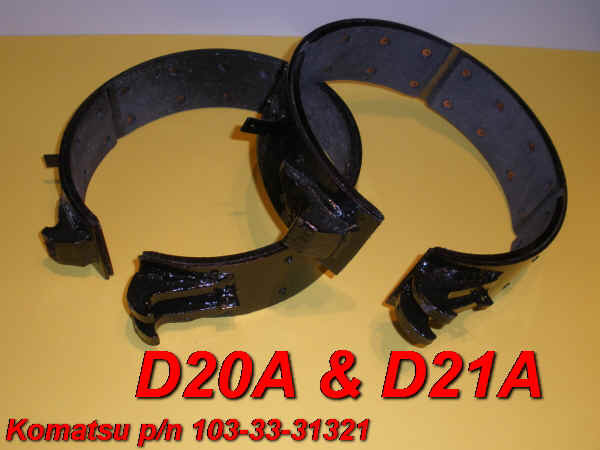

NEW BRAKE BAND WITH NEW LINING          (Priority Mail Shipping in US)     $165.00 ea

P/N 103-33-31321

PARTS MANUALS FOR KOMATSU-DRESSTA-DOOSAN    A good source to locate the parts information you may need is www.k-part.com    You have to sign in for access now but it is quick and simple.  The directory (LH Column) takes some getting used to until you discover the logic involved and then it becomes simple and intuitive.  You can easily locate, read, and print the parts pages that you may need or order complete manuals if you wish.  e.g. for your Komatsu dozer, select "Bulldozers" in the LH directory column.

SERVICE INTRODUCTION

Don Shilling put together a pictorial history of his steering clutch repair for the D20-D21A series 6-7 Komatsu that you may find helpful.   You can see his album and discussion on the Heavy Equipment discussion forum (CLICK HERE)

Click HERE to view all of our new steering clutch discs.


email steeringclutch@gmail.com  for orders or questions.


CONTACT OUR OFFICE at 1-208-342-8911

General Gear and Machine, 733 Desert Wind Rd., Boise, Idaho, 83716  US
*All prices are in USD & do not include shipping
All prices are for new aftermarket unless stated otherwise
All OEM part numbers are for references only
