The John Deere Model 450's ("plain"
model 450) originally used 8 fiber discs p/n T20716 and 7 steel separator plates p/n
T20717 (T31732). When later models were developed they used bimetallic discs to replace
the earlier style fiber discs. The bimetallic disc part number is T44129. The same numbers
of discs were used in all circumstances. Most of the time you can get by with only
changing the friction discs. The steel separator plates can usually be re-used. Check them
for roughness, warping, or dishing and if they are clean, smooth, and straight, by all
means re-use them! To help "steer" you
toward creating a superior steering clutch we wanted to encourage you to use the
bimetallic steering clutch discs and to eliminate the old style fiber friction discs. To
do this, we have discontinued the fiber friction discs to make sure you get a superior
clutch.
Because we have now eliminated our costs of buying and stocking the earlier style fiber
friction discs we were able to make the bimetallic friction discs in a larger less
expensive volume, letting us lower the bimetallic disc cost from $29.00 ea to $24.00 ea
When shopping for steering clutch
discs or packs of clutch discs many sellers do not advertise or really tell you what they
are selling! You will often discover, after you buy them, that the clutch pack of
discs being offered includes the inferior fiber friction discs and not the upgraded
bimetallic friction discs. We only sell the higher quality bimetallic friction
discs.
FOR PARTS AND SERVICE INFO SCROLL TO BOTTOM OF THIS PAGE.
 Free shipping in US only, Priority Mail or UPS Ground, on orders
$500 or higher.
ORDERING INFO:
 We can usually ship on the same day any items we have in stock
that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the
US you may call 1-800-531-9021 or if you are outside the US, 1 208 342 8911.
You may also email steeringclutch@gmail.com for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
FOR A WIDER SELECTION OF ALL OF
OUR DISCS MADE
FOR MANY OF THE JOHN DEERE MACHINES....CLICK HERE
T20716 fiber disc, new aftermarket, .....no
longer supplied...use Bimetallic

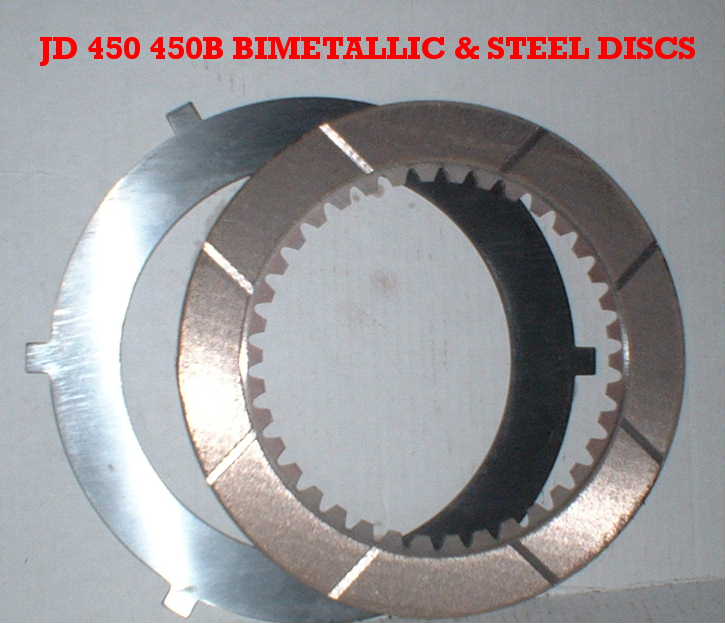

T44129 bimetallic disc, new aftermarket, NOW $24.00 ea

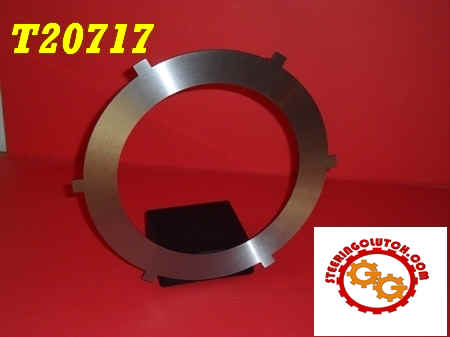

T20717 steel separator plates, new aftermarket, $17.00

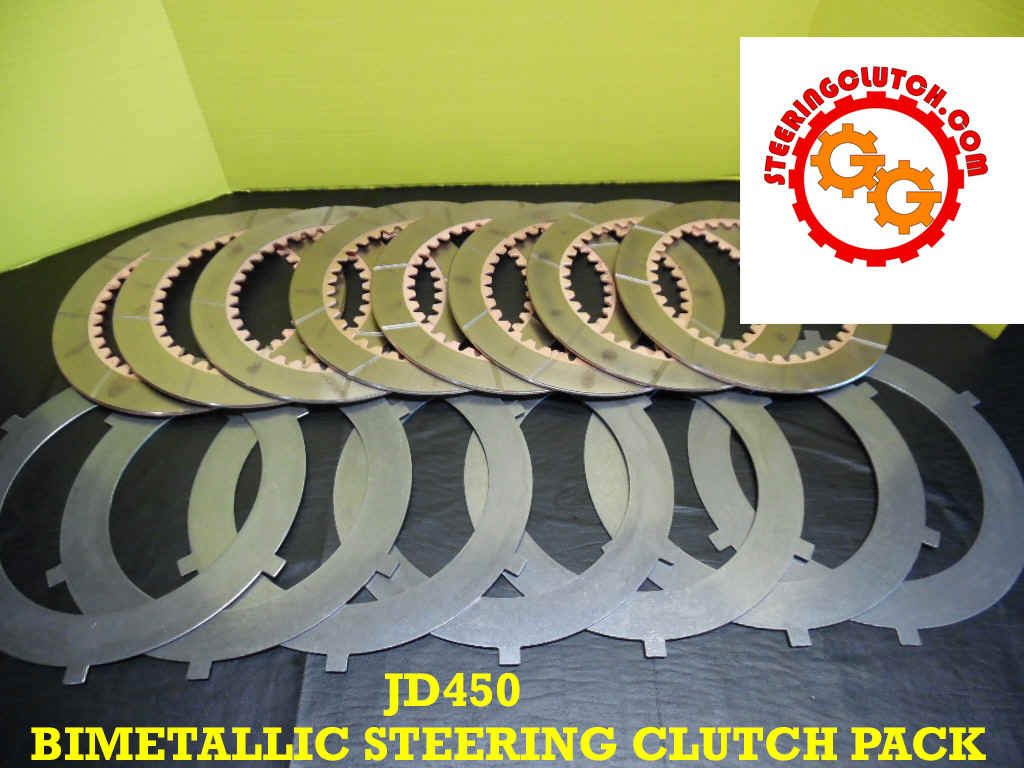

IF YOU DECIDE YOU NEED A COMPLETE CLUTCH PACK....
8 BIMETALLIC AND 7 STEEL SEPARATOR PLATES...TOTAL $311.00 PER SIDE
When
shopping for steering clutch discs or packs of clutch discs many sellers do not advertise
or really tell you what they are selling! You will often discover, after you buy
them, that the clutch pack of discs being offered includes the inferior fiber friction
discs and not the upgraded bimetallic friction discs. We only sell the higher
quality bimetallic friction discs. There are also different definitions of what a

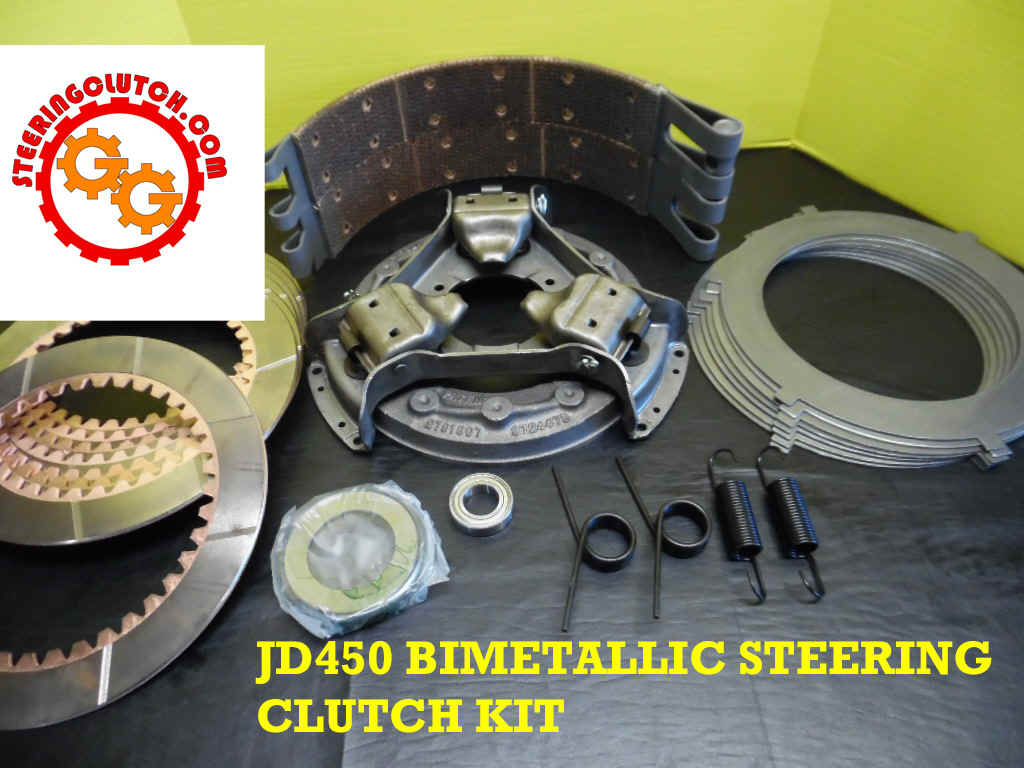

clutch kit might be! Our kit includes the bimetallic clutch pack of 8 bimetallic
frictions, 7 steel separator plates, brake band return springs,the throwout return
springs, the throw-out bearings, pilot bearings, brake band and pressure plate. You
can click on the picture below to increase the image size.
TOTAL COST FOR ONE KIT
WOULD BE $841.00
T44129 BIMETALLIC FRICTION DISCS 24.00 EA Will work for dry type or
oil type cteering clutches. Some
users prefer the paper over the bimetallic and some prefer bimetallic over paper faced
discs. We provide both options. See below for paper option for oil type clutches.
 T82355 FRICTION DISCS, PAPER FACED. Some users prefer the paper over the bimetallic and some
prefer bimetallic over paper faced discs. We provide both options. PAPER
FACED $27.00 EA
The T20717 steel separator plates are often confused with the T31732 plates used in the
later steering clutches. To be sure which plates you have in your clutch the
thickness should be measured. The T20717 will measure closer to .087- .09 while the
later discs will be closer to .097-.099. If the quantity of your discs varies from
what is normally required, it is usually caused by the mis-use of the wrong steel
separator plates. The JD 450B used the thicker plates.

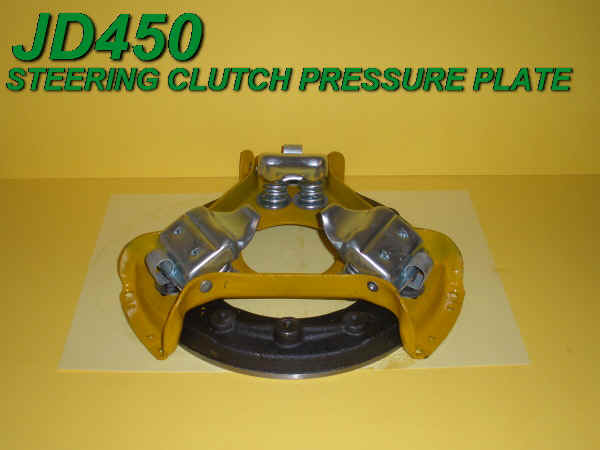

 To complete your repair of the JD450 steering clutch, we have produced NEW steering clutch pressure plates, complete with mounting cover,
springs and levers.
AT18416
285.00 ea
JD450 New Steering Clutch Throw Out bearing AT17464 (EARLY P/N AT13012)
$25.00 ea
 Brake band, two
pieces, upper and lower, new bands with new linings, both halves for a complete brake
band.
AT129806 & AT129807 replaces earlier AT18420/AT18418 and AT86899/AT86898
................. Complete 2 piece band @ $195.00
We ordered enough of these in volume to keep the cost down to make the brake band
competitive with relining your own band. This will speed up your repair and cut your
costs by having them ready to install. To read more about these brake bands CLICK
HERE
BRAKE BAND LINING KITS, COMPLETE w/
RIVETS FOR 2 PCE BRAKE BAND $65.00
You will have to heat the earlier style bands, scrape and power brush the off the old
glued on linings if you have the glued on linings. Because later brake bands, if
upgraded to the riveted on linings, they will be inconsistent in the placement of rivets.
For this reason these linings are not yet countersunk for the rivets.
 BRAKE BAND RETAINER SPRINGS T23861 $16.00 EA OR
SET OF (2) @ 25.00
Also fits 450A,B,C's 550A,B,C's RELATED TRACK LOADERS 455'S , 555'S and more.
 STEERING CLUTCH
CONTROL SHAFT SPRING T24433 NEW 14.00 ea
OR SET OF (2) @ 20.00/SET
 JD450

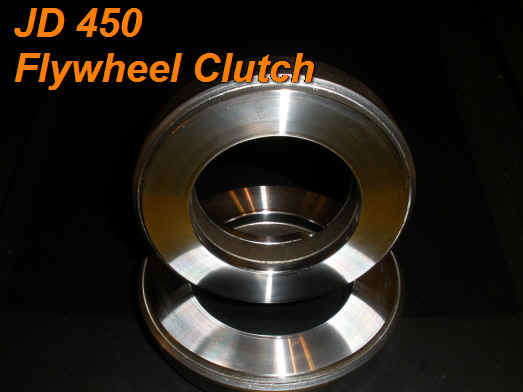

New Flywheel Clutch Throw Out Bearing $25.00 ea P/N AM3983
 JD9326 STEERING CLUTCH PILOT BEARING $4.00 (ONE
USED PER CLUTCH)
Flywheel clutch pressure plate AT25817 or AT43120
AT104345 or AT30757 or AT35213 or AT17766 ............ NEW
255.00 11"
also fits 450B, 450C, 450D, 450E
Flywheel clutch driven member (lined cluch disc) AT21500 or
AT18548 or AT141683..............new 221.00
STEERING CLUTCH TOOL
When putting your clutch together it is important to get the throwout bearing close to the
3 clutch release levers. JD makes a tool for this but as you have probably
discovered they do not sell the tool, and asking to borrow one, if they even have it,
well.....you are better off writing a letter to Santa. Luckily, Grimy Men stick together and help each
other......You can download a drawing of the tool from our website (CLICK HERE).
If you can print the file on 8 1/2 x 14 legal size paper you will have a good
pattern to get you going. You can get fancy or just make the tool from a manila
folder, cardboard, foam board, or whatever is handy.
Using the above tool, you can follow the workings of a
fellow Grimy Man who has sent some pictures
and narrative on how he worked out the clutch adjustment. This may help you in your
steering clutch adjustments. (CLICK
HERE FOR Randy Mcmillian's hints) Pictures below
JD450
STEERING CLUTCH AND FINAL DRIVE PARTS
JD450
STEERING CLUTCH SERVICE INFO When assembling the steering clutch,
BE SURE you place one friction disc
underneath the retaining ring on the inner hub.
JD_450_CRAWLER_STRRG_CL_TROUBLESHOOTING
IDENTIFYING YOUR
JD450-450B-450C You will find different
serial number locations on different models of the JD450 series of crawlers. Below
are some files showing you where to look for your serial number and what they mean when
you find them.
JD450
JD450B
JD450C
Click HERE to view all of our new steering clutch
discs.
|
|
for orders or
questions.
T82355 FRICTION DISCS, PAPER FACED. Some users prefer the paper over the bimetallic and some
prefer bimetallic over paper faced discs. We provide both options. PAPER
FACED $27.00 EA
The T20717 steel separator plates are often confused with the T31732 plates used in the
later steering clutches. To be sure which plates you have in your clutch the
thickness should be measured. The T20717 will measure closer to .087- .09 while the
later discs will be closer to .097-.099. If the quantity of your discs varies from
what is normally required, it is usually caused by the mis-use of the wrong steel
separator plates. The JD 450B used the thicker plates.
