The John Deere crawler models MC, 420, 430,
440, and 1010 use the same fiber discs and steel separator plates.
The JD MC crawler uses qty 6 of the friction discs and 5 of the steel separator plates
The JD420 & 430 crawlers used different numbers of plates depending on their
serial numbers. On those machines Serial # 158041 and below the
clutches used 7 fiber discs and 6 steel separator plates in each clutch.
On Serial # 158402 and up, the 420 and the 430 used 8 fiber discs and 8
steel separator plates per clutch. We also carry the shuttle clutch
discs for the JD420, JD430, and JD440.
(AT10438 & T10578)
The JD440 crawlers with a serial number up thru 455632 used 7 fiber discs p/n M3293 and 6
steel discs p/n AM984, replaced by the M872 .
The JD440 crawlers serial number 455633 and up used 8 fiber discs M3293 and 8 steel discs
AM984 replaced by M872.
The JD1010 crawlers used 8 fiber discs in all the serial number ranges. From serial number
1 thru 31000 quantity 8 steel plates, p/n M872 were used and above that serial number,
quantity 7 steel plates were used.
 In US
only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.
ORDERING INFO:
 We
can usually ship on the same day any items we have in stock that do not have to be pulled
from a machine. We are set up to offer the payment choices of either Visa, Master
Card, or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the US you may call 1-800-531-9021 or if you are
outside the US, 1 208 342 8911. You may also email steeringclutch@gmail.comfor orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
FOR A WIDER SELECTION OF
ALL OF OUR DISCS MADE FOR MANY OF THE JOHN DEERE MACHINES....CLICK HERE
JD MC
The JD MC originaly used 6 fiber friction discs and 5 steel separator plates. Because
of changes over the years, primarily in the thickness of the fiber frictions, a different
number may be required. As a general rule, stack height should be the height of the
inner hub whether it is the M873T or the M1618T hub.
*********M3293 fiber discs, we have
discontinued because the bimetallic clutch packs are so much better. We will no
longer sell the inferior fibers. When you compare the "other" clutch packs
and clutch kits, they are probably selling you the fiber frictions. We only sell the
superior clutch packs and clutch kits.************

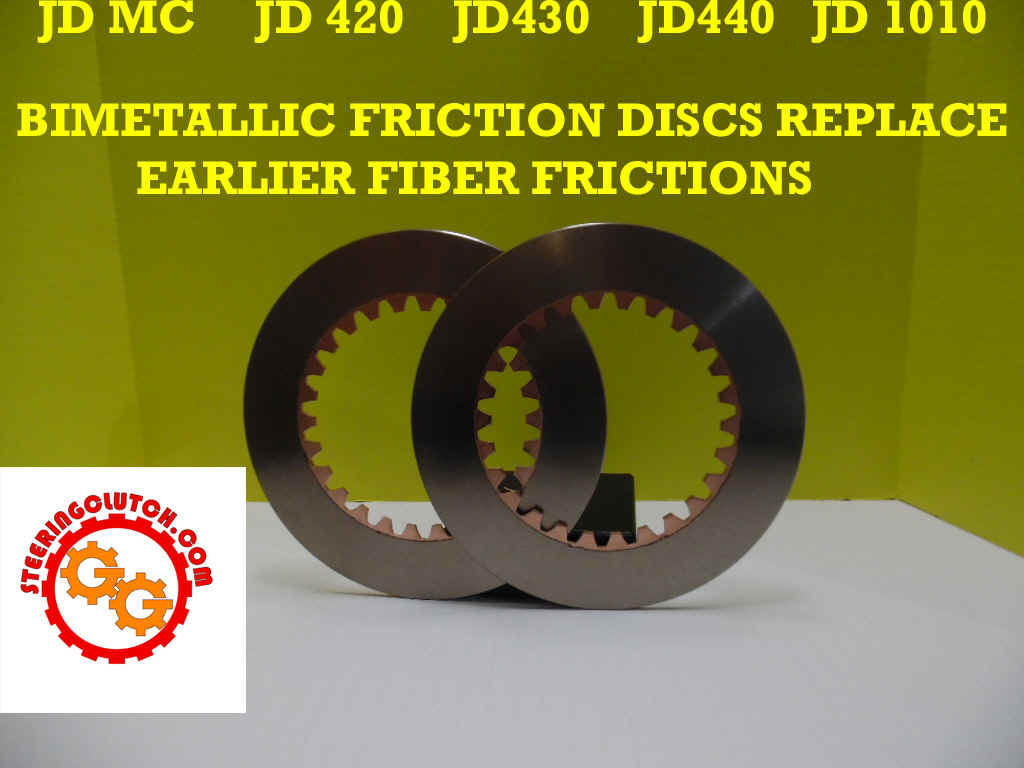

Bimetallic friction discs are
available. These discs will have steel teeth and bronze friction surfaces. Expect
longer duty life, no broken teeth, and approximately 3% higher coefficient of
friction.
 BIMETALLIC FRICTION DISCS ORDER M3293BM
24.00 ea
 AM984/M872
steering clutch steel separator plates, new @ 16.00 ea

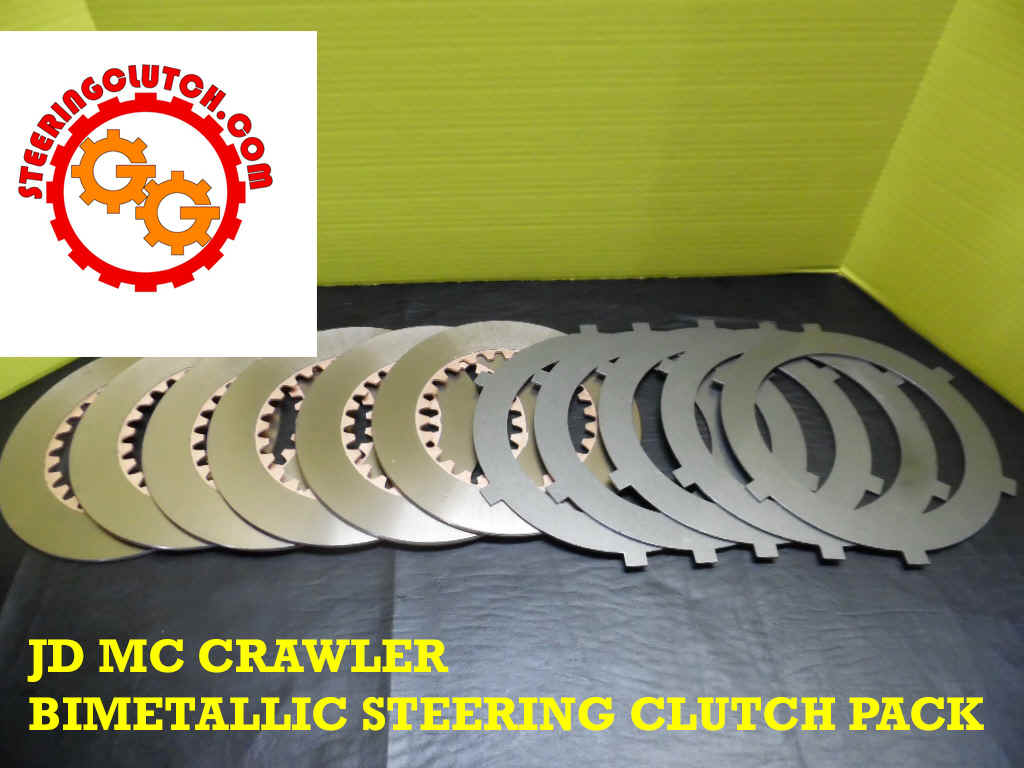

One complete JD Model
MC bimetallic clutch pack of 6 bimetallic friction discs and 5 steel plates has a cost of
$224.00

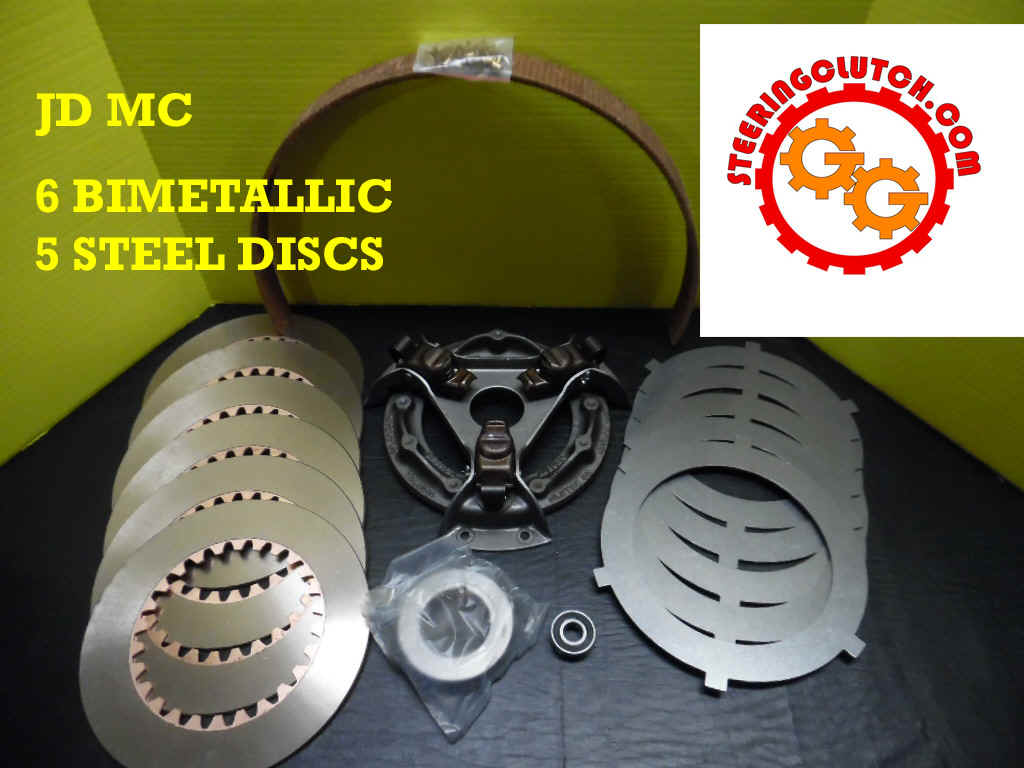

 JD MC STEERING CLUTCH KIT OPTION A 6 bimetallic frictions, 5 steels,
PressurePlate Assy, throwout bearing, pilot bearing and brake band LINING KIT.
479.00

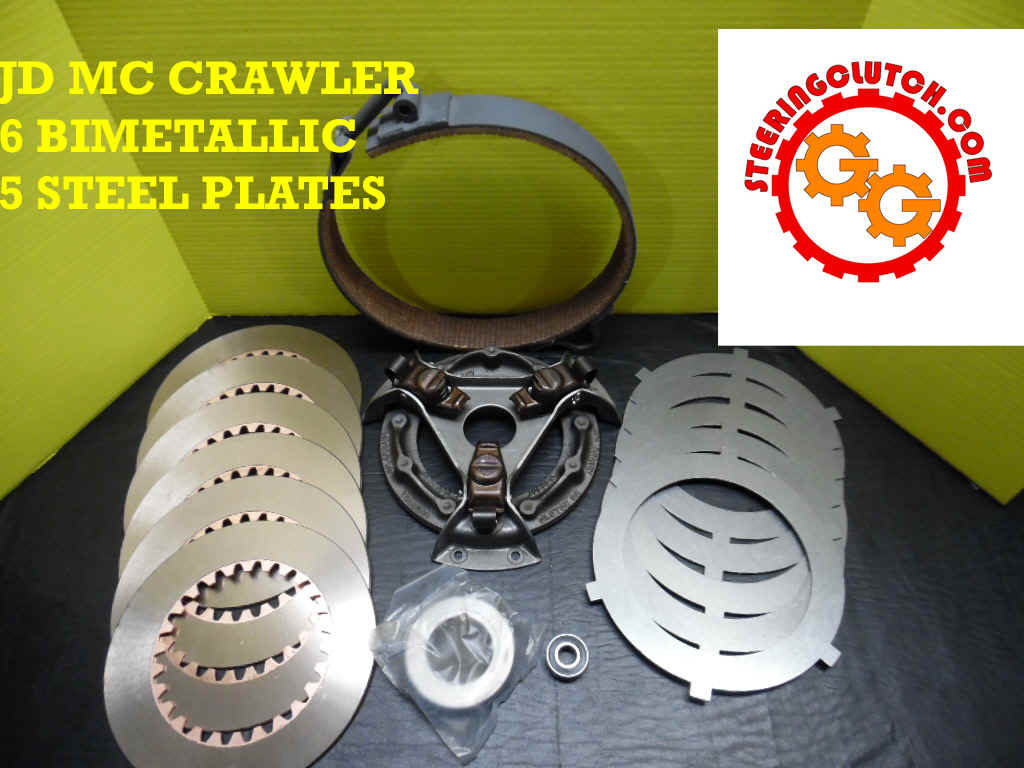

 JD MC STEERING CLUTCH KIT OPTION B
6 bimetallic frictions, 5 steels, PressurePlate Assy, throwout bearing, pilot
bearing and COMPLETE BRAKE BAND. 617.00
 JD MC New Steering Clutch Throw Out
Bearing AM3983
15.00 ea
JD MC New Steering Clutch Pilot Bearing JD8567
7.85 ea

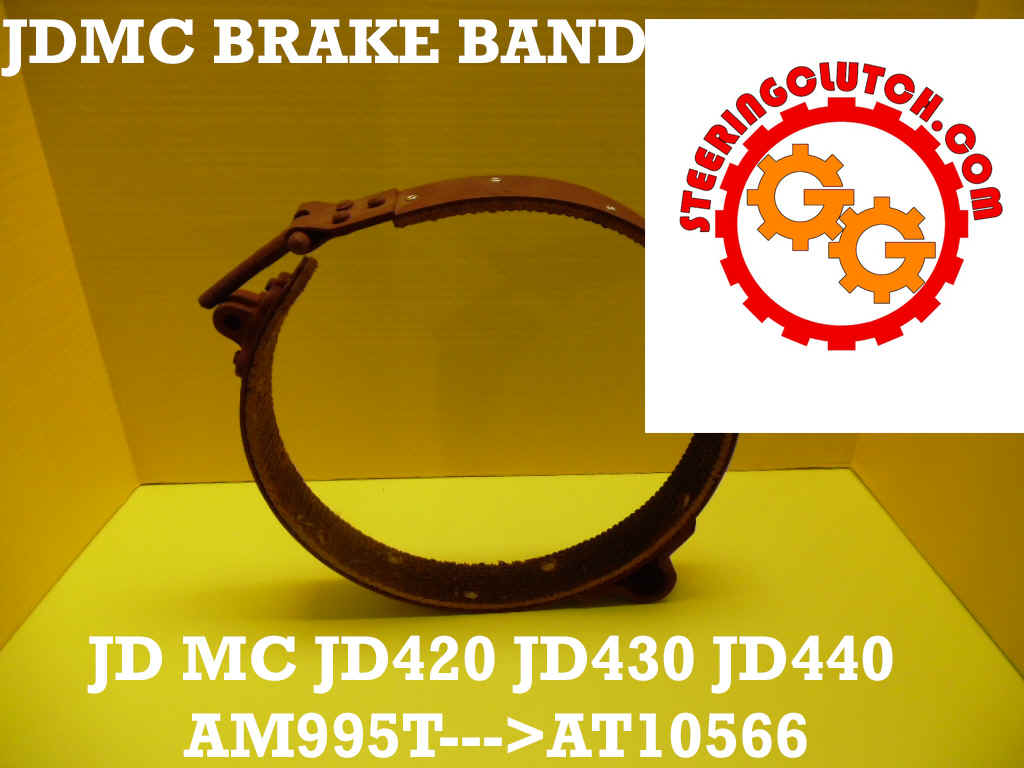

 NEW JD MODEL MC BRAKE BAND W/ NEW LINING 168.00 ea
AT10566
REPLACES THE EARLIER AM995T
 JD MC LINING KIT, INCLUDING RIVETS,
60.00 ea
 JD MC New Steering
Clutch Pressure Plate AT11853--->AT16121 NEW...NO CORE CHARGE AND NO
EXCHANGE $225.00
Replaces earlier part numbers AM1930T or AM987T
JD420
The JD420 crawlers used different
numbers of plates depending on their serial numbers. On those machines Serial #
158041 and below the clutches used 7 fiber discs and 6 steel separator plates in each
clutch.
On Serial # 158402 and up, the 420 used 8 fiber discs and 8 steel plates per clutch.
*********M3293 fiber discs, we have discontinued because the bimetallic
clutch packs are so much better. We will no longer sell the inferior fibers.
When you compare the "other" clutch packs and clutch kits, they are
probably selling you the fiber frictions. We only sell the superior clutch packs and
clutch kits.************
Bimetallic friction discs are now
available. These discs will have steel teeth and bronze friction surfaces. Expect
longer duty life, no broken teeth, and approximately 3% higher coefficient of
friction.
BIMETALLIC FRICTION DISCS ORDER M3293BM 24.00 ea
AM984/M872
steering clutch steel separator plates, new @ 16.00 ea

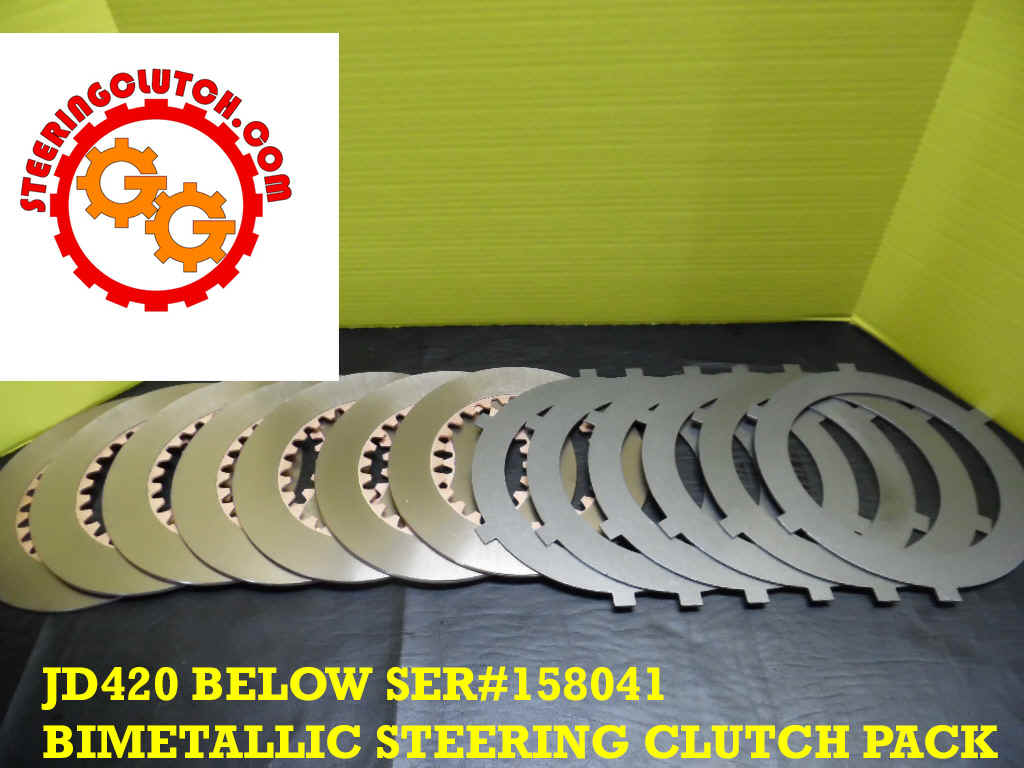

 JD 420 COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#158041 HAS
A COST OF $264.00 (7 FRICTION AND 6 STEEL)

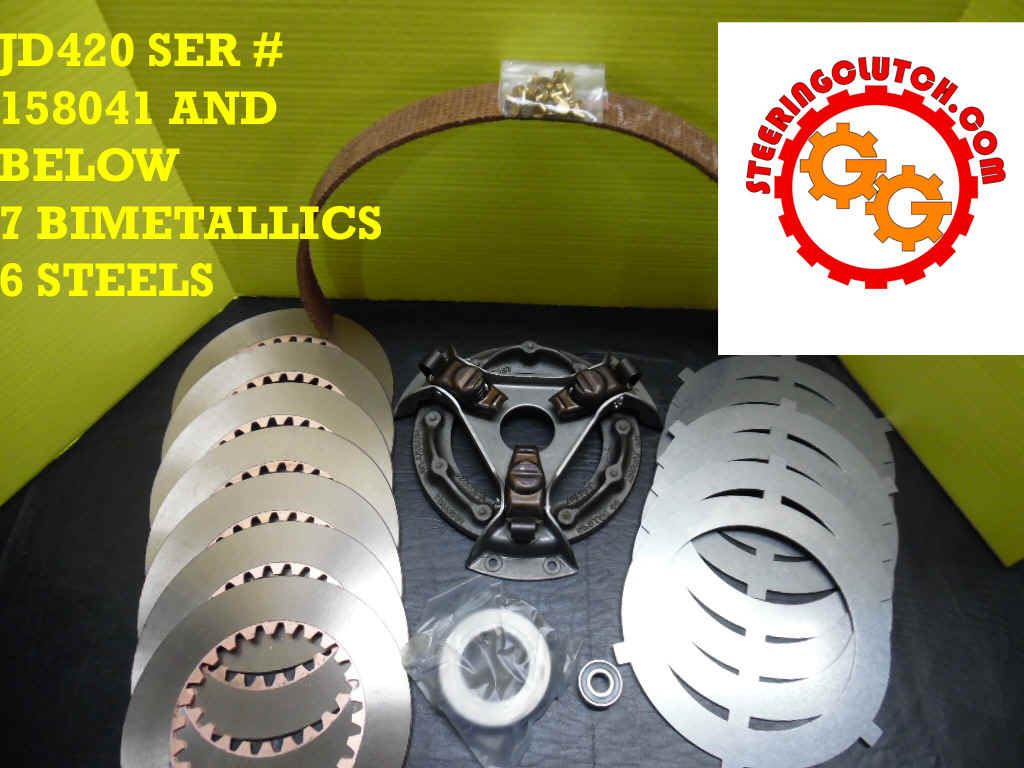

 BELOW SER#158041 JD 420 STEERING CLUTCH KIT OPTION A
7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot
bearing and brake band lining kit. 519.00

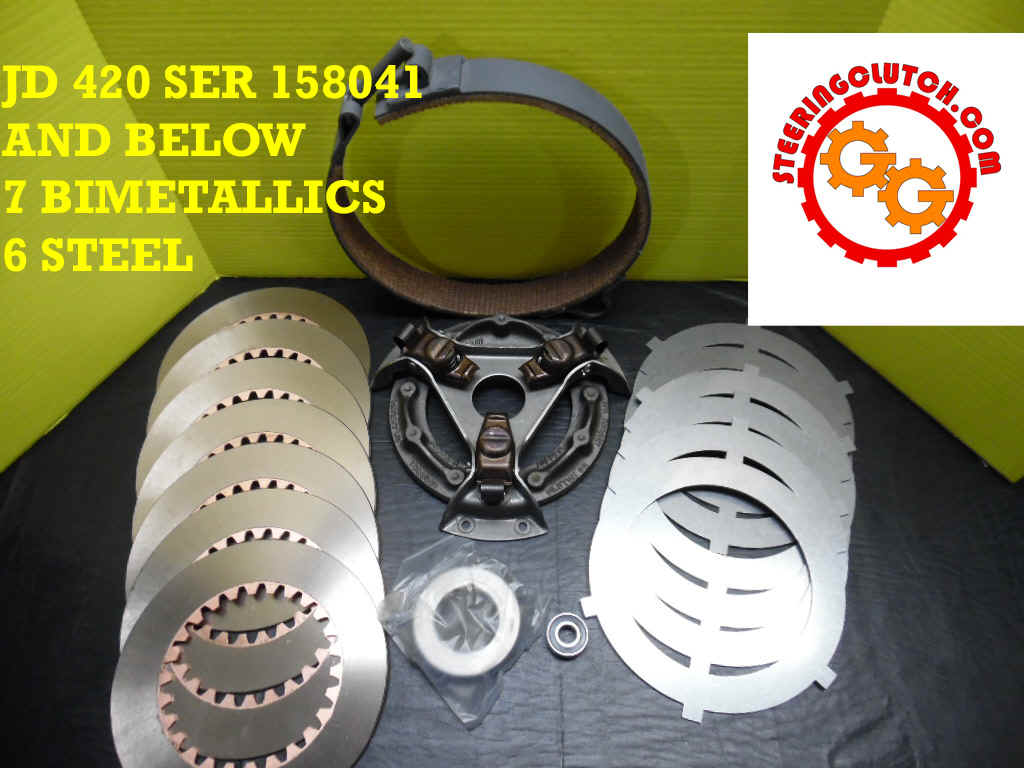

 BELOW
SER#158041 JD 420 STEERING CLUTCH KIT OPTION B 7 bimetallic frictions, 6 steels,
PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE BRAKE BAND. 657.00
 JD 420 COMPLETE BIMETALLIC STEERING CLUTCH PACK
ABOVE SER#158042 HAS A COST OF $320.00 (8 FRICTION AND 8 STEEL)
 ABOVE SER#158041

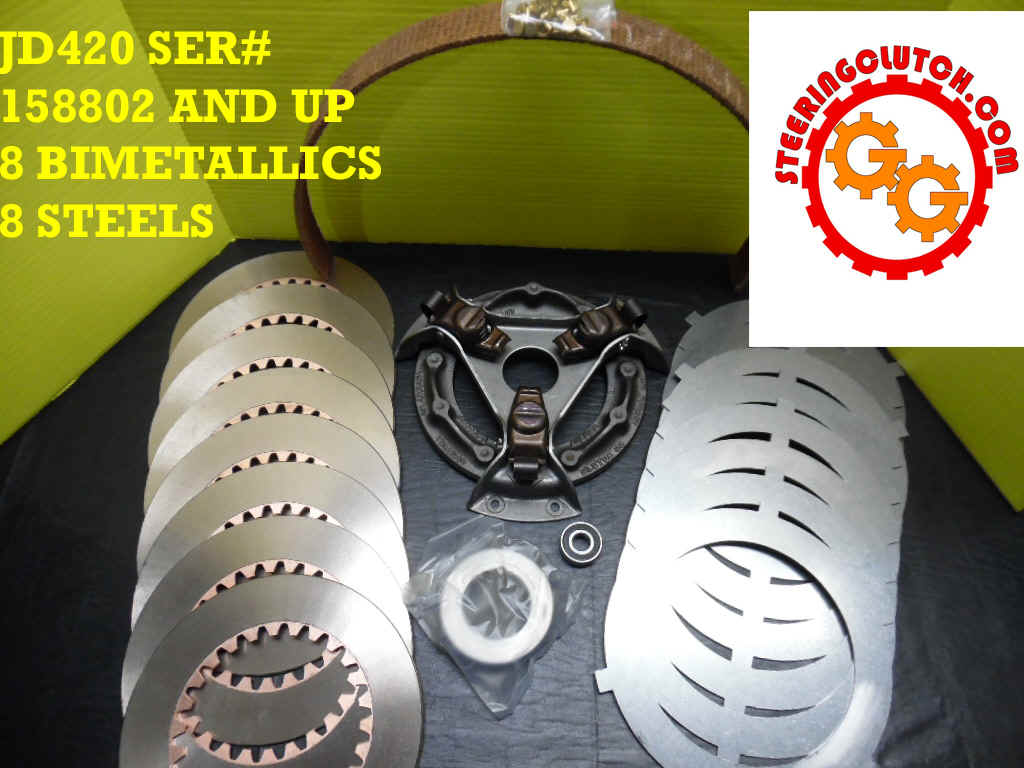

JD 420 STEERING CLUTCH KIT OPTION A 8 bimetallic
frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band
lining kit. 575.00

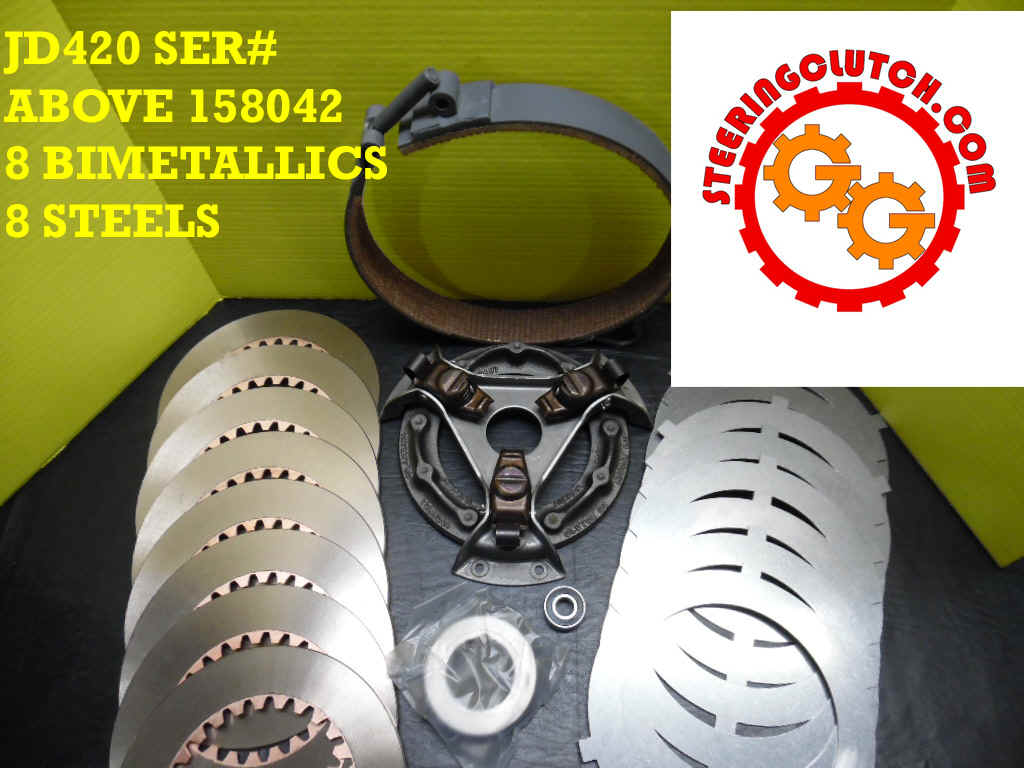

 ABOVE SER#158041 JD 420
STEERING CLUTCH KIT OPTION B 8 bimetallic frictions, 8 steels, PressurePlate
Assy, throwout bearing, pilot bearingand COMPLETE BRAKE BAND 713.00

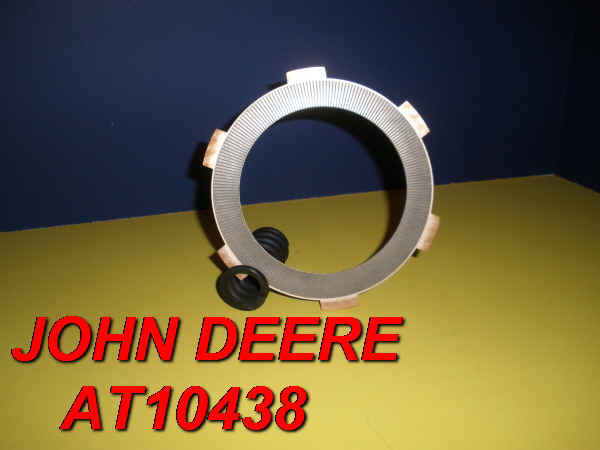

For the JD420 we have also produced the SHUTTLE
CLUTCH DISCS
 ....AT10438
$29.00 EA
 ....T10578
$17.00 EA
JD420 New Steering Clutch Throw Out
Bearing AM3983
15.00 ea
JD420 New Steering Clutch Pilot Bearing JD8567
7.85 ea

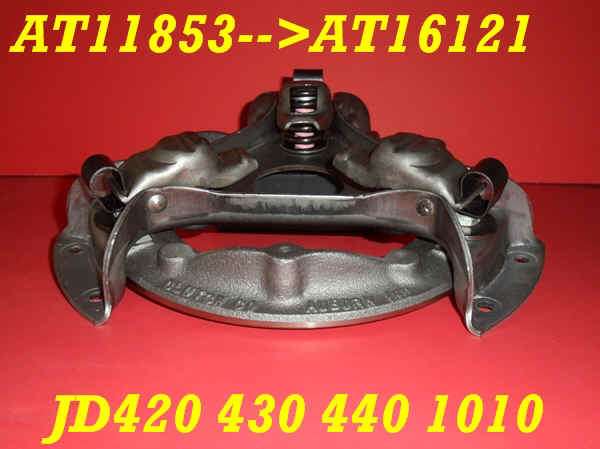

JD420 New Steering
Clutch Pressure Plate AT11853--->AT16121 NEW...NO CORE CHARGE AND NO
EXCHANGE $225.00
 NEW JD 420 BRAKE BAND W/ NEW LINING 168.00 ea
AT10566
REPLACES THE EARLIER AM995T
JD420 LINING KIT, INCLUDING RIVETS,
60.00 ea
JD430
The 430 crawlers used different numbers of
plates depending on their serial numbers. On those machines Serial # 158041 and
below the clutches used 7 fiber discs and 6 steel separator plates in each clutch.
On Serial # 158402 and up, the 430 used 8 fiber discs and 8 steel plates per clutch.
*********M3293 fiber discs, we have discontinued because the bimetallic clutch
packs are so much better. We will no longer sell the inferior fibers. When you
compare the "other" clutch packs and clutch kits, they are probably selling you
the fiber frictions. We only sell the superior clutch packs and clutch
kits.************
Bimetallic friction discs are now
available. These discs will have steel teeth and bronze friction surfaces. Expect
longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.
BIMETALLIC FRICTION DISCS ORDER M3293BM
24.00 ea
AM984/M872 steering clutch steel separator plates,
new @ 16.00 ea
 JD 430 COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#158041 HAS
A COST OF $264.00 (7 FRICTION AND 6 STEEL)

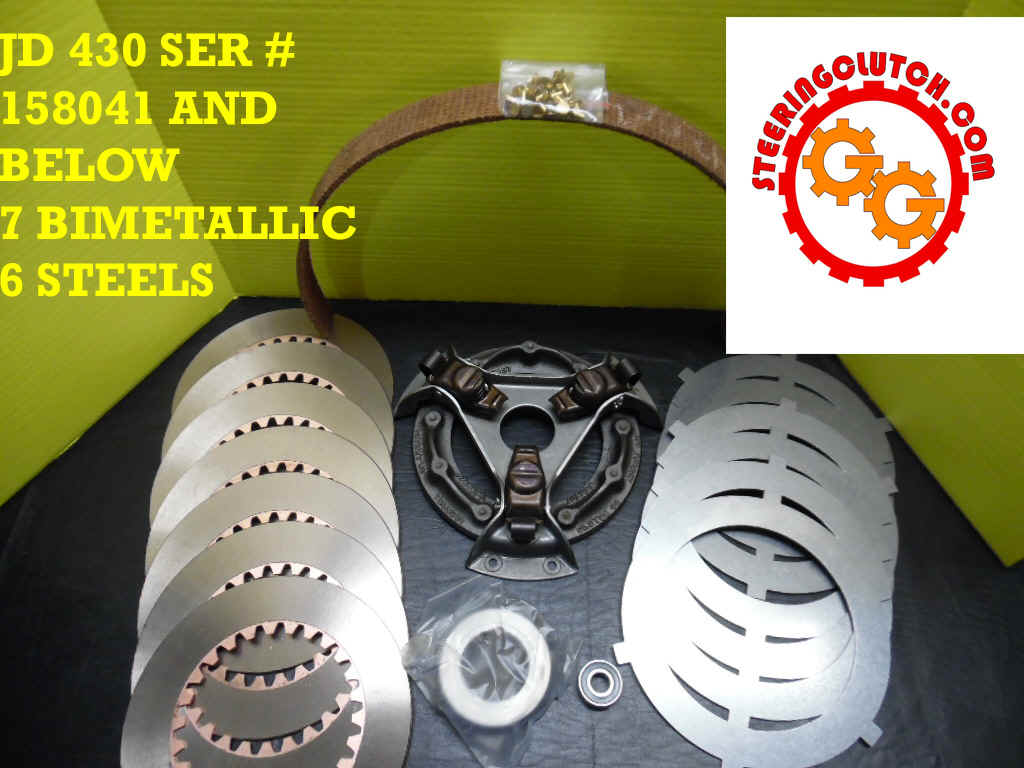

 BELOW
SER#158041 JD 430 STEERING CLUTCH KIT OPTION A 7 bimetallic frictions, 6 steels,
PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.
519.00

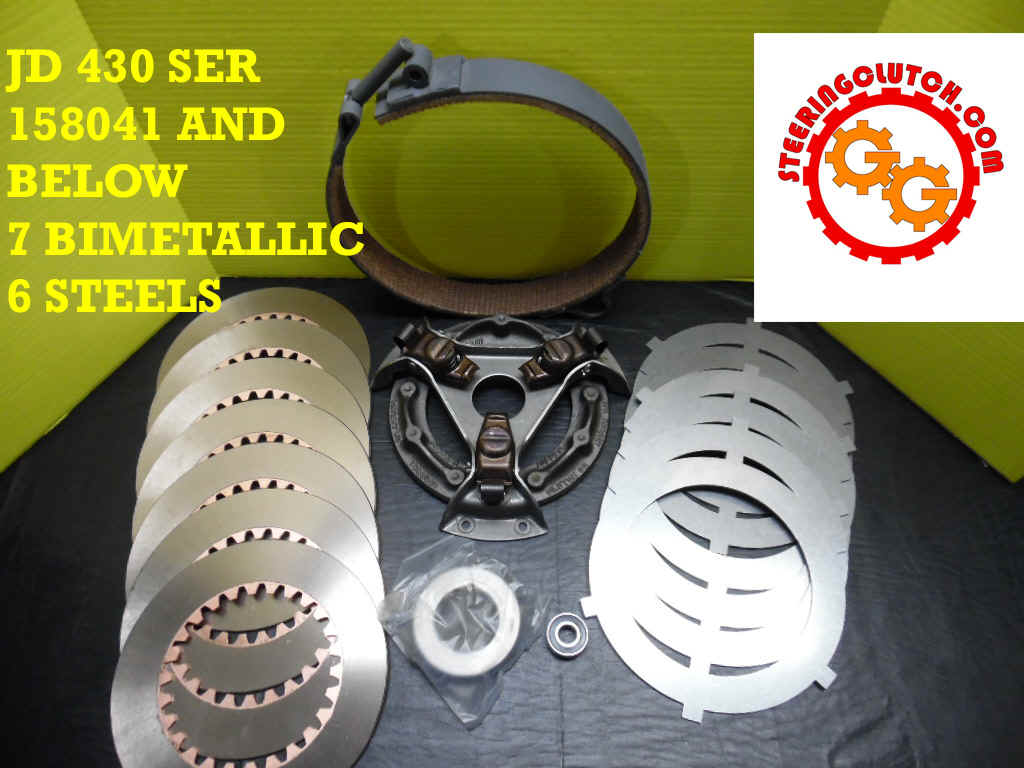

 BELOW
SER#158041 JD 430 STEERING CLUTCH KIT OPTION B 7 bimetallic frictions, 6 steels,
PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE BRAKE BAND. 657.00
 JD
430 COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE SER#158042 HAS A COST OF $320.00
(8 FRICTION AND 8 STEEL)

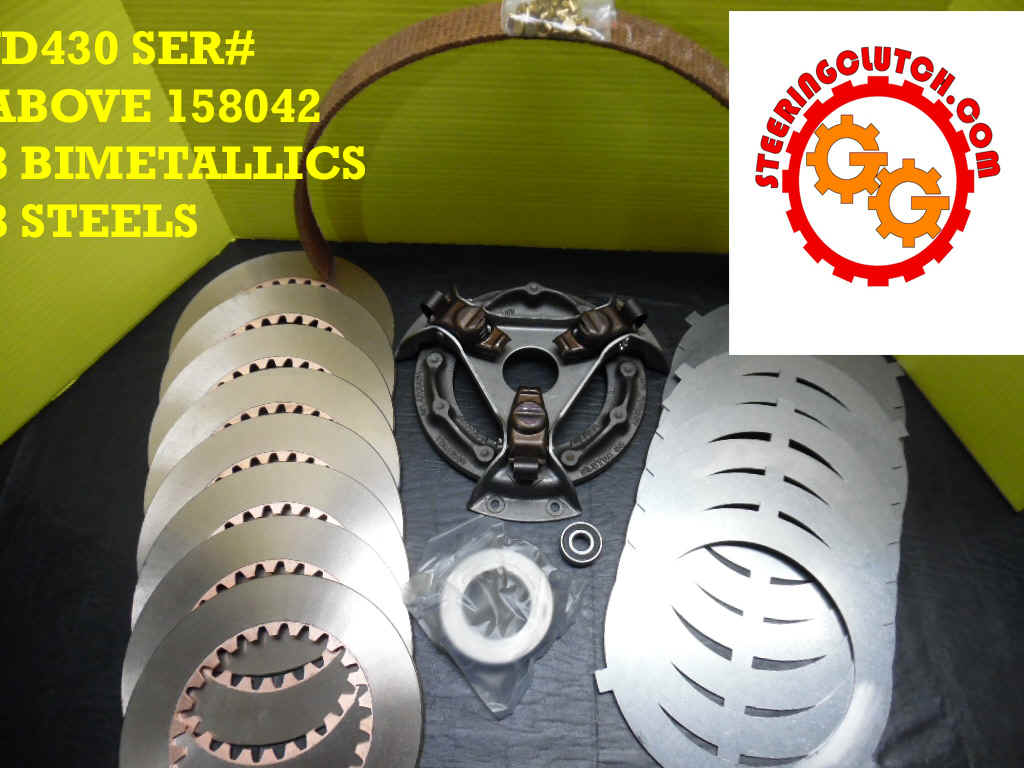

 ABOVE SER#158041 JD 430
STEERING CLUTCH KIT OPTION A 8 bimetallic
frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band
lining kit. 575.00

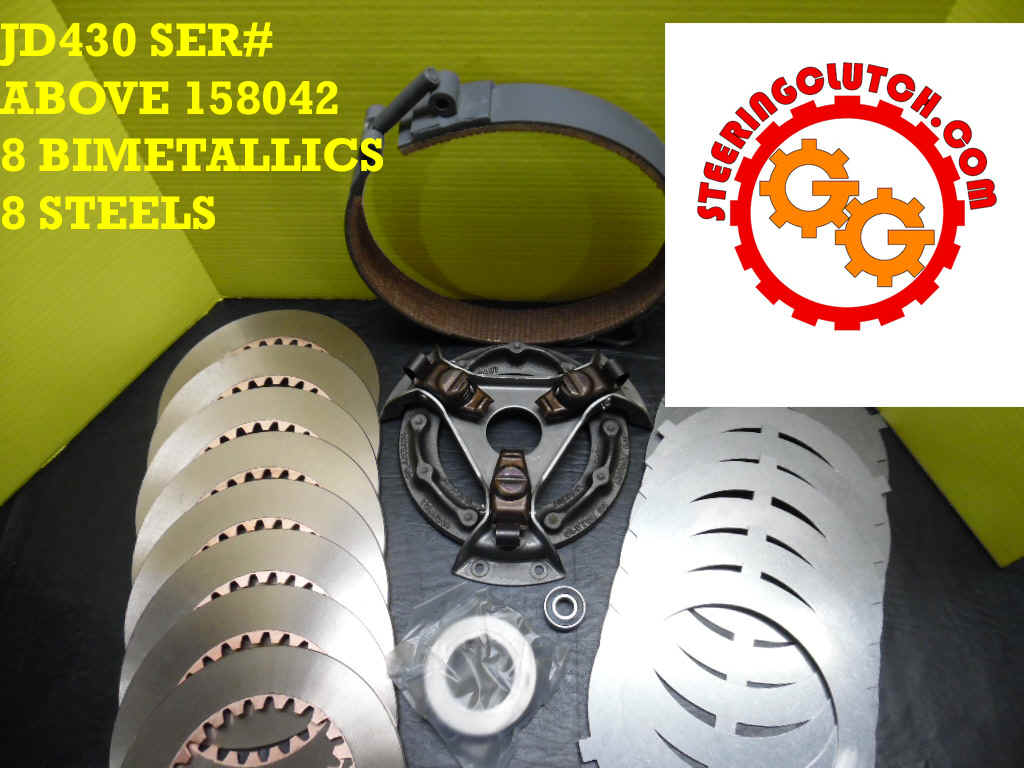

 ABOVE SER#158041 JD 430
STEERING CLUTCH KIT OPTION B 8 bimetallic frictions, 8 steels, PressurePlate
Assy, throwout bearing, pilot bearingand COMPLETE BRAKE BAND 713.00

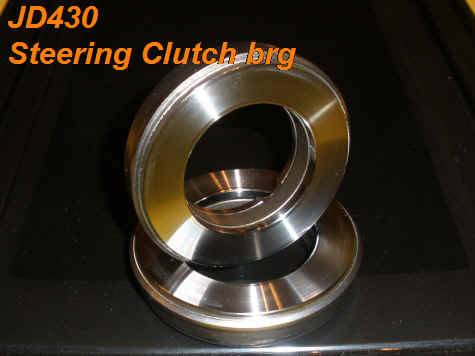

 JD 430 New Steering Clutch
Throw Out bearing AM3983 15.00 ea
JD430 New Steering Clutch Pilot Bearing JD8567
7.85 ea
JD430 New Steering
Clutch Pressure Plate AT11853--->AT16121 NEW...NO CORE CHARGE AND NO
EXCHANGE $225.00
 NEW JD 430 BRAKE BAND
W/ NEW LINING 168.00 ea
AT10566
REPLACES THE EARLIER AM995T
JD430 LINING KIT, INCLUDING RIVETS,
60.00 ea
For the JD430 we have also produced the SHUTTLE CLUTCH DISCS
....AT10438
$29.00 EA Shuttle clutch bimetallic friction
....T10578
$17.00 EA Steel separator plates
JD40C/JD440
The JD440 crawlers with a serial number up thru
455632 used 7 fiber discs p/n M3293 and 6 steel discs p/n AM984, replaced by the M872 .
The JD440 crawlers serial number 455633 and up used 8 fiber discs M3293 and 8 steel discs
AM984 replaced by M872.
*********M3293 fiber discs, we have discontinued because the bimetallic clutch
packs are so much better. We will no longer sell the inferior fibers. When you
compare the "other" clutch packs and clutch kits, they are probably selling you
the fiber frictions. We only sell the superior clutch packs and clutch
kits.************
Bimetallic friction discs are now
available. These discs will have steel teeth and bronze friction surfaces. Expect
longer duty life, no broken teeth, and approximately 3% higher coefficient of
friction.
BIMETALLIC FRICTION DISCS ORDER M3293BM
24.00 ea
AM984/M872 steering clutch steel separator plates,
new @ 16.00 ea
 JD 440 COMPLETE BIMETALLIC STEERING CLUTCH PACK
BELOW SER#455632 HAS A COST OF $264.00 (7 FRICTION AND 6 STEEL)

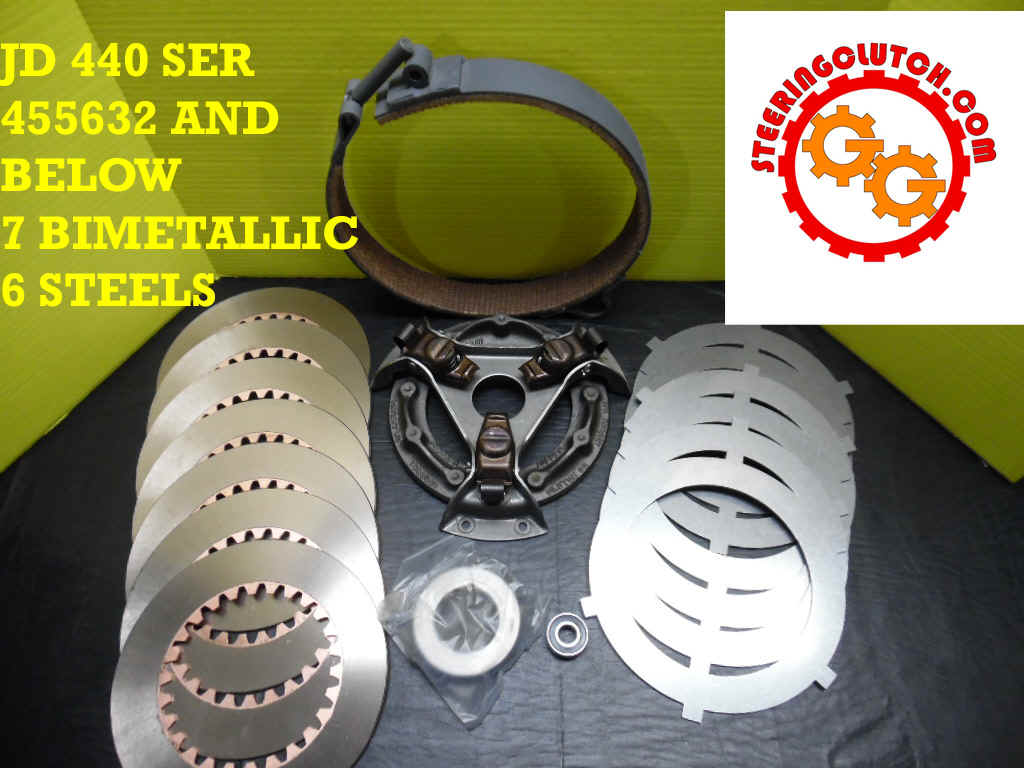

 BELOW SER#455632 JD 440 STEERING CLUTCH
KIT OPTION A 7 bimetallic frictions, 6 steels, PressurePlate Assy,
throwout bearing, pilot bearing and brake band lining kit. 519.00
 BELOW
SER#455632 JD
440 STEERING CLUTCH KIT OPTION B 7 bimetallic
frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE
BRAKE BAND. 657.00

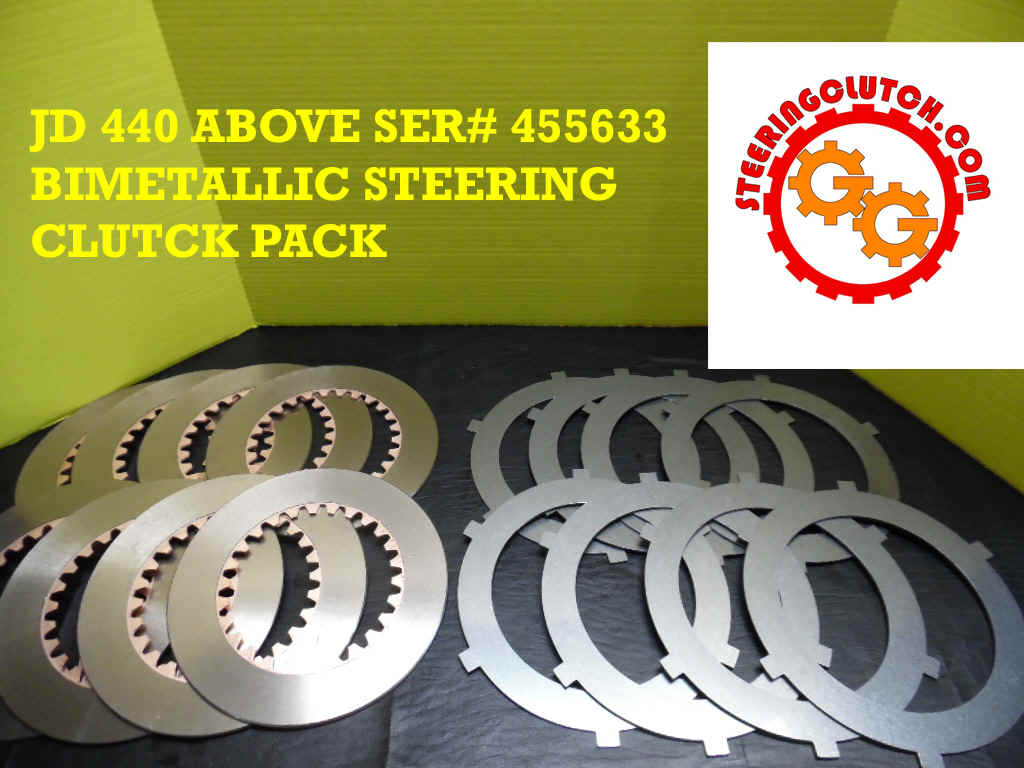

 JD
440 COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE SER#455633 HAS A COST OF $320.00
(8 FRICTION AND 8 STEEL)

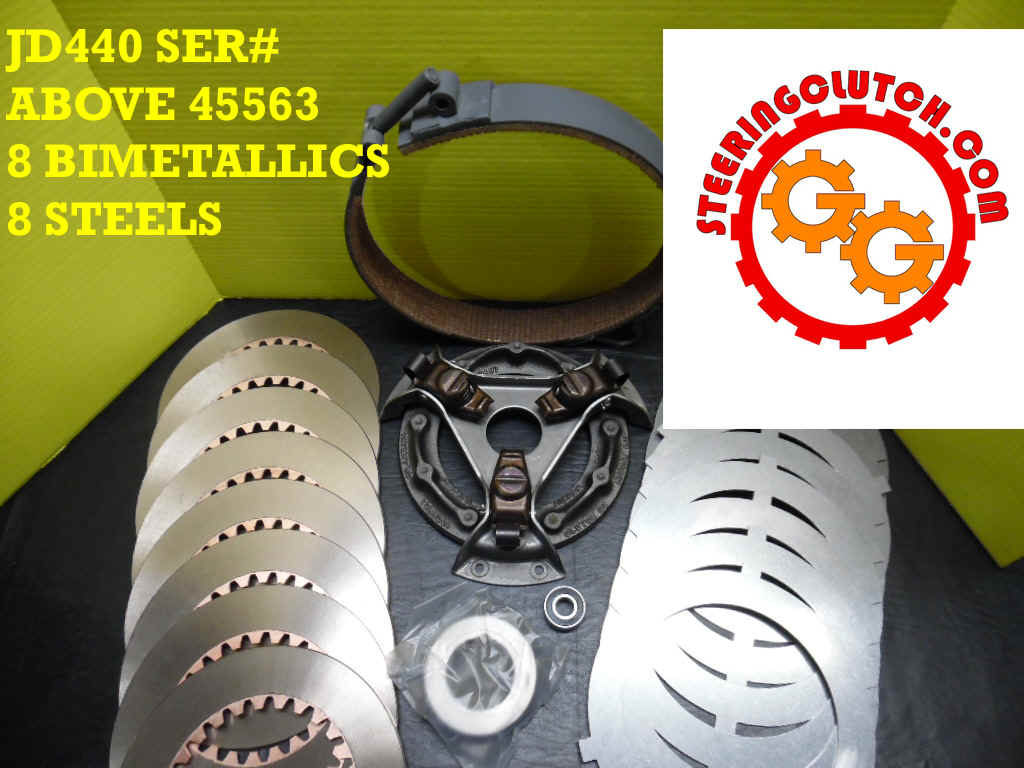

 ABOVE SER#455633
JD 440 STEERING CLUTCH KIT OPTION A 8 bimetallic
frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band
lining kit. 575.00
 ABOVE SER#455633
JD 440 STEERING CLUTCH KIT OPTION B 8 bimetallic frictions, 8 steels, PressurePlate Assy,
throwout bearing, pilot bearingand COMPLETE BRAKE BAND 713.00

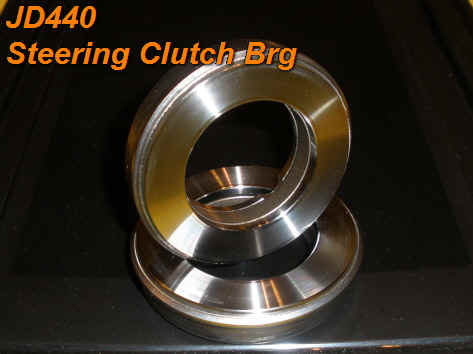

 JD440 New Steering Clutch
Throw Out bearing AM3983 15.00
ea
JD440 New Steering Clutch Pilot Bearing JD8567
7.85 ea
JD440 New Steering
Clutch Pressure Plate AT11853--->AT16121 NEW...NO CORE CHARGE AND NO
EXCHANGE $225.00

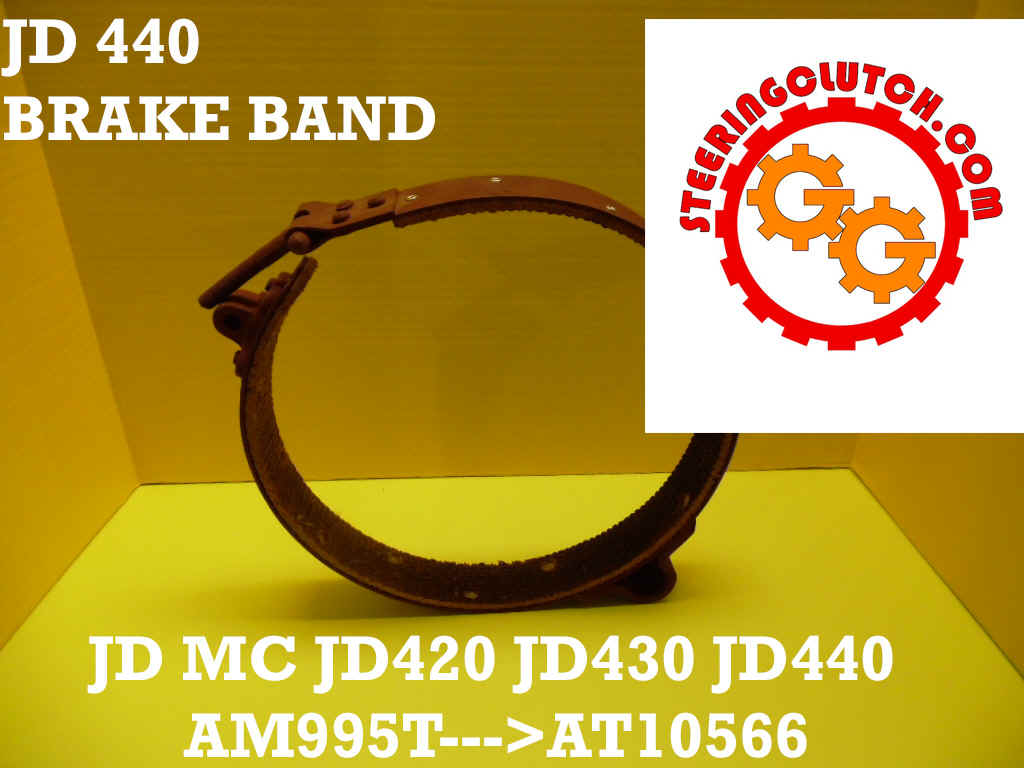

 NEW JD 440 BRAKE BAND
W/ NEW LINING 168.00 ea
AT10566
REPLACES THE EARLIER AM995T
JD440
LINING KIT, INCLUDING RIVETS, 60.00 ea
For the JD440 we have also produced the SHUTTLE CLUTCH DISCS
....AT10438
$29.00 EA Shuttle clutch bimetallic friction
....T10578
$17.00 EA Steel separator plates
JD1010
The JD1010 crawlers used 8 friction discs in all
the serial number ranges. From serial number 1 thru 31000 quantity 8 steel plates, p/n
M872, were used. Above that serial number, quantity 7 steel plates were used.
*********M3293 fiber discs, we have discontinued because the bimetallic clutch
packs are so much better. We will no longer sell the inferior fibers. When you
compare the "other" clutch packs and clutch kits, they are probably selling you
the fiber frictions. We only sell the superior clutch packs and clutch
kits.************
Bimetallic friction discs are now
available. These discs will have steel teeth and bronze friction surfaces. Expect
longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.
BIMETALLIC FRICTION DISCS ORDER M3293BM
24.00 ea
AM984/M872 steering clutch steel separator plates,
new @ 16.00 ea

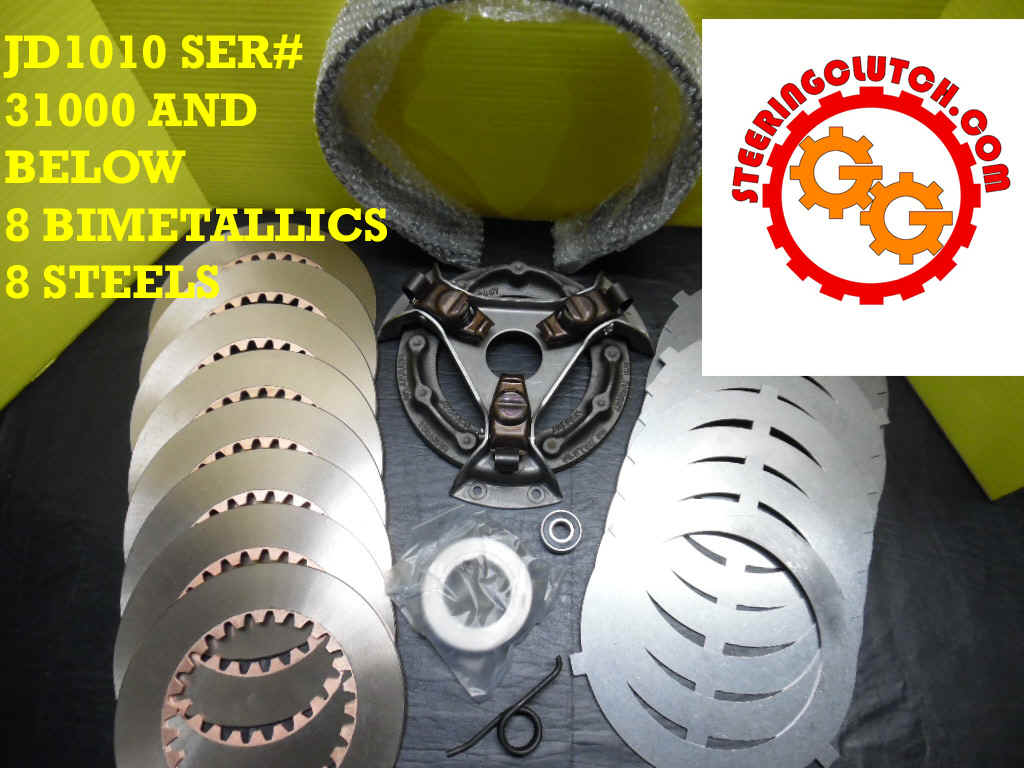

 JD1010
COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#31000 HAS A COST OF $320.00 (8
FRICTION AND 8 STEEL)
 BELOW SER#
31000 JD 1010 STEERING CLUTCH
KIT OPTION 8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing,
pilot bearing, return spring, and COMPLETE BRAKE BAND 700.00

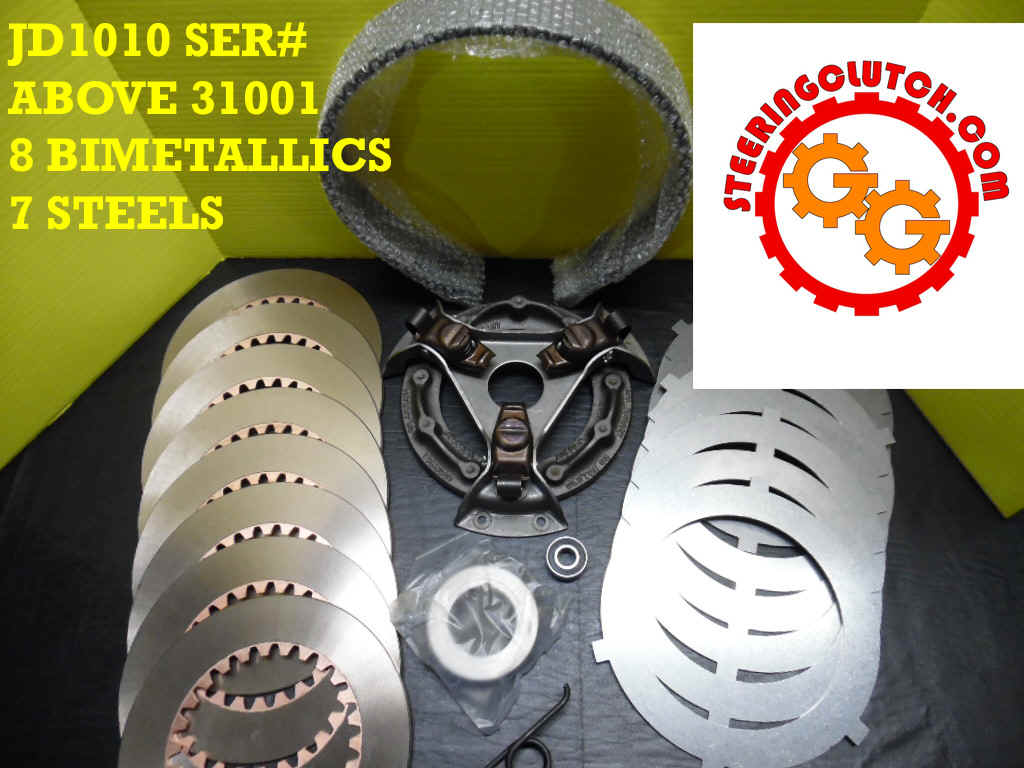

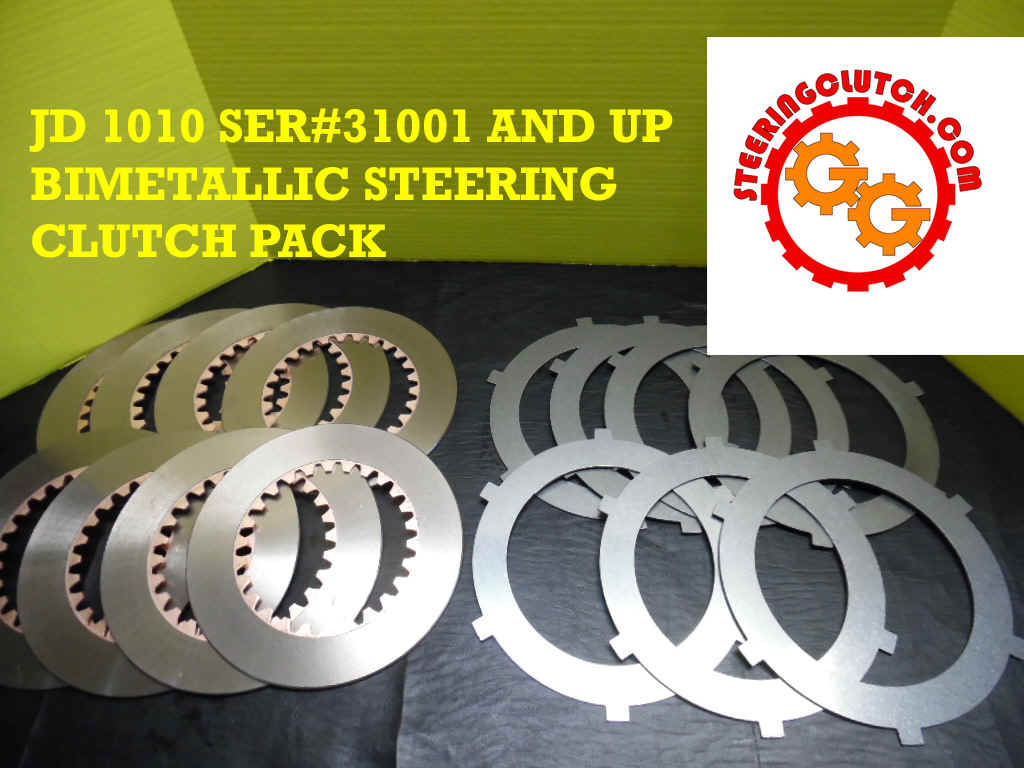

 ABOVE SER# 31001 JD
1010 STEERING CLUTCH KIT OPTION 8 bimetallic frictions, 7
steels, PressurePlate Assy, throwout bearing, pilot bearing, return spring, and COMPLETE
BRAKE BAND 684.00
 JD1010
COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE SER#31001 HAS A COST OF $304.00
(8 FRICTION AND 7 STEEL)

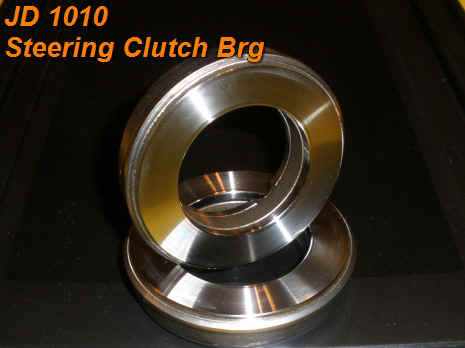

 JD1010 New Steering Clutch Throw Out
bearing AM3983 15.00
ea
 T15801 POWER REVERSER CLUTCH DISC, SINTERED
BIMETALLIC, 76T 4.64 OD T15801 $15.00 EA
JD1010 New Steering Clutch Pilot Bearing JD8567
7.85 ea
JD1010 New Steering
Clutch Pressure Plate AT11853--->AT16121 NEW...NO CORE CHARGE AND NO
EXCHANGE $225.00
 New Steering Clutch control shaft return
springs, RH and LH T14258 and T14259
16.00 EA
 New aftermarket Brake Band with new
Linings. We have improved our brakebands over the original design to not only
include the normal adhesive glue, but have also reinforced the linings with rivets.
If you have ever removed your JD350 brake bands and seen the linings broken loose from the
bands, the riveted reinforced linings will help prevent this problem.
185.00 AT18845-->AT129805
We ordered enough of these in volume to keep the cost down to make the brake band
competitive with relining your own band. This will speed up your repair by having
them ready to install.
SERVICE
TOOL #7 FOR REPAIR OF STEERING CLUTCH
Click HERE to view all of our new steering clutch
discs.
|
|
for orders or
questions.
