The steering clutches for the International
model 500, 500C, and 500E series crawlers were derived from the earlier TD4 and TD5
crawlers. The 500 and early 500C's (9" diameter discs) crawlers used 7 fiber discs
675848R2 and 6 steel discs 635384R1. The later serial numbered 500C's and all 500E's (9
15/16" diameter discs) also used 7 fiber discs 676834R2 or (R1) and 6 steel discs
676833R2 or (R1) on each side. We supply new after market replacement DISCS, DRUMS,
BRAKE BANDS, PRESSURE PLATES, HUBS and BASE PLATES for both styles of clutch packs.
Occasionally we get calls regarding "complete" steering clutch kits. The term,
"Complete Kit", is misleading because it implies that the parts supplier knows
what you need for your clutch. They don't!! (And...not all"Kits" being offered
by different parts suppliers are even the same!!)
We take the menu approach. This gives you, the equipment owner or repair shop, the right
to select only the items that you need to make your repairs. You're the boss and we will
try to help you control your bottom line costs!
 Free shipping in US only, Priority Mail or UPS Ground, on orders
$500 or higher.ORDERING
INFO:
 We
can usually ship on the same day any items we have in stock that do not have to be pulled
from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the US you may call 1-800-531-9021 or if you are
outside the US, 1 208 342 8911.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho. You may also email steeringclutch@gmail.com for
orders/questions.
To be sure that you get
the correct discs, please make sure that your discs match the dimensions and tooth counts.
For
10" discs and clutches, scroll down to the 500C and 500E section.
IH 500 STEERING CLUTCH
WITH 9" DISCS

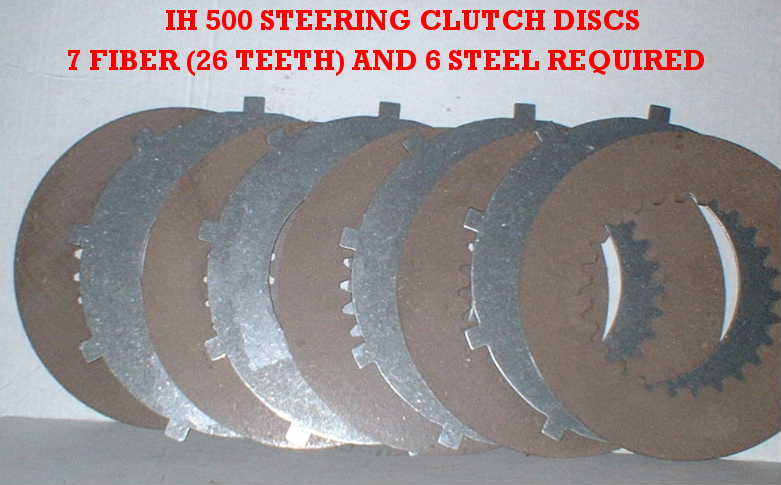

 IH Model 500 fiber and
steel discs
IH500 & early 500C's 9" discs...FIBER DISCS
675848R2 (old p/n 635385R1) 26 internal teeth, 9" O.D. $21.00 ea
IH500 & early 500C's 9" discs
STEEL DISCS 635384R1(9 external square dogs) $20.00 ea

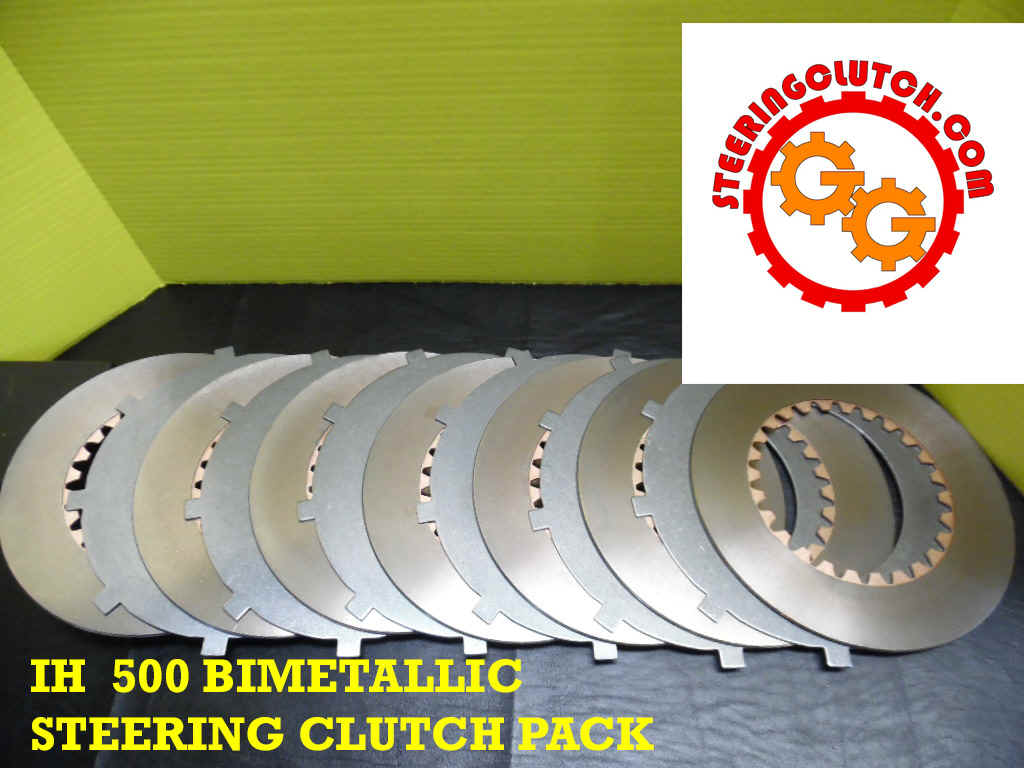

BIMETALLIC FRICTION DISCS....
 $29/EA (click on picture to enlarge) ....NOW IN STOCK
THESE NEW HEAVIER DUTY DISCS WILL ELIMINATE MANY OF YOUR PROBLEMS CREATED BY
THE USE OFTHE EARLY STYLE FIBER FRICTION DISCS. Order P/N 675848R2BM
CLUTCH PACK OPTION COSTS:
COST OF 7 FIBER FRICTION DISCS 7 AND 6 STEELS = $267.00
COST OF 7 BIMETALLIC FRICTION DISCS AND 6 STEELS = $323.00
click to enlarge
IF YOU WANT OR NEED COMPLETE CLUTCH KITS YOU HAVE
OPTIONS OF FIBER OR BIMETALLIC FRICTION DISCS.
9" CLUTCH KIT OF 7 FIBERS FRICTION AND 6 STEELS,
PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING, AND SNAP RING HAS A COST OF
$643.00
9" CLUTCH KIT OF 7 BIMETALLIC FRICTIONS AND 6
STEELS, PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING AND SNAP RING HAS A
COST OF $699.00
(BIMETALLICS HIGHLY RECOMMENDED!!)

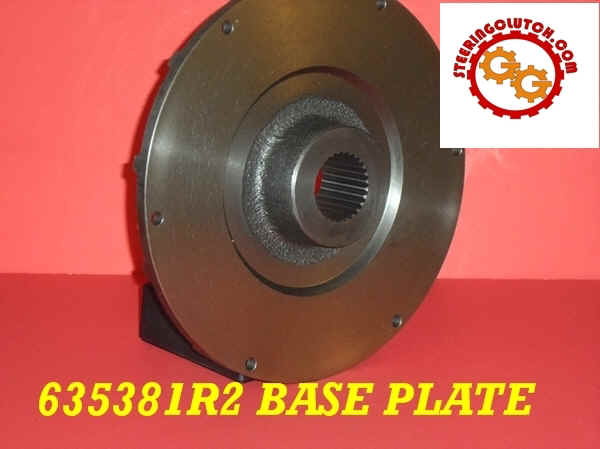

BASE PLATES.....635381R2..9"
Clutches........ .............$245.00
INNER STEERING CLUTCH DRIVING HUBS....635376R1 /
636416R1...9" Clutches.... .......$230.00
IH 500 FOR 9" CLUTCHES INNER STEERING CLUTCH DRIVING HUBS
RETAINER RING
 635394R1
$19.00 EA or
32.00 for set of 2(arriving February 2017)
 IH 500 FINAL DRIVE PINION 636695R11
NEW 185.00
 FOR IH 500 NEW BRAKE DRUMS ............635375R1........$185.00 ea
FOR IH 500 NEW BRAKE BANDS WITH NEW LINING (FOR USE W/ 9" CLUTCH
DISCS) 636576R91 $170.00 ea.
We ordered enough of these in volume to keep the cost down to make the brake band
competitive with relining your own band. This will speed up your repair by having
them ready to ship.

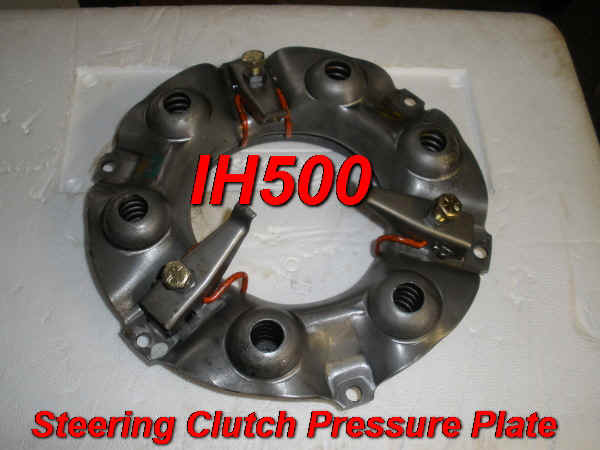

 IH 500 NEW STEERING
CLUTCH PRESSURE PLATE 635557R91 172.00
THIS PRESSURE PLATE IS DESIGNED FOR THE EARLY 500 CRAWLERS, 9 INCH CLUTCH DISCS.
IH 500 STEERING
CLUTCH THROW-OUT BEARING.....359957R91 $15.00 (NOT THE SAME AS ON
500C/E)

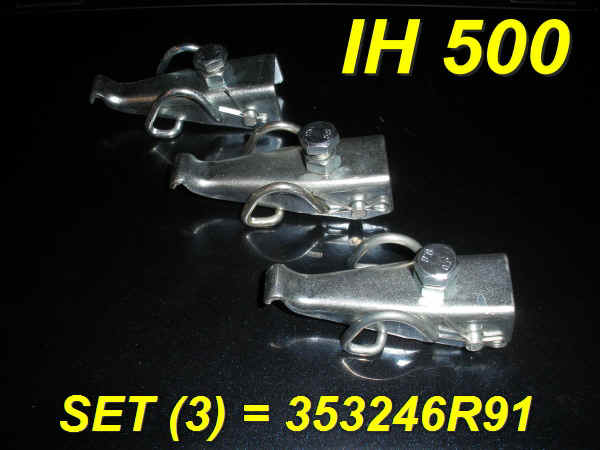

 SET OF 3 =
353246R91 Steering Clutch levers fit IH 500 steering clutches with the 9"
discs. (The levers for the larger clutch packs (10") are
different!!)
74.00 per set of 3
includes 3 each of
353243R91 Lever
51461D Spring
51460D Pin
103371 Pin
SET..........635393R1 & 635392R1 LINKS
....T4/TD4/T5/TD5/500 W/ 9" CLUTCHES.....one of each...$60.00)
ADJUSTING LINK (female
end)............635393R1....T4/TD4/T5/TD5/500 W/ 9" CLUTCHES.......$35.00
ADJUSTING LINK (male
end)...............635392R1.....T4/TD4/T5/TD5/500 W/ 9" CLUTCHES.......$35.00
IH 500C AND 500E STEERING CLUTCH
PARTS (10 INCH)

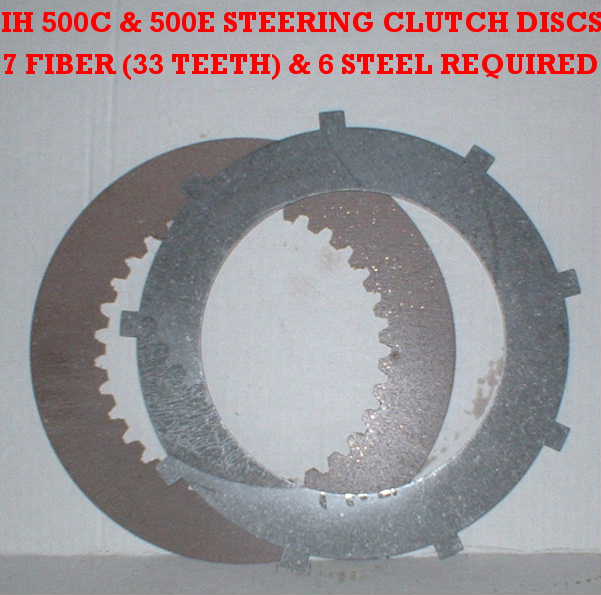

 IH Model 500C
& 500E fiber and steel discs
Late 500C's &
500E's (9 15/16" diameter) FIBER DISCS 676834R2 discs 33 internal teeth. $16.00 ea
Late 500C's & 500E's (9 15/16" diameter) STEEL DISCS
676833R2 discs. $18.00 ea

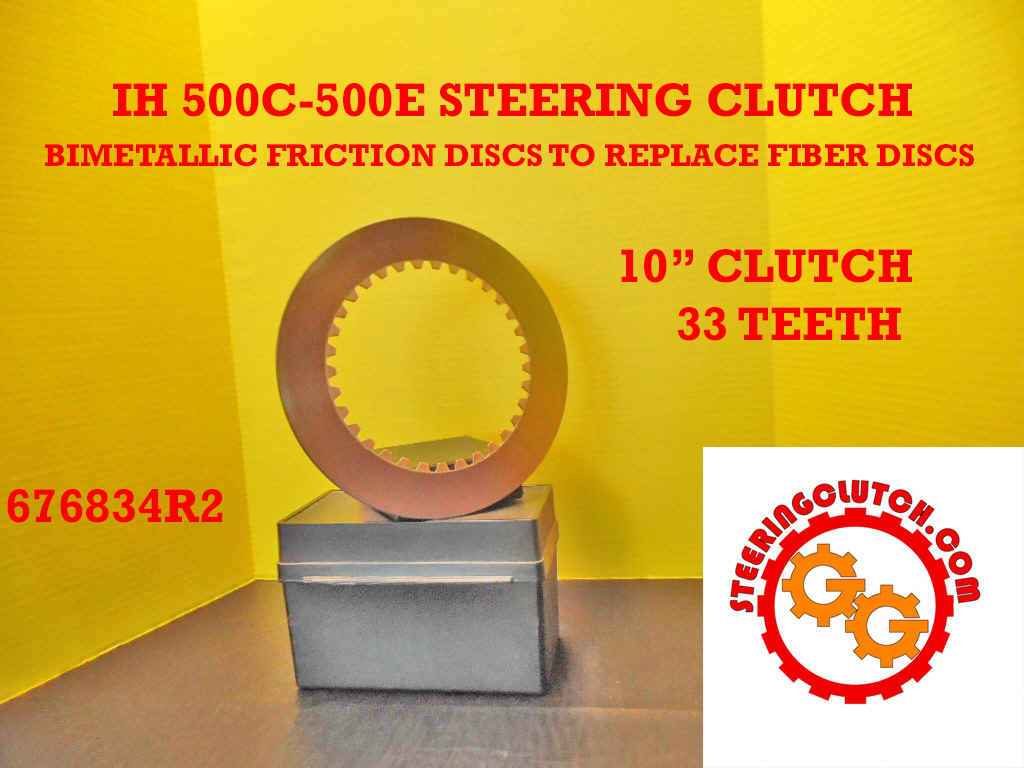

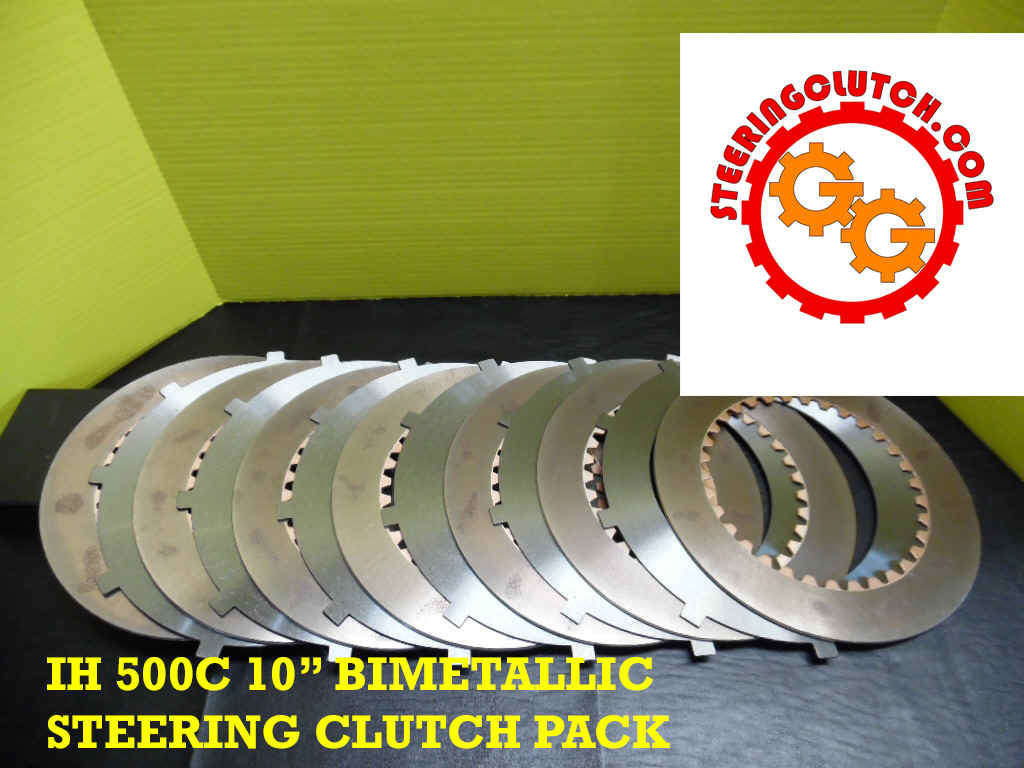

BIMETALLIC FRICTION DISCS.  $29/EA(click
on picture to enlarge) ....
NOW IN STOCK
THESE NEW HEAVIER DUTY DISCS WILL ELIMINATE MANY OF YOUR PROBLEMS CREATED BY
THE USE OF THE EARLY STYLE FIBER FRICTION DISCS.
10 INCH CLUTCHES Order P/N 676834R2BM
CLUTCH PACK OPTION COSTS:
COST OF 7 10"FIBER FRICTION DISCS AND 6 STEELS = $220.00
COST OF 7 10"BIMETALLIC FRICTION DISCS AND 6 STEELS = $311.00
500C
500E
IF YOU WANT OR NEED COMPLETE CLUTCH KITS YOU HAVE
OPTIONS OF FIBER OR BIMETALLIC FRICTION DISCS.
10"
CLUTCH KIT OF 7 FIBERS FRICTION AND 6 STEELS,
PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING, AND THE INNER AND OUTER SNAP
RING HAS A COST OF $741.00
10"
CLUTCH KIT OF 7 BIMETALLIC FRICTIONS AND 6
STEELS, PRESSURE PLATE, BRAKE BAND, THROWOUT BEARING AND THE INNER AND OUTER
SNAP RING HAS A COST OF $832.00
(BIMETALLICS HIGHLY RECOMMENDED!!)
SET..........676819R1
& 676820R1 LINKS ....IH 500C AND 500E WITH 10" CLUTCHES.....one of
each...$60.00 FOR ASSEMBLY)
ADJUSTING LINK (female
end)............676820R1....500C and 500E.......$35.00
ADJUSTING LINK (male end)...with lock
nut............676819R1.....500C and 500E.......$35.00
 NEW 500C BRAKE DRUM
676828R2............ 185.00
 IH 500C
FINAL DRIVE PINION 676861R11 NEW
185.00

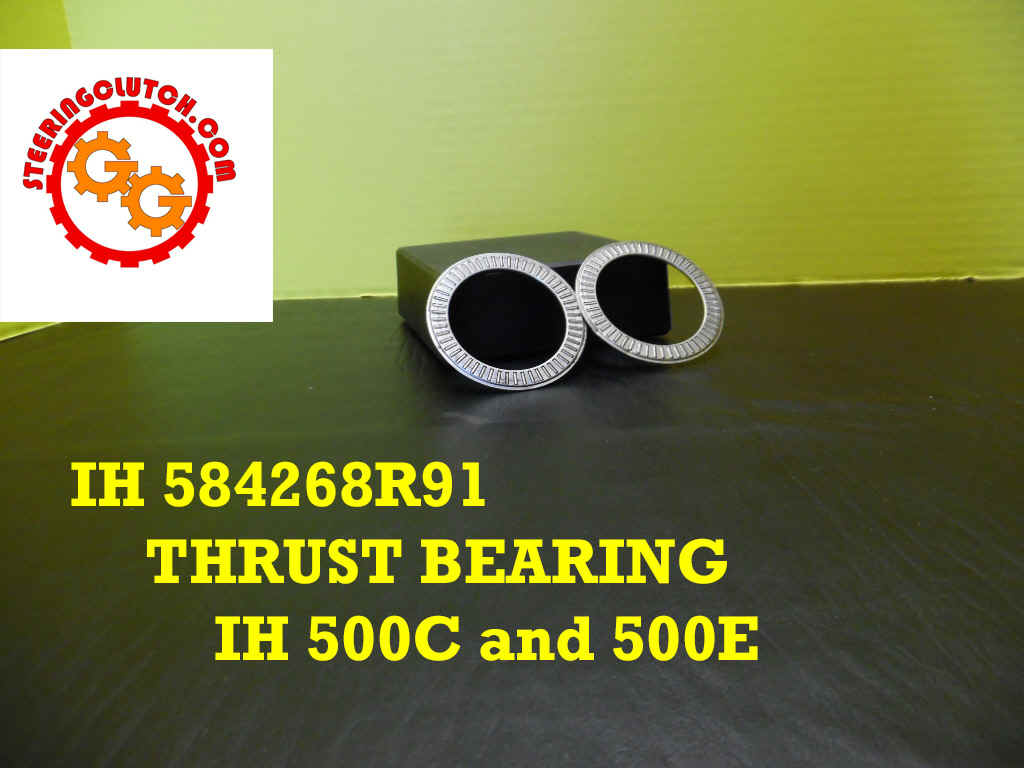

IH
500C FINAL DRIVE PINION THRUST BEARINGS 324214R1--->584268R91 9.80 EA
(2 used per pinion)

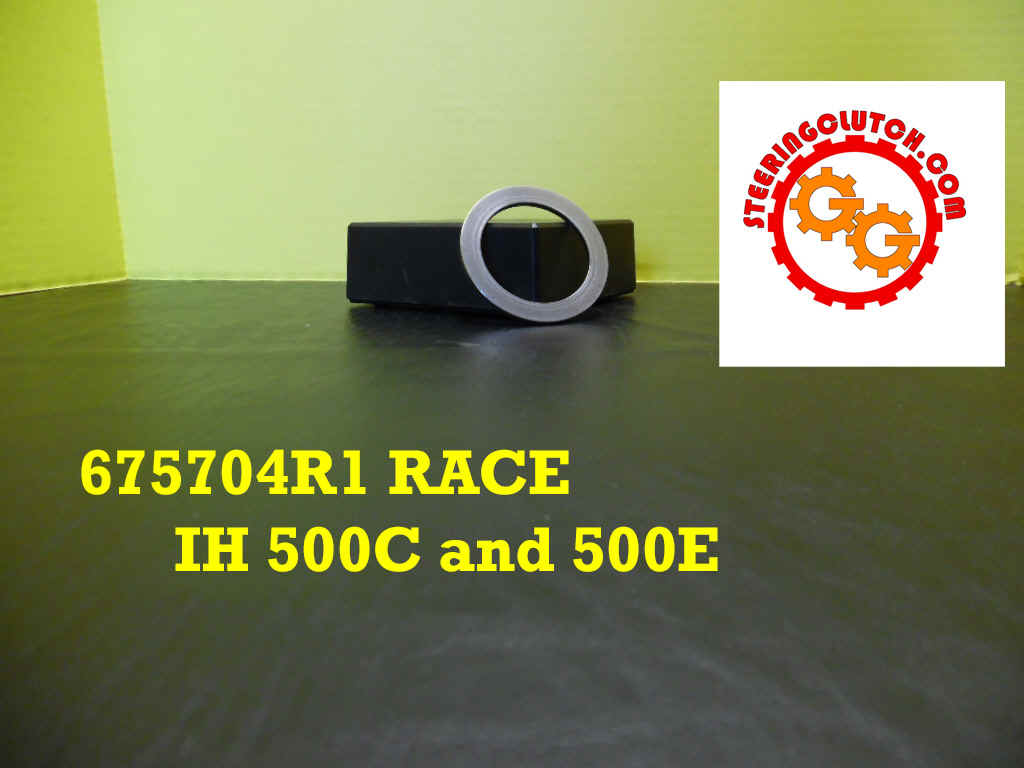

 IH 500C FINAL DRIVE PINION
THRUST RACES/WASHERS 675704R1 7.25 EA (two used per pinion)

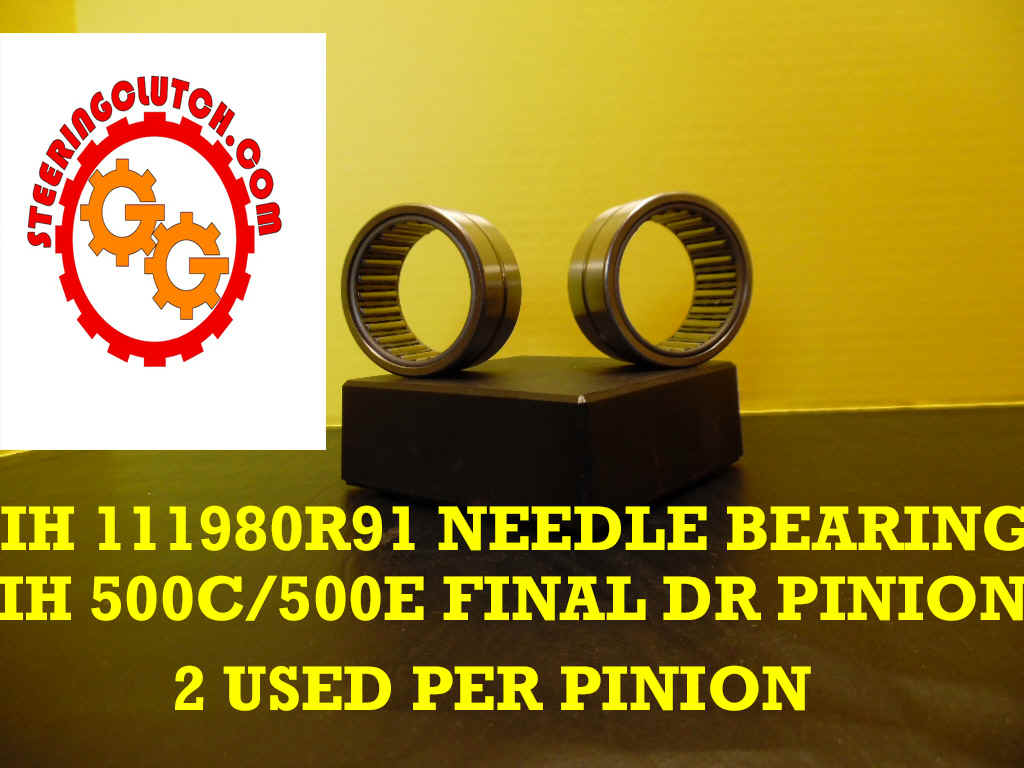

IH 500C FINAL
DRIVE PINION BEARING 111980R91 INNER AND OUTER (TWO USED PER PINION) $24.00 EA
ALTERNATE PART NUMBERS: CASE-IH H753152 610117C91 111981R91 111979R91
JD JD10203
CLARK 653505 763189 CATERPILLAR
5P7737 KOMATSU RD41534 D41534
ALLIS CHALMERS/FIAT 153449 70153449
GM 6703043 456562 443936 FORD
C7NN7121B

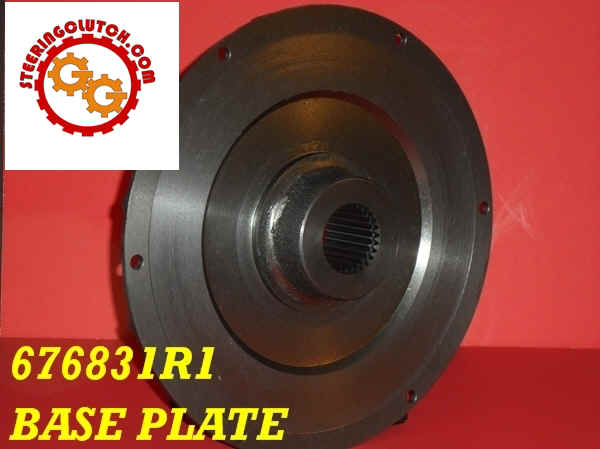

BASE PLATES 500C and 500E
676831R1 & 850676R1......10" Clutches........ ....$220.00

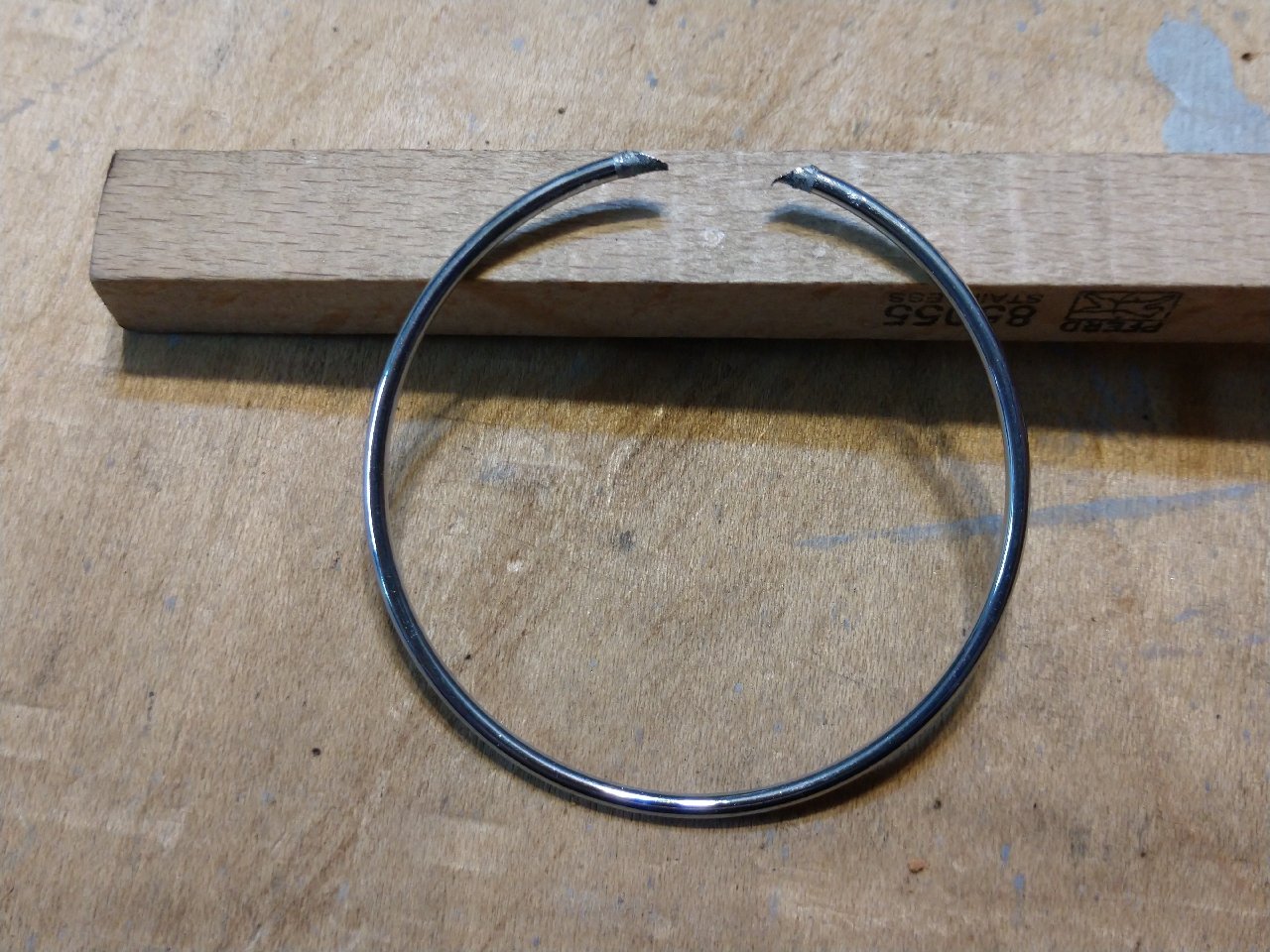

676832R1 BASE PLATE SNAP RING
 CLICK HERE TO SEE HOW TO GET YOUR 676832R1 SNAP RING

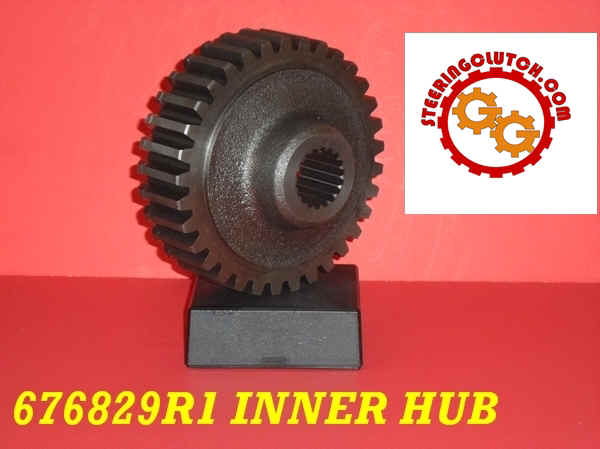

INNER STEERING
CLUTCH DRIVING HUBS 500C and 500E 676829R1.. 10" Clutches.... .......$215.00

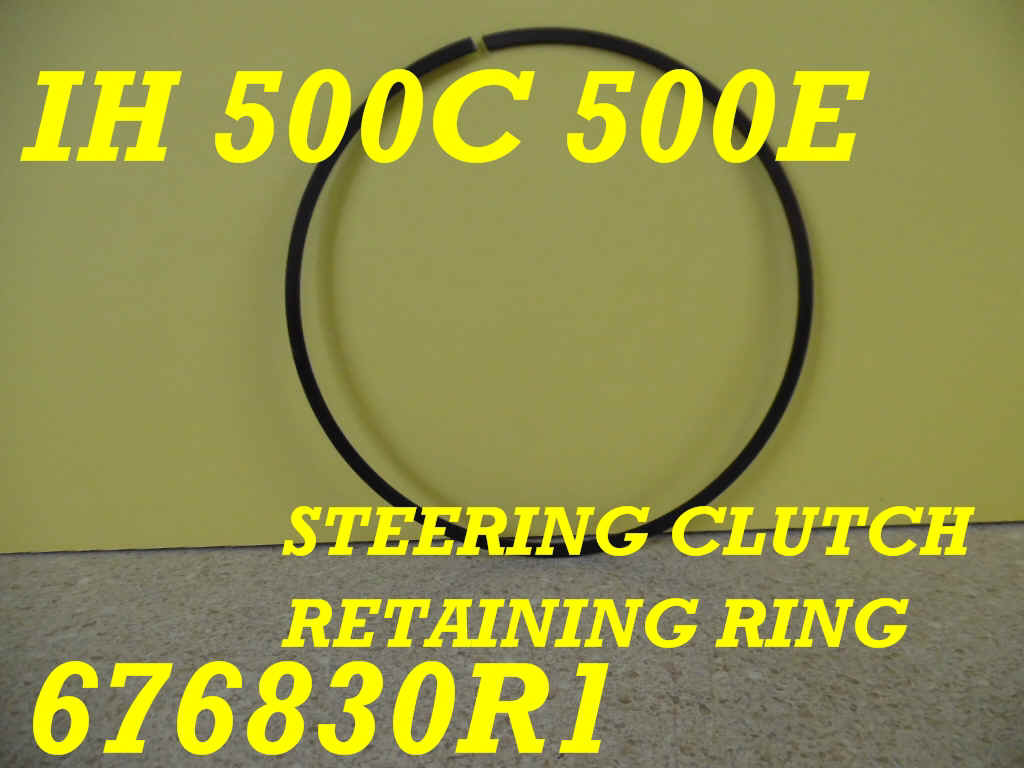

INNER STEERING CLUTCH DRIVING HUB RETAINING
RING 676830R1 FOR 10" CLUTCHES $19.00 EA OR 32.00
FOR SET OF 2
 NEW STEERING
CLUTCH PRESSURE PLATE 676827R91 $282.00
FOR THE 500C STEERING CLUTCHES WITH THE 9 15/16" (10") FRICTION DISCS
 NEW 500C and 500E's
365865R81-->376866R91-->363281R91 and AETNA A2322 -->A2322-1 --> A1934
-->A1934-1
STEERING

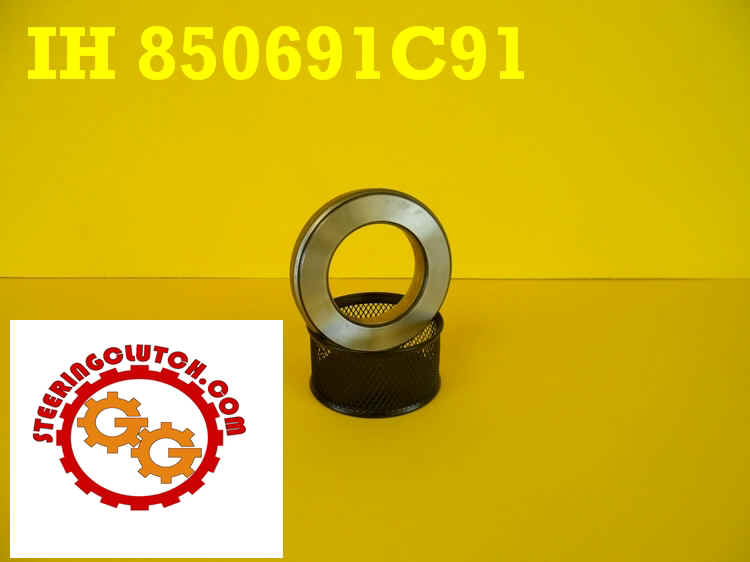

CLUTCH THROW-OUT BEARINGS 850691C91 $35.00 THIS BEARING
IS ALSO SAME AS FOR THE FLYWHEEL CLUTCH
NEW 500C STEERING CLUTCH RELEASE LEVER
SPRINGS  SPRINGS P/N 366465R1 SET OF 3 @ 35.00

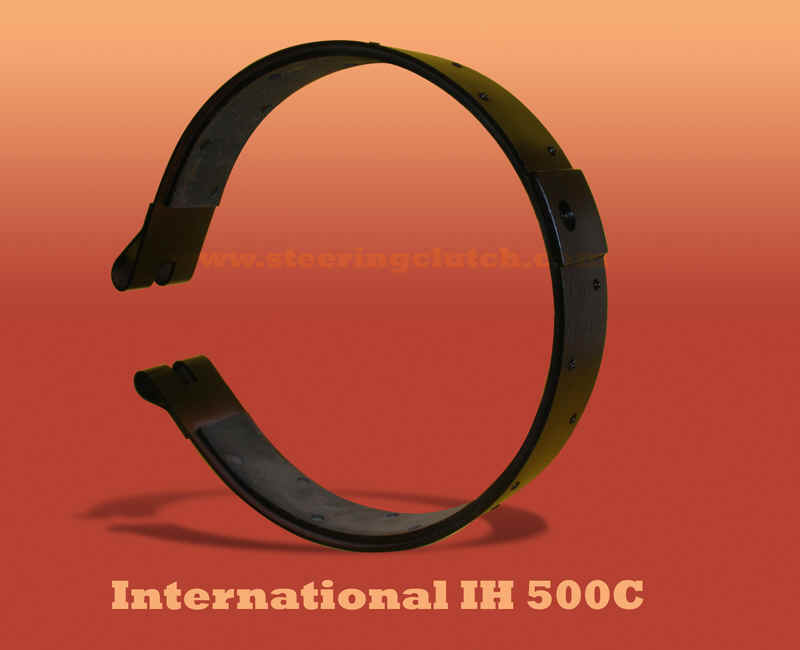

IH 500C NEW BRAKE BAND WITH
NEW LINING 676915R92 $170.00 ea We ordered enough of these in volume
to keep the cost down to make the brake band competitive with relining your own
band. This will speed up your repair by having them ready to ship.
 IH 500E
FINAL DRIVE PINION 852522C1 NEW 185.00
IH 500E FINAL DRIVE PINION THRUST BEARINGS
324214R1--->584268R91 9.80 EA (2 used per pinion)
IH 500E FINAL DRIVE PINION THRUST RACES/WASHERS
675704R1 7.25 EA (two used per pinion)
IH 500E FINAL
DRIVE PINION BEARING 111980R91 INNER AND OUTER (TWO USED PER PINION) $24.00 EA
ALTERNATE PART NUMBERS: CASE-IH H753152 610117C91 111981R91 111979R91
JD JD10203
CLARK 653505 763189 CATERPILLAR
5P7737 KOMATSU RD41534 D41534
ALLIS CHALMERS/FIAT 153449 70153449
GM 6703043 456562 443936 FORD
C7NN7121B
 NEW BRAKE DRUM FOR IH 500E
676828R2 185.00
 NEW 500E
STEERING CLUTCH PRESSURE PLATE 676827R91 282.00
FOR THE 500E STEERING CLUTCHES WITH THE 9 15/16" (10") FRICTION DISCS
NEW 500E STEERING CLUTCH RELEASE LEVER SPRINGS
SPRINGS P/N 366465R1 SET OF 3 @ 35.00

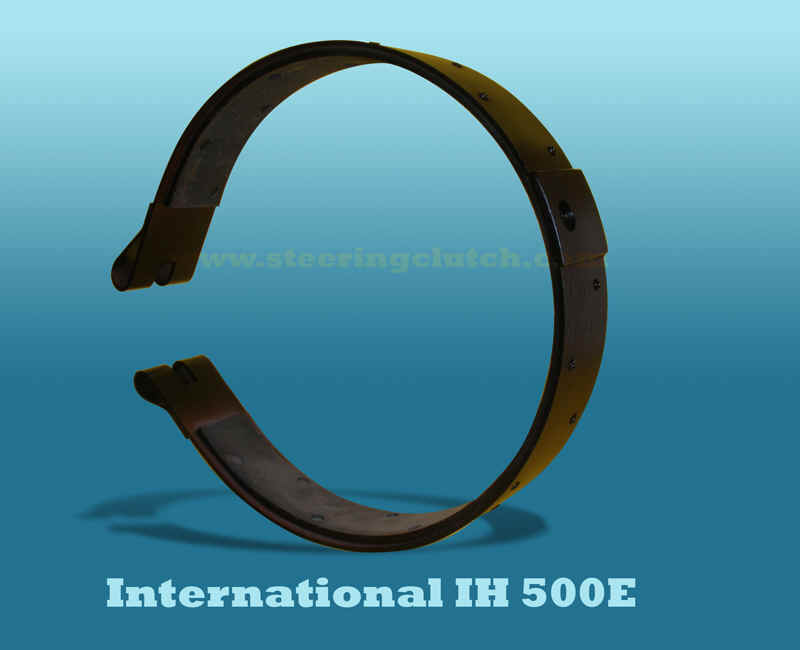

IH 500E NEW BRAKE BANDS WITH NEW
LINING .....676915R92..... $170.00 We ordered enough of these in volume
to keep the cost down to make the brake band competitive with relining your own band.
This will speed up your repair by having them ready to ship.
INTERNATIONAL 500
STEERING CLUTCH PARTS
INTERNATIONAL 500
STEERING CLUTCH SERVICE
INTERNATIONAL 500
FINAL DRIVE SERVICE
INTERNATIONAL 500C
STEERING CLUTCH PARTS
INTERNATIONAL 500C
STEERING CLUTCH SERVICE
INTERNATIONAL 500C
FINAL DRIVE PARTS
INTERNATIONAL 500E
STEERING CLUTCH PARTS
INTERNATIONAL 500E
FINAL DRIVE PARTS
IH
ENGINE IH BC-144 BD-144 BD-154 ENGINE SERVICE
BD-144
BD154 ENGINE PARTS FOR IH CRAWLER 500
IH
ENGINE_D155_179_206_239_246_268_310_358_402_SVC The D155
engine was used in 500C and 500E
FOR A MORE
COMPREHENSIVE SELECTION OF IH-HOUGH-KOMATSU MANUALS CLICK ON THIS SENTENCE AND SCROLL DOWN
PAST THE PARTS PICTURES.
A big "Thank You!" to Jim Stoneman
from MitsBits Dozer Parts,
Victoria, Australia
for contributing the Service information below for aligning final drives and steering
clutches
for the IH 500 crawler. This is important if you are shearing
teeth off of the
steering clutch friction discs.
IH FINAL DRIVE
ALIGNMENT
Click HERE to view all of our new steering
clutch discs.
|
for orders or
questions.

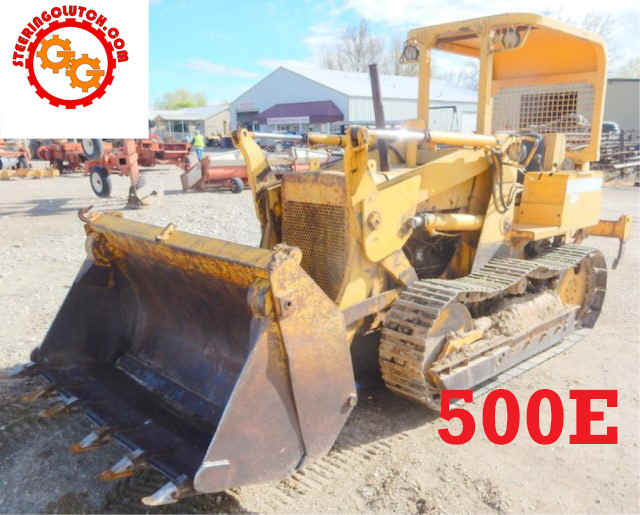

IH 500E IN FOR PARTS, 4 IN ONE FRONT BUCKET AND RIPPER(sold)
IH

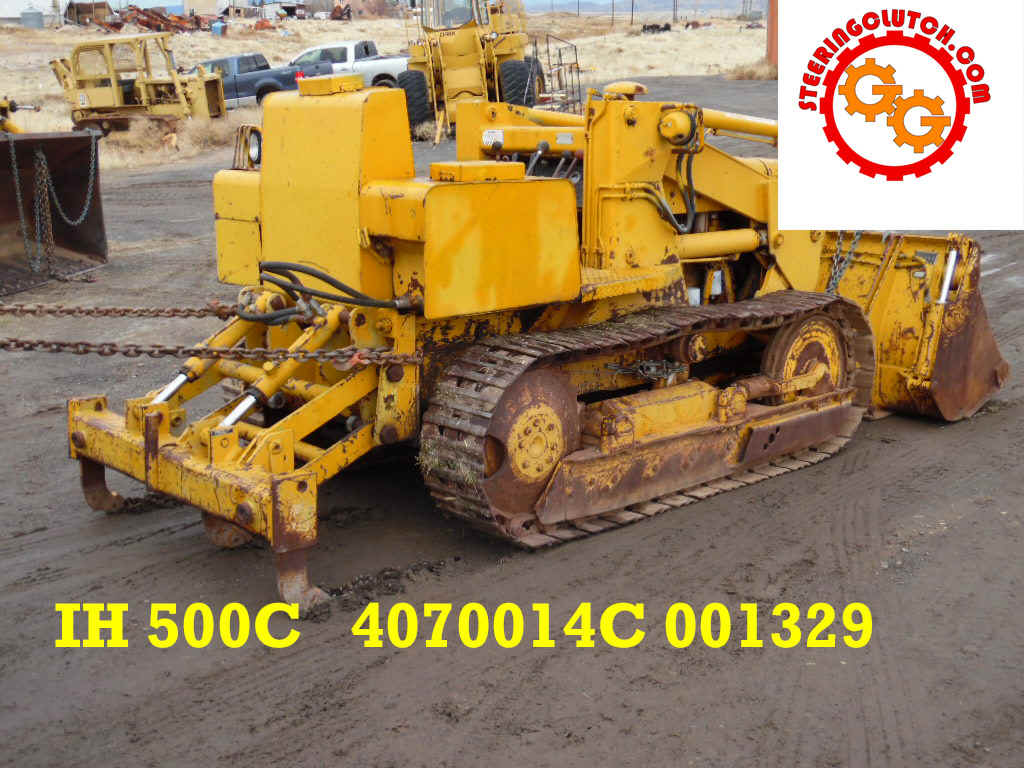

500C IN FOR PARTS, 4 IN ONE FRONT BUCKET AND RIPPER
