D5 D5B D5C STEERING CLUTCHES

The D5 steering clutches are a design continuation of the earlier D6 ( D6 4R, 5R, 8U, 9U) and D6B model machines, using the same inner driving drums, same bimetallic friction discs, same steel separator plates, clutch springs, and even the same brake drum and brake linings! Twelve (12) bimetallic friction discs and twelve (12) steel separator plates are required for each clutch pack. Unless severe damage has occurred, you often have to replace only the bimetallic friction discs. This keeps your costs down quite a bit. All parts listed below are of course new replacement parts, non oem.
Brake Band relining kit $49.00 per clutch (a band is 3 sections, the price includes all rivets and linings for one complete brake band)

D5B and D5C steering clutches are quite different.  They are oil type clutches and even those disc requirements change between the D5B and D5C's.  See below for the discs used in those applications.

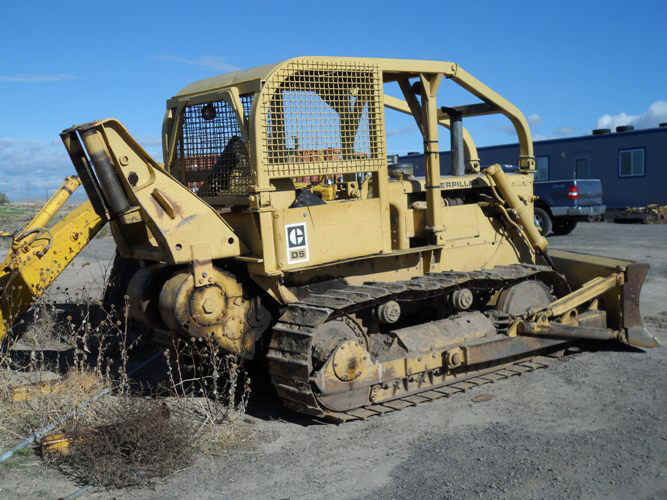

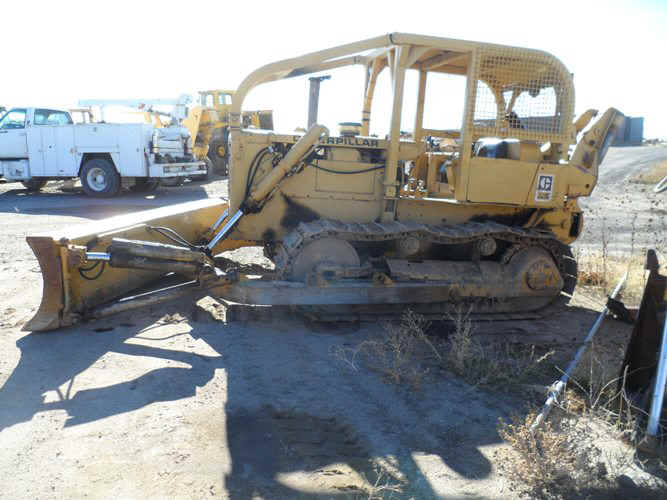

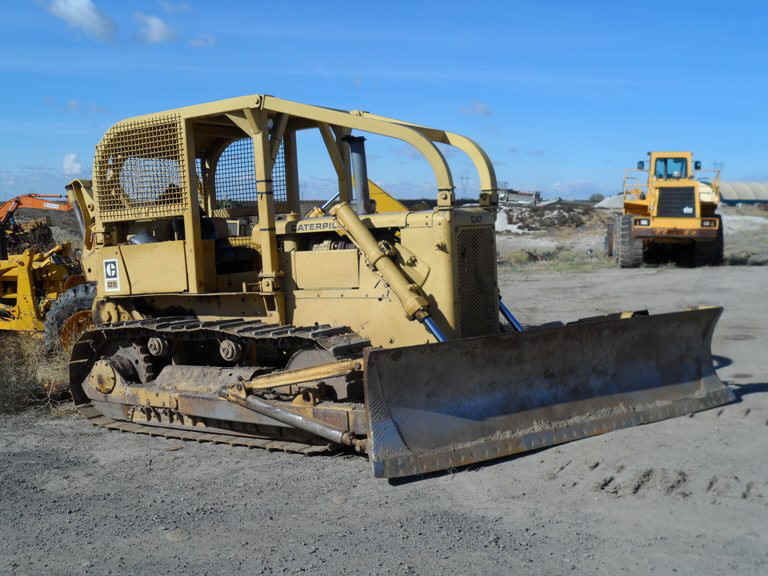

                                                CAT_D5_96J_POWERSHIFT.JPG (109570 bytes)        CAT_D5_96J_1925.JPG (101499 bytes)     CAT_D5_96J_HYDRAULIC_WINCH.JPG (140649 bytes)      CAT_D5_96J_WITH_3306_ENGINE.JPG (125453 bytes)   D5 IN FOR PARTS

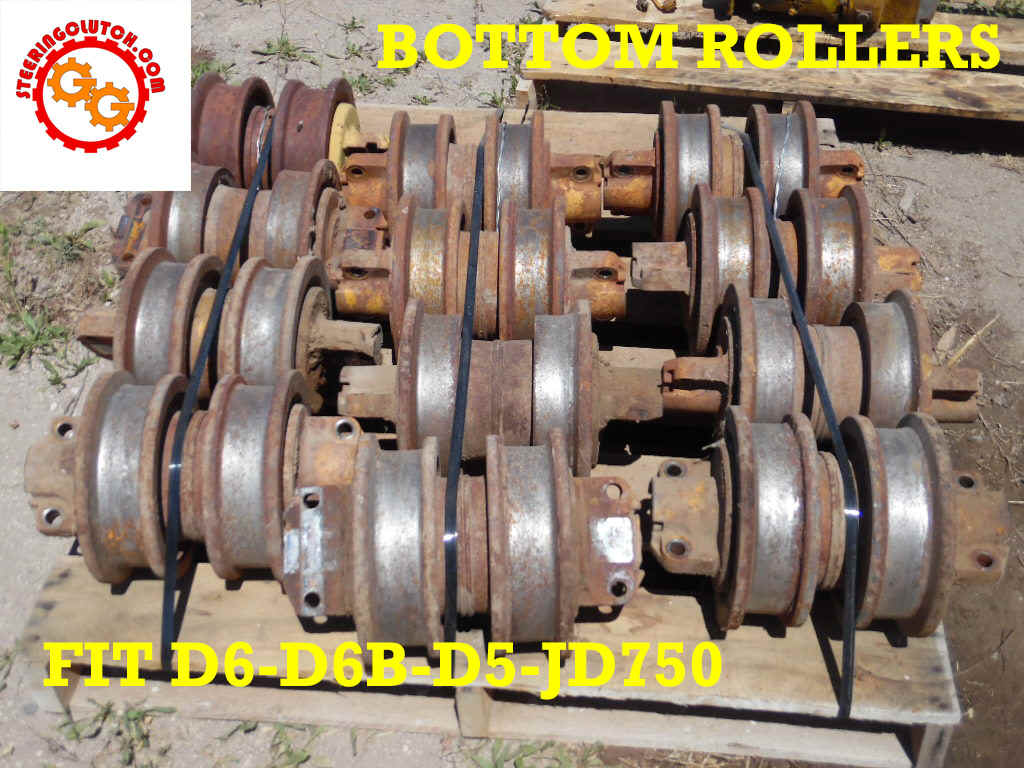

                                                                                   CAT_D6_D6B_D5_JD750_BOTTOM_ROLLERS.jpg (339051 bytes)  SET OF 12 USED BOTTOM ROLLERS, LIFETIME  $1200.00

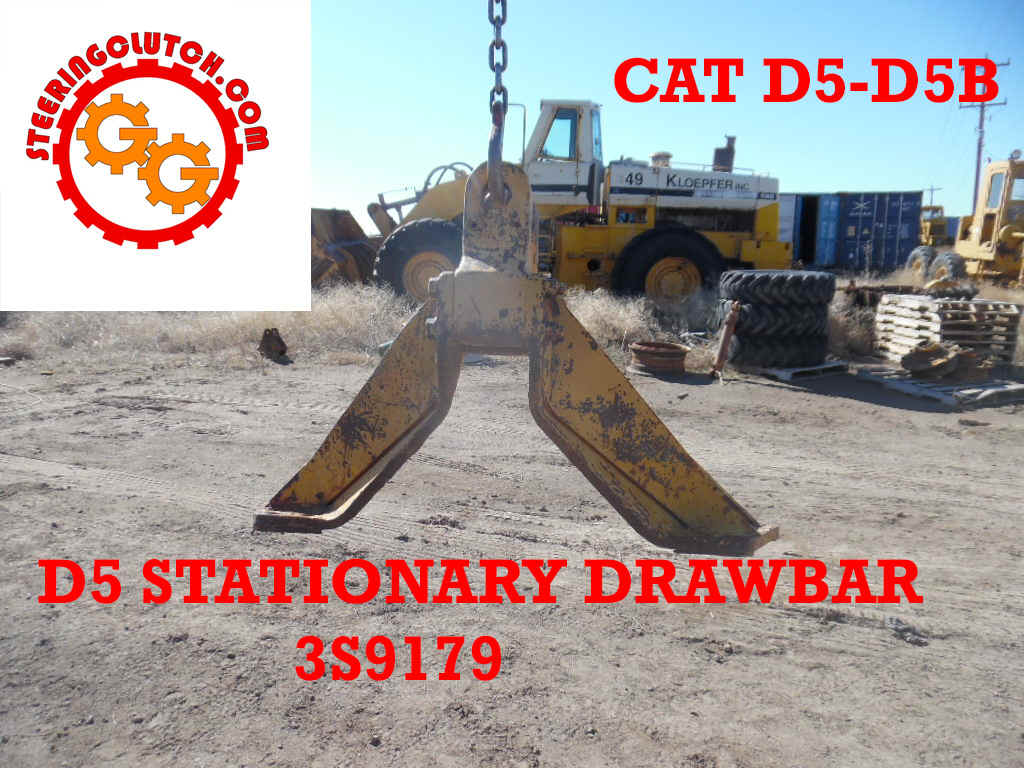

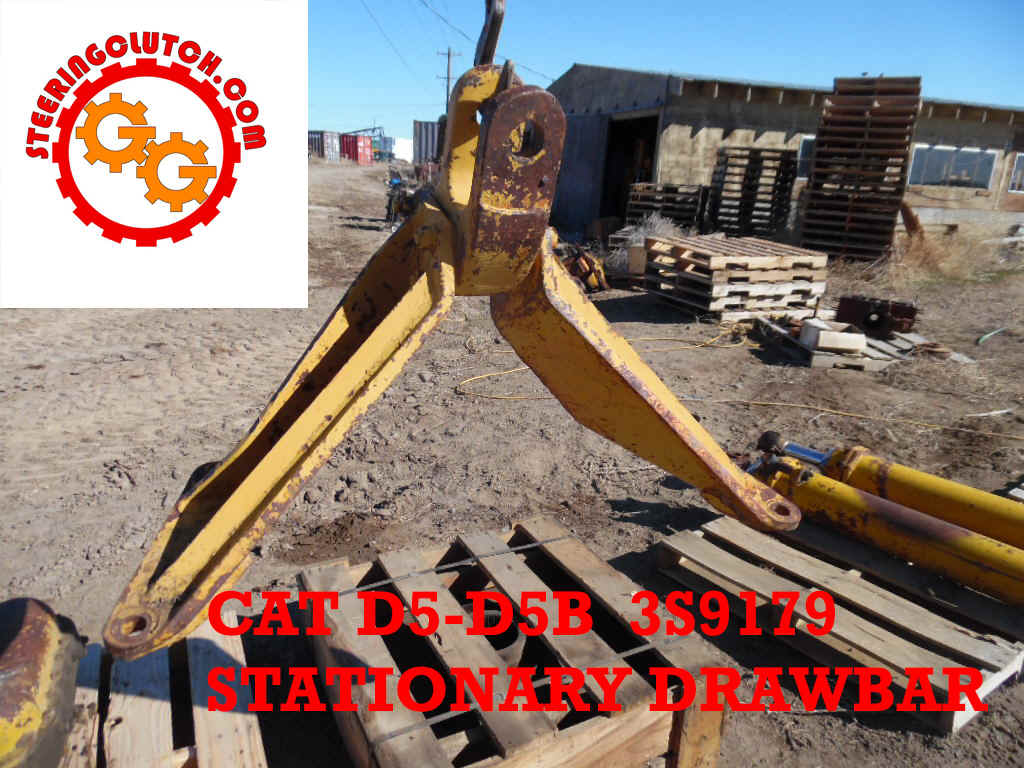

CAT_D5_STATIONARY_DRAWBAR__3S9179.jpg (356032 bytes)  CAT_D5_DRAWBAR__3S9179.jpg (353430 bytes)   3S9179 CAT D5-D5B STATIONARY DRAWBAR    (NO PIN)  500.00

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.  We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email  steeringclutch@gmail.com        for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

D5

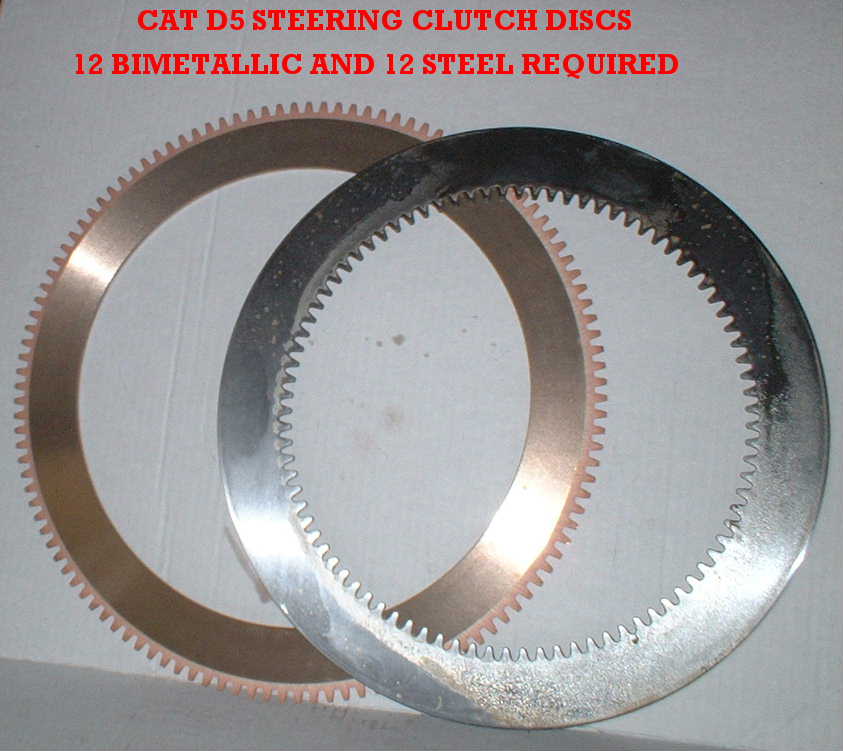

(12) D5 2F8621-->6Y7160 Bimetallic friction discs per clutch @ $26.00 ea
(12) D5 1A3987 Steel separator plates per clutch@ $16.00 ea
COMPLETE CLUTCH PACK OF 12 FRICTION AND 12 STEELS = $504.00
CAT D5 STEERING CLUTCH DISCS

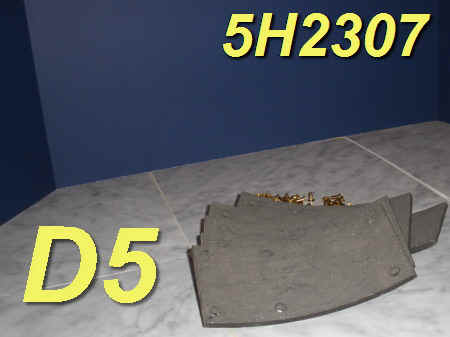

D5LININGKIT.jpg (54242 bytes)  NEW D5 BRAKE LINING KITS INCLUDING RIVETS.  FOR DRY TYPE STEERING CLUTCH
BRAKE BANDS...ONE COMPLETE KIT, W/ RIVETS FOR ONE COMPLETE 3 PC BRAKE BAND  $49.00    P/N 5H2307 LINING KIT


HEAVY DUTY WOVEN LINING    57.00   ORDER P/N  5H2307HD

THIS TYPE OF LINING IS PRIMARILY FOR DRY TYPE BRAKES. THE BRAKE LINING KIT, INCLUDES RIVETS, LINING, 57.00/SET
HEAVY DUTY WOVEN LINING WOVEN WITH BRASS STRANDS, DESIGNED FOR REPEATED USE IN SEVERE CONDITIONS, ABLE TO WITHSTAND HIGH TEMPERATURE USE (400 DEGREE)WITH MINIMAL LOSS OF COEFFICIENT OF FRICTION.  THE MATERIAL IS ALSO GOOD IN SOME OIL TYPE APPLICATIONS.   (IT SHOULD BE GROOVED FOR BETTER PERFORMANCE IN OIL APPLICATIONS)

The lining is easier to work with and you can even change position of rivet holes if necessary to compensate for bad rivet holes in the band.  This style of lining elminates the possibility of breaking, cracking, or chipping like the molded style linings which are brittle and must fit the perfect curvature of the band.   It is often tough to fit the molded linings to 70-80 year old brake bands without damaging that style of lining.

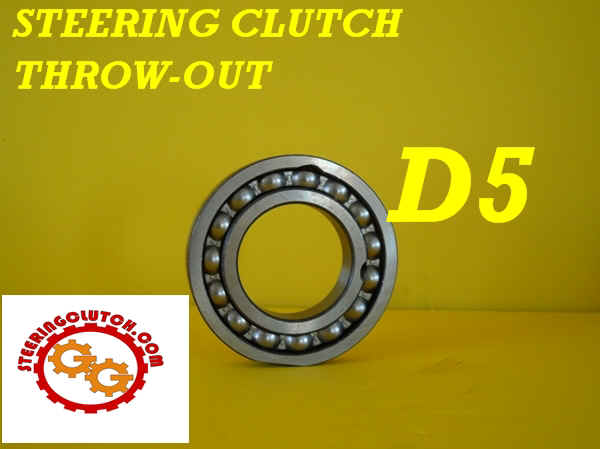

CAT_D5_STEERING_CLUTCH_THROW-OUT_BEARING_1B4103_8M8068.JPG (185070 bytes)   NEW D5  DRY TYPE STEERING CLUTCH THROW-OUT BEARINGS    P/N 1B4103 8M8068   $45.00 EA

CAT_6B7178_6B7159_ADJUSTING_YOKE_NUT.JPG (216829 bytes)  BRAKE BAND ADJUSTING FORK AND NUT     66.00 EA or 120.00 PER SET (ONE EACH)

6B7178 FORK          Original 6B7159 adjusting nut was replaced by the updated 8H9379 nut to make adjusting easier.

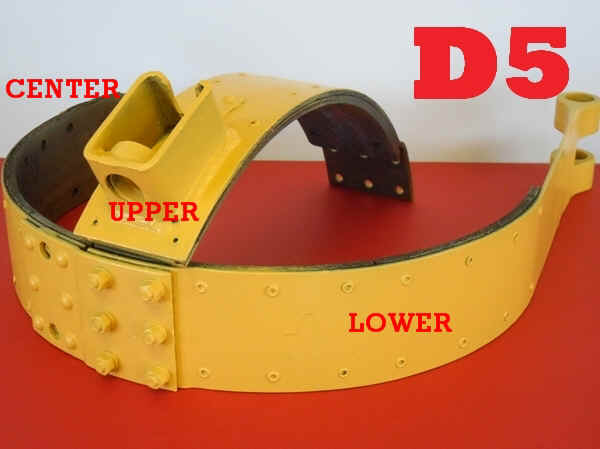

CAT_D5_BRAKE_BAND.JPG (184951 bytes)        IN STOCK!! NEW BAKE BANDS COMPLETE WITH NEW LINING, NEW 3 PC BRAKE BAND  366.00 OUTRIGHT AND NO CORE CHARGES!!  These bands will fit the D5 and D5B dry type steering clutches.
UPPER SECTION 1M0547-->8E7624  CENTER SECTION 6F2686-->8E7622   LOWER SECTION  4M8766->9P0740->8E7625

WHEN REMOVING YOUR STEERING CLUTCH..........IT IS IMPORTANT TO RIG YOUR LIFTING SLING ON THE BRAKE BAND
PROPERLY TO PREVENT DAMAGE TO YOUR BRAKE BAND (CLICK HERE FOR INFO)   This excerpt from a 1955 Service Magazine is a reference for the D8 steering clutch but the principle is the same.  Do not damage your brake band!

7B5088 BRAKE DRUM
6B4189--->7B5088--->2234813 NEW Outer Brake Drum $270.00

7M5002 INNER DRIVING DRUM
7B5314 --> 7M5038 -->  7B5294---> 7M5002 -->2267992  NEW After Market Inner Driving Drum $190.00


CAT D5 D6 D7 STEERING CLUTCH SPRINGS
(8) Steering clutch 6B9633 outer springs $4.50 ea
(8) Steering clutch 6B9632 inner springs $3.00 ea

Steering Clutch Compression Tool  74.00 (FOR DRY TYPE CLUTCHES..FOR OIL TYPE, SEE BELOW)



D5B

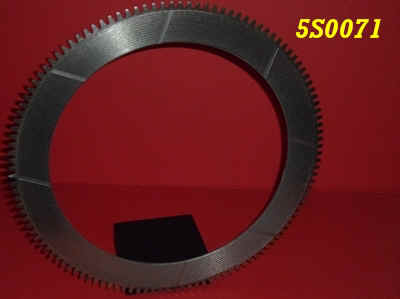

(13) 5S0071   FRICTION DISCS  5S0071_CLUTCH_DISC.JPG (8198 bytes)      $25.00 EA.   (13) used per clutch

(12) 1A3987 SSTEEL SEPARATOR PLATES    CAT-1A3987DISC.jpg (15185 bytes)    $16.00 ea   (12) used per clutch





D5C OIL TYPE STEERING CLUTCHES


(9) 6Y7914    FRICTION DISCS   CAT-6Y7914DISC.jpg (22748 bytes)   $12.00   EA.   (9) used per clutch


(9) 5K8616 STEEL SEPARATOR PLATES      CAT-5K8616DISC.jpg (21585 bytes)    $9.00 ea   (9) used per clutch



(1) 5V0593  SPECIAL PLATE       CAT-5V0593DISC.jpg (25166 bytes)   $16.50 ea   (1) used per clutch

CAT_D5C_OIL_TYPE_STEERINGCLUTCH_THROW-OUT_BEARING_7B7515.JPG (25948 bytes)  7B7515 THROW-OUT BEARING ASSY FOR THE D5C OIL TYPE CLUTCH (ALSO FITS D3C OIL TYPE CLUTCHES)   $33.00
(earlier part numbers 7F4031, 6V0924, 2U5271, 2U0767, 7R0892  are all replaced by the 7B7515 bearing)

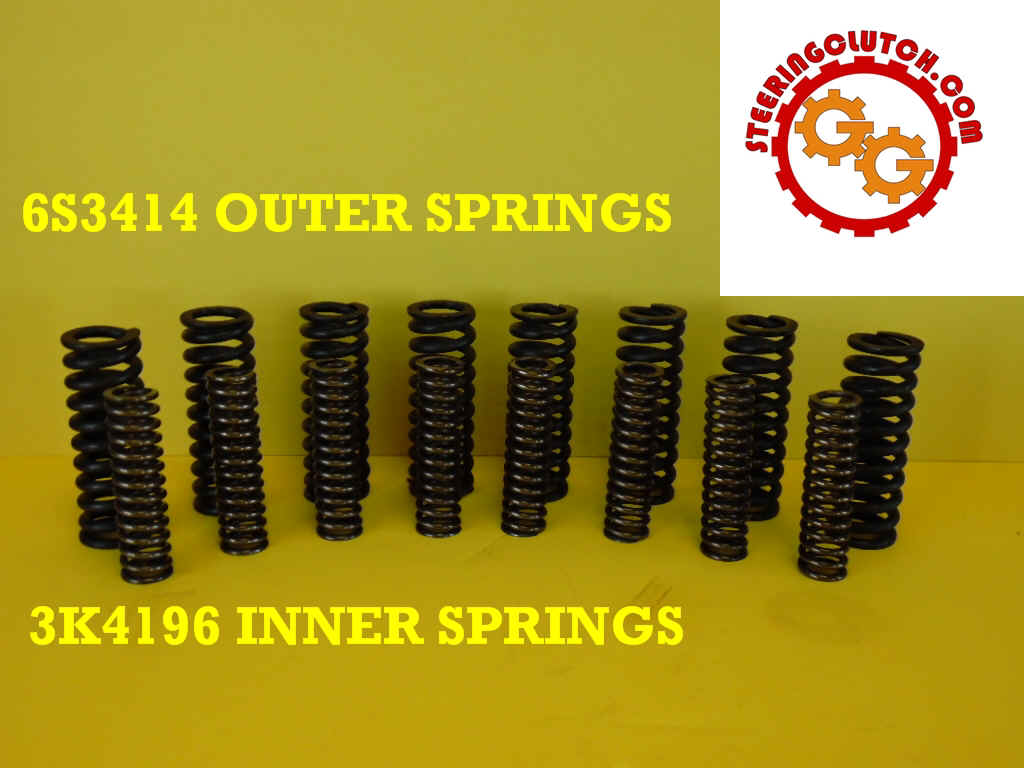

OUTER SPRINGS 6S3414  SET OF (8) @ $74.00 PER SET

LINING KIT LINING KITS FOR THE OIL TYPE CLUTCHES......INNER AND OUTER LININGS AND RIVETS...... $269.00 ea

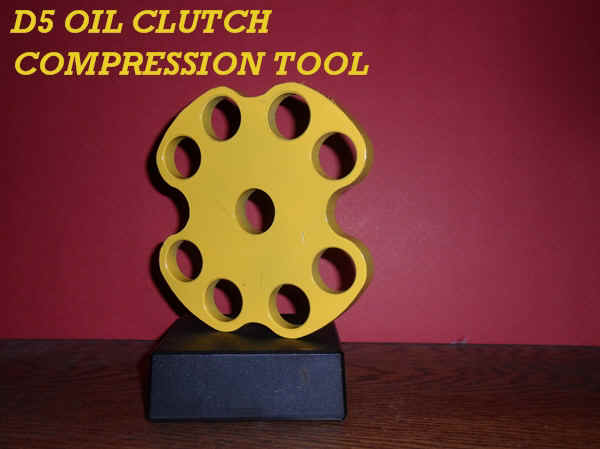

D5_OIL_CLUTCH_COMPRESSION_TOOL (1).JPG (197330 bytes)   STEERING CLUTCH COMPRESSION TOOL 3B6779-->5F5038-->7S8431-->1U9349
FOR OIL TYPE D5 STEERING CLUTCHES $65.00
