CAT D4 STEERING CLUTCH, FLYWHEEL CLUTCH, DISCS

ORDERING INFO:
  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.  We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email   steeringclutch@gmail.com     for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

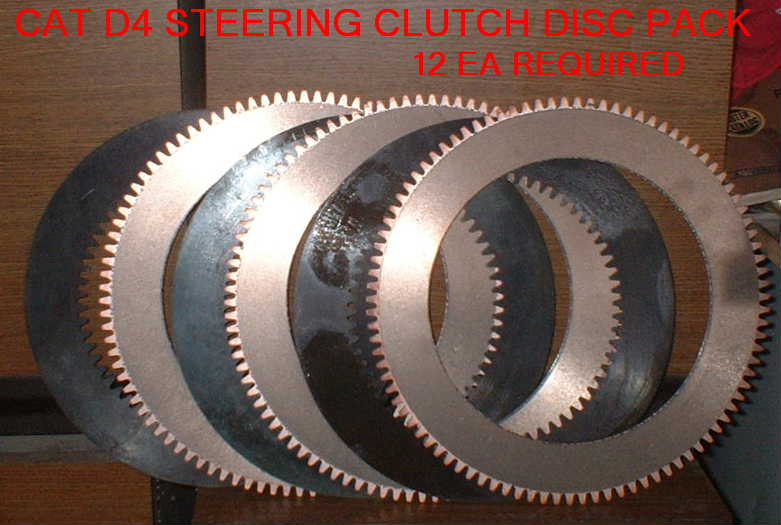

D4 3F5504 ( qty 12) Bimetallic friction discs @ $21.00 EA.
D4 2B8955 (EARLIER P/N 3F9073)  (qty 12) Steel Discs $12.00 EA.
COMPLETE CLUTCH PACK OF FRICTION DISCS AND PLATES = $396.00

  D4 CLUTCH DISCS..FOR THE EARLY D4'S, 4G-6G-7J-2T-5T's and 6U1 thru 6U9781and 7U1 THRU 7U26502 12 EACH DISCS ARE REQUIRED

In the later D4 7U the design of the steel separator plates changed to match a newer style inner driving drum.  The quantities used became 11 Bimetalic discs and 11 Steel separator plates: For the D4 6U9782 and up and the 7U26503 and up, the inner driving drum changed and the number of discs needed became 11 each friction discs and steel separator plates.

Late D4 7U 3F5504 (qty 11) Bimetallic fricton discs @ 21.00 ea
Late D4 7U 2H6936 (qty 11) Steel Separator Plates @ 12.00 ea
COMPLETE CLUTCH PACK OF 11 FRICTION AND 11 STEELS = $363.00

   8H1174 inner driving drum for later D4's and 955 12A's        NEW         $185.00

   2B8824 BRAKE DRUMS FOR EARLY D4 MODELS 10 bolt holes
4G 6G 7J 2T 5T 6U 7U 40A 78A CRAWLERS AND 955 12A   TRACK LOADERS      NEW       $250.00 EA

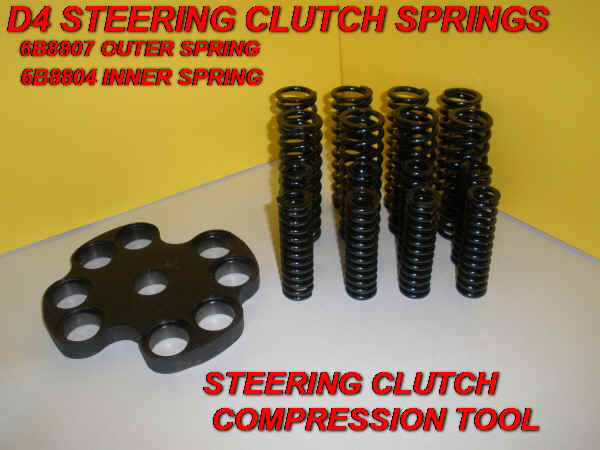

    D4 STEERING CLUTCH SPRINGS AND CLUTCH COMPRESSION TOOL 3B6779-->5F5038-->7S8431-->1U9349  NEW

6B8807 OUTER SPRING (8 REQUIRED)  4.00 EA
6B8804 INNER SPRING (8 REQUIRED)   3.50 EA
CLUTCH COMPESSION TOOL   3B6779-->5F5038-->7S8431-->1U9349               65.00 EA

  NEW D4 STEERING CLUTCH THROW-OUT BEARING       P/N 1B4102           $45.00 EA
FITS D4 4G 7J 2T 5T 6U 7U VINTAGE MODELS AS WELL AS D4C AND D4D TRACTORS
ALSO FITS 955 12A AND 955 60A     THIS BEARING WILL EVEN FIT THE DIESEL 40 CRAWLERS

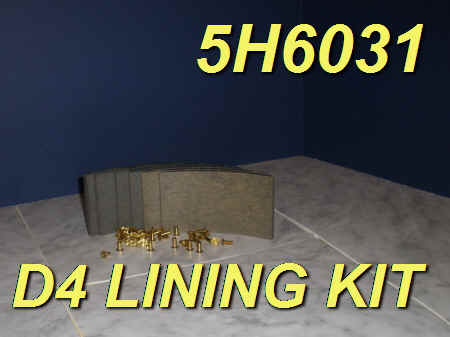

D4 LINING KITS FOR 3 PIECE BRAKE BAND. (Includes Rivets)
FITS MODELS D4 4G-6G-7J-2T-5T-6U-7U #1 thru 40736          5H6031       $57.00 for one complete brake band kit
The early parts manuals show a lining kit of 5F1016 that covers both brake bands.....The 5F1016 equals qty (2) of the 5H6031

FOR THE D4 LINING KITS SER # 7U40737 AND UP THE PART NUMBER FOR THE LINING KIT (W/ RIVETS) IS 9H4280     $57.00 PER KIT

     NEW  !!!  BRAKE BANDS AND HEAVY DUTY LININGS

    NEW BANDS  !!!Sometimes your brake band is worn or rusted out so thin that it is no longer usable.   Sometimes it has some subtle bends,   slightly out of shape, or has wallowed out rivet holes or rusted out boltholes.  Often, if you followed service instructions for brake band removal, you probably destroyed one or two sections!!  This makes installing new linings difficult.   They almost always have broken off carriage bolts or bolts so old that they are no longer trustworthy.  We use a newer style of brake linings for these brake bands.

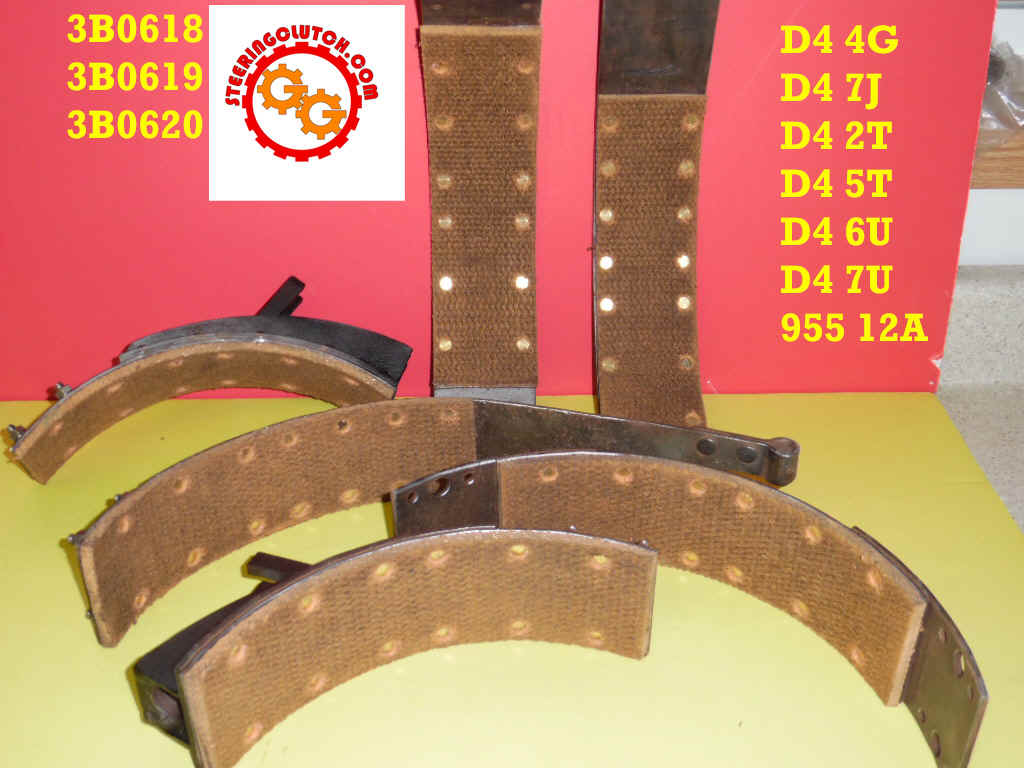

For complete NEW 3 PIECE brake bands with the new style linings and all new carriage bolts, $267.00 ea  These will fit the early R4 AND D4 models 4G, 6G, 7J, 2T, 5T, 6U (early THROUGH #12117) and 7U (early THROUGH SERIAL# 40736) crawlers. (3 pieces, ONE EACH OF 3B0618, 3B0619, 3B0620)

If your serial number is 40737 and above, you will use the later style brake band 8Y6306, also at a cost of $267.00 ea

THIS TYPE OF LINING IS PRIMARILY FOR DRY TYPE BRAKES. THE BRAKE LINING KIT, INCLUDES RIVETS, LINING.  $57.00
HEAVY DUTY WOVEN LINING WOVEN WITH BRASS STRANDS, DESIGNED FOR REPEATED USE IN SEVERE CONDITIONS, ABLE TO WITHSTAND HIGH TEMPERATURE USE (400 DEGREE)WITH MINIMAL LOSS OF COEFFICIENT OF FRICTION.  THE MATERIAL IS ALSO GOOD IN SOME OIL TYPE APPLICATIONS.   (IT SHOULD BE GROOVED FOR BETTER PERFORMANCE IN OIL APPLICATIONS)

The lining is easier to work with and you can even change position of rivet holes if necessary to compensate for bad rivet holes in the band.  This style of lining elminates the possibility of breaking, cracking, or chipping like the molded style linings which are brittle and must fit the perfect curvature of the band.   It is often tough to fit the molded linings to 70-80 year old brake bands without damaging that style of lining.  Getting proper clearances is even harder!

CATERPILLAR FLYWHEEL CLUTCH PARTS

Caterpillar made periodic changes to the cast flywheel clutch pressure plates and backing plates.  Over time most of the early plates have been cracked/worn and replaced with the latest update 2H6776 and the 2H6777 (2H8380) cast plates.  If have the updated versions, you are in good shape as you only have to replace the casting that may be broken/worn/warped or no longer usable.  If you have any of the earlier castings and have to replace one of them,  you will have to replace both the front and back castings with the later castings.

      D4 FLYWHEEL CLUTCH PLATE  5F7048 --> 6Y7161 -->1177197  $85.00 EA

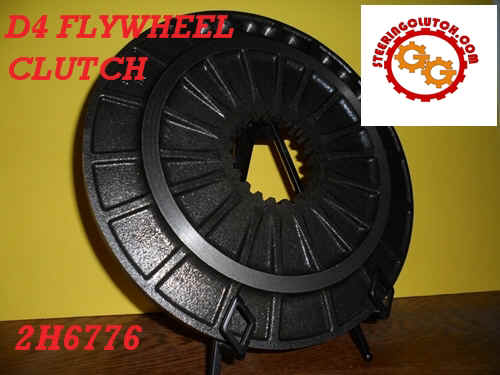

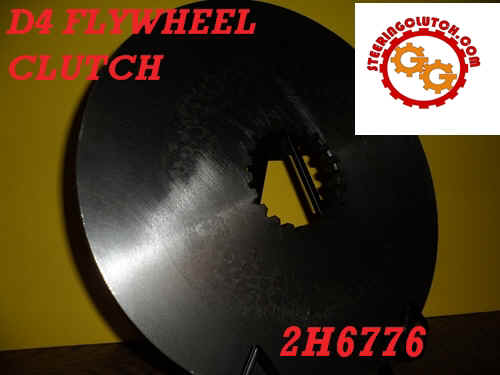

        D4 FLYWHEEL CLUTCH PRESSURE PLATE    2H6776     NEW $160.00
(earlier casting numbers were 3B0606, 5B2921, 7B0749, 8F2950, 2F5461..........If you have one of these early numbers on your olsd clutch, you will either have to find a good used identical replacement with the same casting number or replace both the front and back castings of your flywheel clutch.

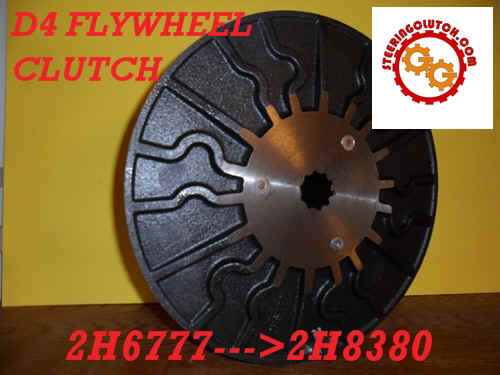

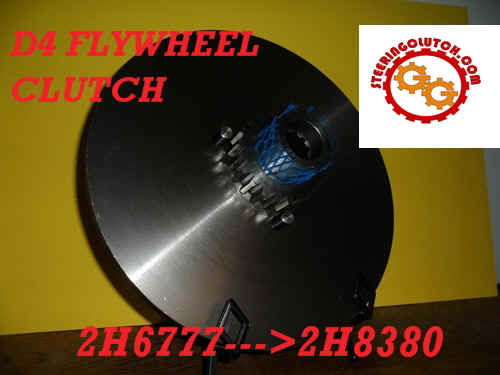

        D4 FLYWHEEL CLUTCH PLATE (GEARED PLATE)  2H6777--->2H8380   NEW  $180.00
(earlier casting numbers were 3B0650,4B5923, 4B5924, 5B2924, 5B2922.......If you have one of these early numbers on your olsd clutch, you will either have to find a good used identical replacement with the same casting number or replace both the front and back castings of your flywheel clutch.

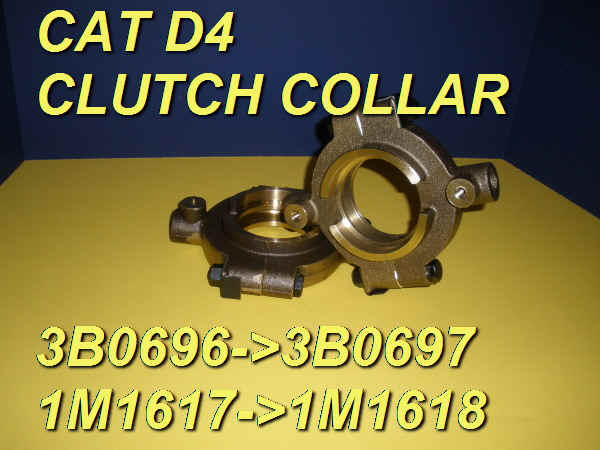

     D4 FLYWHEEL CLUTCH COLLAR.....TWO PIECE THROW-OUT FOR D4 MODELS 4G, 7J, 2T, 5T, 6U, AND 7U                                                 P/N'S   3B0696->3B0697 -> 1M1617-> 1M1618      COMPLETE COLLAR          $215.00

  NOW IN STOCK   D4 FLYWHEEL CLUTCH OIL TYPE CLUTCH DISCS.............ALSO FIT THE 955 12A   NEW   $64.00 EA
2H6121--->4H2923--->1S8183--->4S9074 PART NUMBERS  2 REQUIRED PER FLYWHEEL CLUTCH

       Bellows type final drive seals for the early D4 are in stock.  $139.00  CLICK HERE FOR DETAILS
D4 FINAL DRIVE SEAL 1A7589--->3B5706--> 1H9887--> 5H0425 BELLOWS SEAL

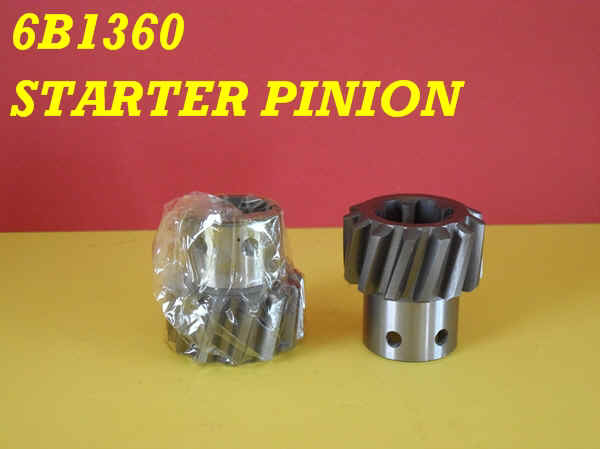

  TO PROTECT YOUR FLYWHEEL RING GEAR WE HAVE PRODUCED NEW STARTER PINION GEARS...6B1360   $154.00

OR!!!!!IF YOU WANT TO GET RID OF THE STARTER PINION GROUP AND PONY MOTOR BOTH, YOU CAN CONVERT TO 24V DIRECT

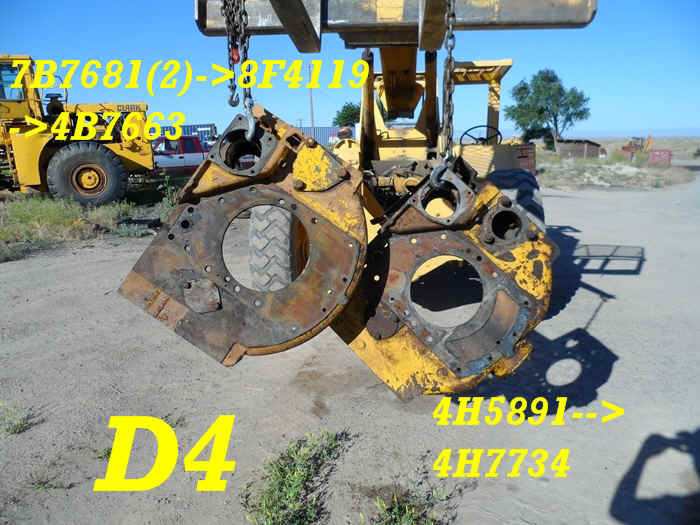

ELECTRIC START.........AND YOU WILL NEED A FLYWHEEL HOUSING    THE ONE ON THE LEFT WILL FIT THE D4 7J, 2T, 5T, AND EARLY 6U AND 7U CRAWLERS   $400.00 AND THE ONE ON THE RIGHT WILL FIT LATE 6U'S AND 7U'S AND FIT BOTH THE DRY CLUTCH AND OIL TYPE CLUTCH 6U/7U'S.  ALSO $450.00

  D4 STEEL ID PLATE $12.00 EA OR SET OF 2 @ $20.00

  D4 BRASS ID PLATE $18.00 EA OR SET OF 2 @ $30.00

SET OF 5 STEEL EMBLEMS FOR THE EARLY CRAWLERS $50.00 PER SET

SET OF 5 BRASS EMBLEMS FOR THE EARLY CRAWLERS $75.0 PER SET

D4 STEERING CLUTCH DIS-ASSEMBLY IN PICTURES

		The "T" bar puller can be used with the center  push-bolt or a hydraulic cylinder.	We have a lot of misc pins laying around but this chunk of steel fit perfectly.
On a D2 or a D4 the clutches are pressed off end of bevel gear cross shaft.  On D5 D6 D7's you press off a tapered splined stub shaft and flange.	Removal of bearing cage and bearing makes disassembly easier. Don't forget to remove set screws in retainer nut!!	When you press down on the compression tool you want something to keep the studs in place so get a spacer to keep studs from dropping when you turn the clutch over.	You can use a press like we usually do but unless you do a lot of these clutches a simple piece of all-thread is all that you need.  Anchor it through your work bench or table.
Place compression tool and add a washer to disperse the pressure over the face of the tool.  Otherwise you can end up with a concave tool!	With your spacer underneath to keep your studs in place (shown above) and compression tool on top you are ready to compress the springs.	As the springs compress the end of the studs will gain clearance until the locks are free from the retainers.	Remove all of the locks and be careful not to lose any! When you put these back in you apply grease to the locks keep them in place.
Release all pressure and remove compression tool.  You can now remove retainers and springs.	Now is time to check measurements on springs. if any are shorter than the others by 1/8" it should be replaced. It is probably a good practice just to replace them due to low cost and the labor involved if you have to go back in there again!		Now you can remove all the parts for inspection of discs and components. Minor rippling on the inner drum is fine. Make sure stud holes on pressure plate are not wallowed out or worn too far below the surface.
