| The D3 and D3B and D3C models were originally
dry type steering clutches and changed to the oil steering clutches later in their series. The Dry Clutch D3 79U series
and the D3B 23Y, along with the 931 78U and 931B track loaders series used composite
friction discs, qty (7) 8E4075 (earlier part numbers of 6Y4912 or 6S3183) per clutch and
qty (6) steel separator plates (2H6936) per steering clutch. You will almost always have
to replace the fiber discs, but the steel plates are usually reusable. If the steel plates
are damaged, by scoring, warping, or just plain old wear they should be replaced. (Oil Type Clutch parts can be found below the Dry Type Clutch parts info)
Occasionally we get calls regarding
"complete" steering clutch kits. The term, "Complete Kit", is
misleading because it implies that the parts supplier knows what you need for your clutch.
They don't!! (And...not all"Kits" being offered by different parts suppliers are
even the same!!)
We take the menu approach. This gives you, the equipment owner or repair shop, the right
to select only the items that you need to make your repairs. You're the boss!
ORDERING INFO:
 We
can usually ship on the same day any items we have in stock that do not have to be pulled
from a machine. We are set up to offer the payment choices of either Visa, Master
Card, or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also
email steeringclutch@gmail.com
for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
 Free shipping in US only, Priority Mail or UPS
Ground, on CLUTCH PACK
COMPONENT orders $500 or higher.
CLUTCH PACK OPTIONS
7 BIMETALLIC FRICTION DISCS AND 6 STEEL PLATES = $275.00
7 HEAVY DUTY FRICTIONS AND 6 STEEL PLATES = $205.00
NEW After a few years producing and
providing the standard fiber disc, we have now produced a steel based friction disc to
strengthen your clutch and improve its potential for long term reliability. Similar
to the bimetallic disc, the center steel plate is sandwiched between two fiber wear
surfaces. Anticipating a higher volume of demand, we have been able to keep the cost
very close to the earlier style fiber disc.
$19.00 The increased cost
for these heavier duty discs is $49.00 per clutch (A small price to pay for
teeth that will not break off!)

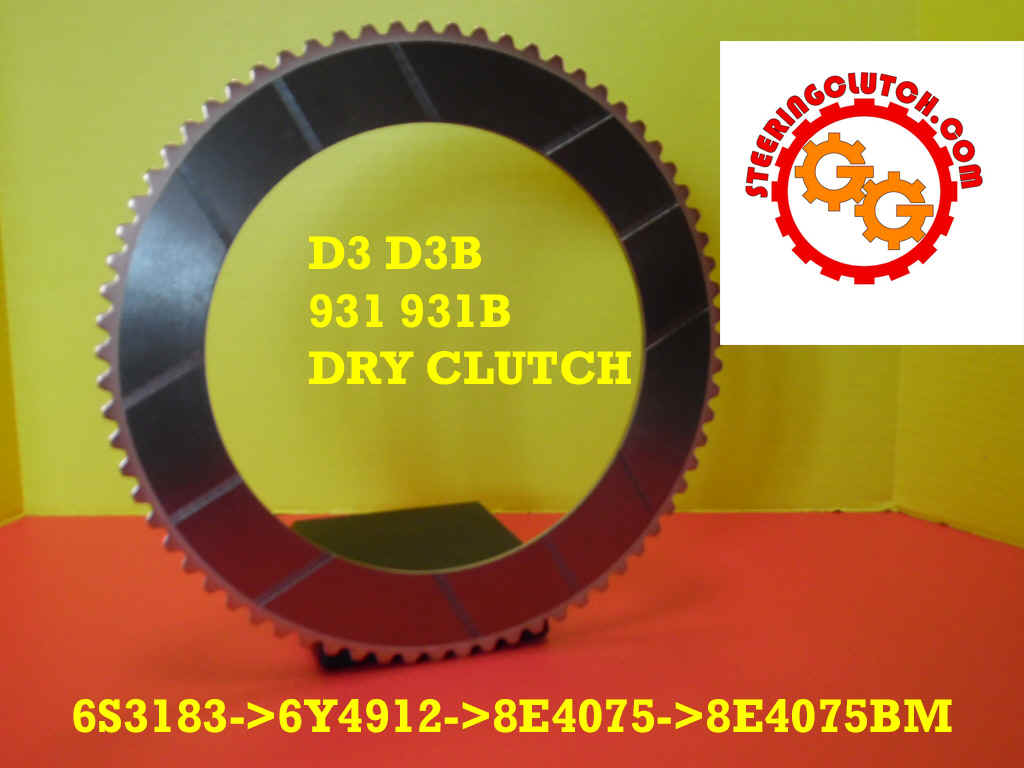

 EVEN NEWER!! We
are now introducing bronze bimetallic friction discs that we anticipate will be the new
standard for the D3-D3b 931-931B dry type steering clutches. Besides having the
steel tooth center base, of course, the friction surfaces have been upgraded to the bronze
alloy friction material. Besides increased longevity of wear, they will have less
bonding possibility due to moisture and not working the machine. The bronze material
will also allow the owners to wash out their compartments without hurting the discs.
There is also an added bonus of increased coefficient of friction by 3% over the
earlier composite fiber discs and paper faced frictions 29.00 ea

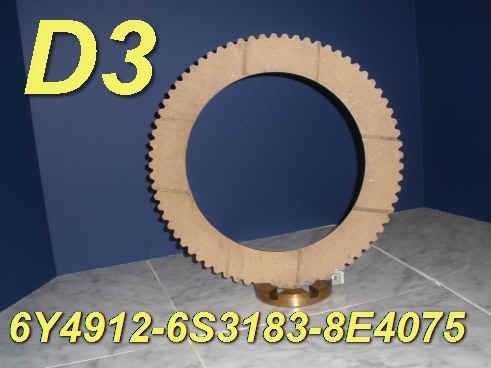

D3 Fiber/composite friction discs (8E4075 or 6Y4912 or 6S3183)
We no longer supply the fiber frictions because
they result in inferior cutch packs.

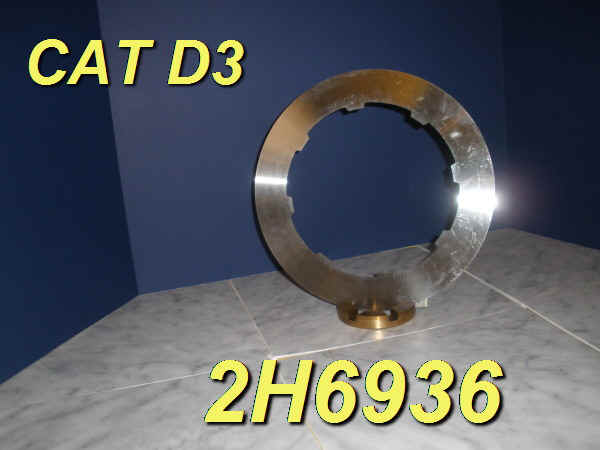

(6) D3 2H6936 Steel plates per clutch $12.00 ea
Compression Springs....set of 8 ...
Set of 8 6S3414 springs $74.00

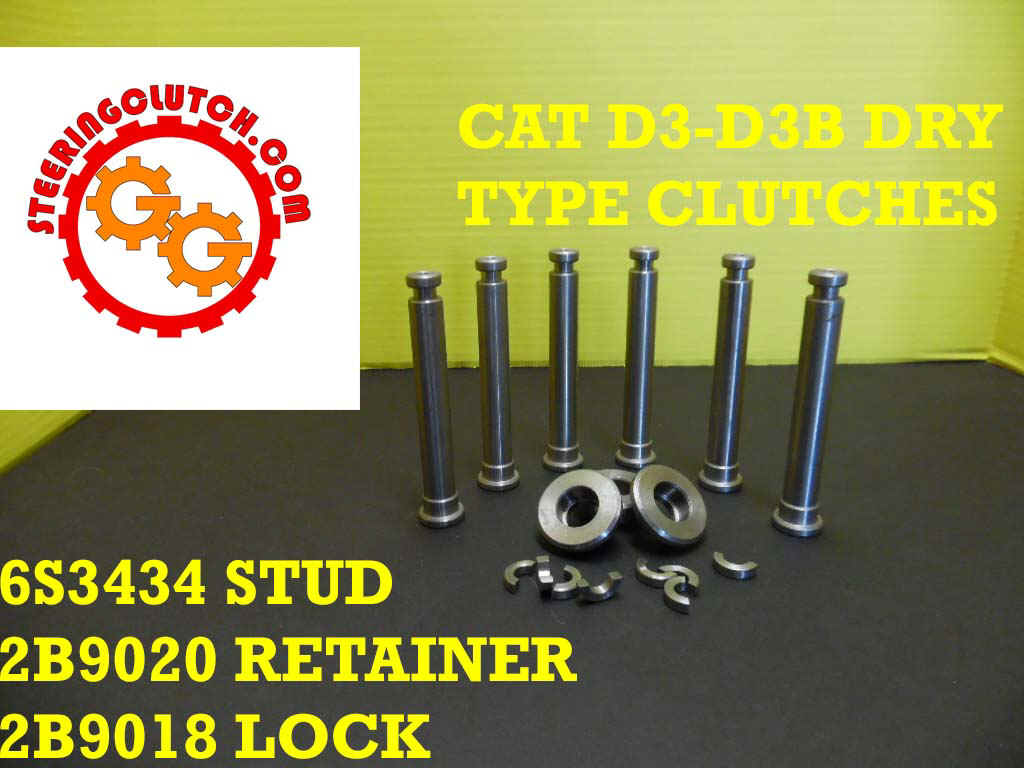

 STUDS/LOCKS/RETAINERS
6S3434 STUDS, 8 used per clutch, NEW 12.00
EA
2B9020 RETAINERS, 8 used per clutch, NEW 7.00
EA
2B9018 LOCKS, 16 used per clutch, NEW 2.00 EA

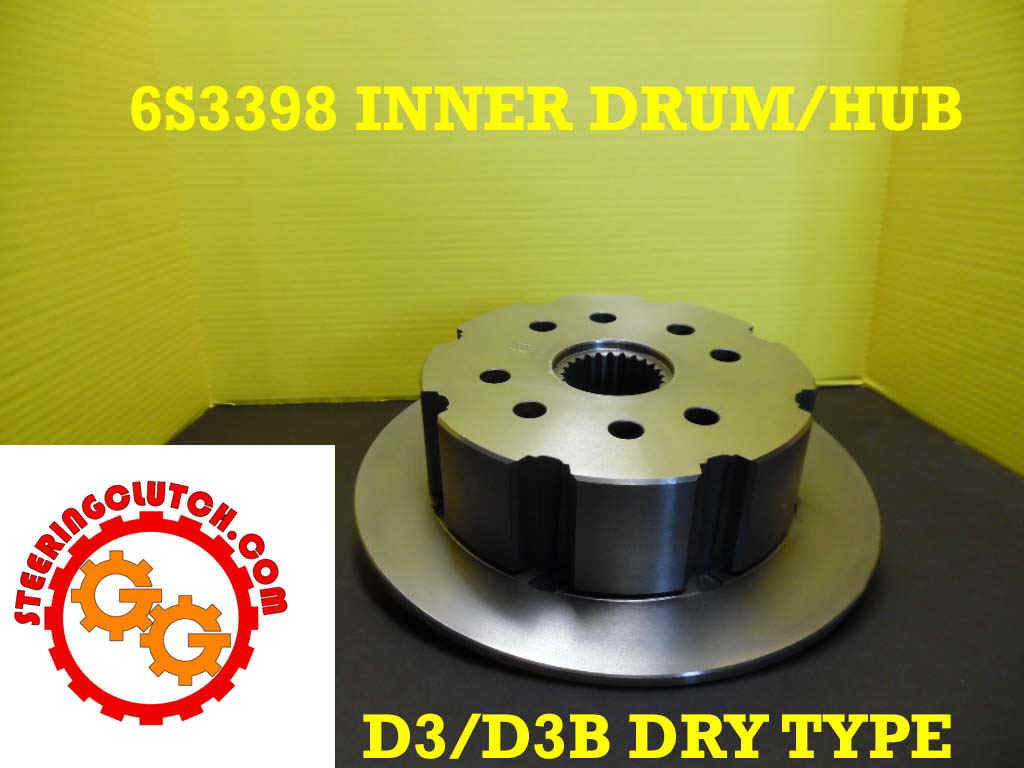

 6S3398 STEERING CLUTCH INNER HUB/DRUM
315.00 + 21.90 UPS SHIPPING in the US. Not part of the steering clutch pack
components.

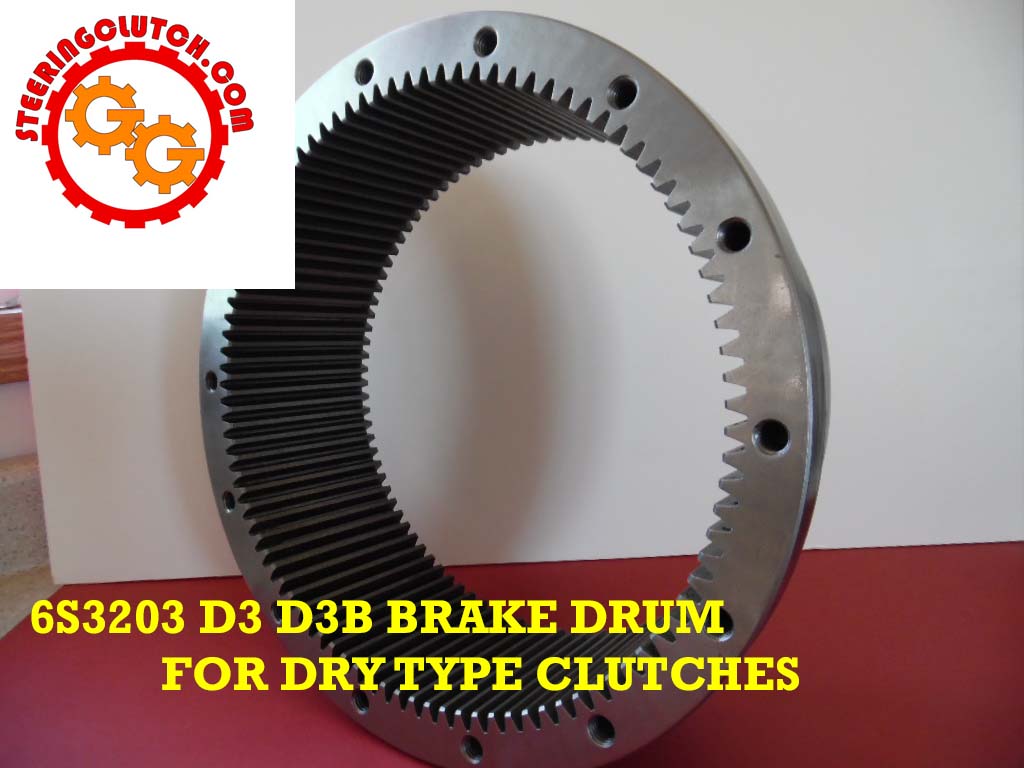

 6S3203 BRAKE DRUM
$345.00 for dry type steering clutches add 24.00 for shipping.
Not part of the steering clutch pack components.

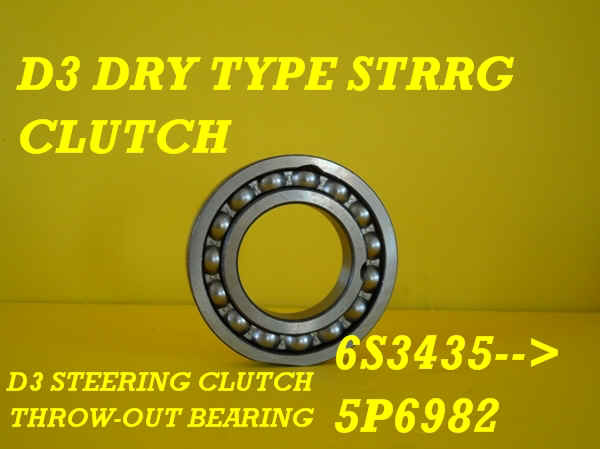

 DRY TYPE STEERING CLUTCH THROW-OUT BEARING
6S3435--->5P6982 $33.00 EA

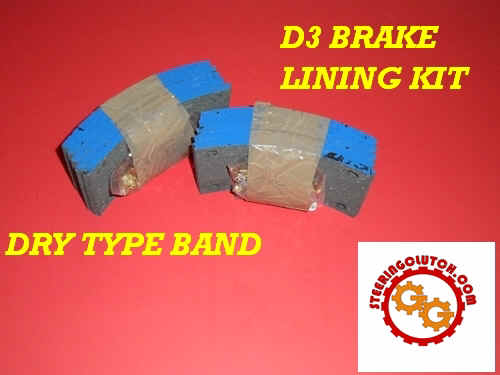

BRAKE LINING KIT FOR DRY TYPE BRAKE BANDS............$42.00 PER KIT
(5 pads and rivets)
SOME OF THE EARIER DRY TYPE BANDS HAD 6 PADS PER BRAKE BAND.......$52.00 PER KIT (6 pads
and rivets)
 SEE NOTE BELOW
IF YOU HAVE THE 6 PAD BANDS IT IS RECOMMENDED
THAT YOU CONVERT TO THE 5 PAD OPTION. "The result is
better brake action with less force needed on the pedal, and less brake noise."
To see how this convesion is done, (CLICK
HERE)

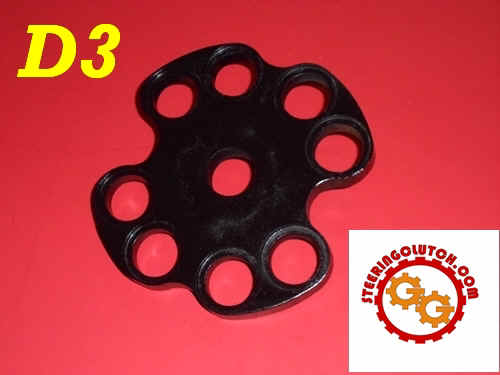

 STEERING CLUTCH COMPRESSION TOOL FOR
ASSEMBLY/DISASSEMBLY
3B6779-->5F5038-->7S8431-->1U9349 $65.00
Oil Clutch
style of steering clutches used different discs and different quantities. One
complete steering clutch used Qty 9 friction discs 6Y7914 (Earlier P/n's 5K8617 or 3A2858
were replaced by the 6Y7914) and Qty 9 Steel discs P/n 5K8616. There was also a
special plate, P/n 5V0593, a little thicker than the normal friction disc, and one per
clutch was used. (earlier P/n's replaced by the 5V0593 were 4K1333, 9K5484, and
2Y5134)
One complete clutch pack of 9
friction, 9 steel, and one special plate has a cost of $205.60
(9) Friction Discs  6Y7914 per clutch $12.00
EA.
(9) Steel separator plates  5K8616 per clutch 9.00 ea
(1) Special Disc Assy  5V0593 per clutch 16.60 ea
 STEERING CLUTCH THROW-OUT BEARING FOR OIL TYPE
CLUTCHES 7B7515
$33.00
EARLIER BEARING PART NUMBERS REPLACED BY THE 7B7515 WERE 7F4031 6V0924 2U5271 2U0767
7R0892
Compression Springs....set of 8 ...
Set of springs $74.00

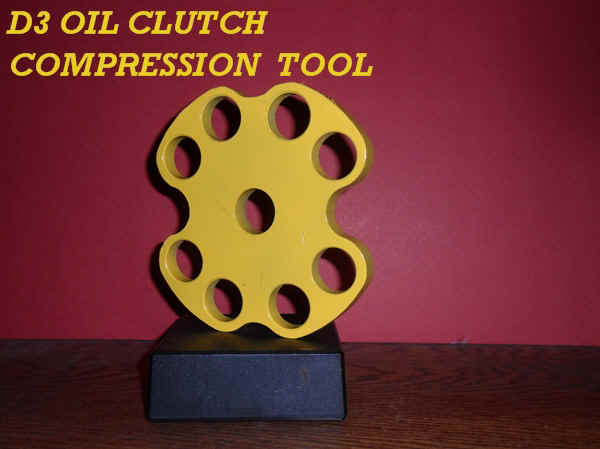

STEERING CLUTCH COMPRESSION TOOL FOR OIL TYPE D3 STEERING CLUTCHES $65.00
LINING KITS FOR THE OIL TYPE BRAKE
BANDS, INCLUDE INNER AND OUTER LININGS AND RIVETS
$269.00 FOR ONE COMPLETE BRAKE BAND
Click HERE to view all of our new steering
clutch discs.
|
