The 977 Traxcavators actually began with the production
of the #6 10A Traxcavator, built on the D6 9U crawler frame. The dry type steering
clutch packs were retained through the 20A model and the 53A's serial number 53A 1 thru
1906. Beginning with the 53A series the inner driving drums and quantity of discs
decreased to ten bimetallic and 10 steel discs, using the D7 sized 7M5001 inner driving
drum instead of the D6 sized 7M5002. Brake bands remained the same as did their
lining kits.
Twelve (12) bimetallic friction discs and twelve (12) steel separator plates are required
for each clutch pack. (Ten each for the 977 53A dry clutches) Unless severe damage has
occurred, you often have to replace only the bimetallic friction discs. This keeps your
costs down quite a bit. I would highly recommend that you check your brake bands at this
time, unless you just enjoy pulling wrenches. All parts listed below are new replacement
parts, non oem.
Brake Band relining kit $42.00 per clutch (a band is 3 sections, the price includes all
rivets and linings for one complete brake band)
ORDERING INFO:
 We can usually ship on the same day any items we have in
stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also
email steeringclutch@gmail.com
for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.

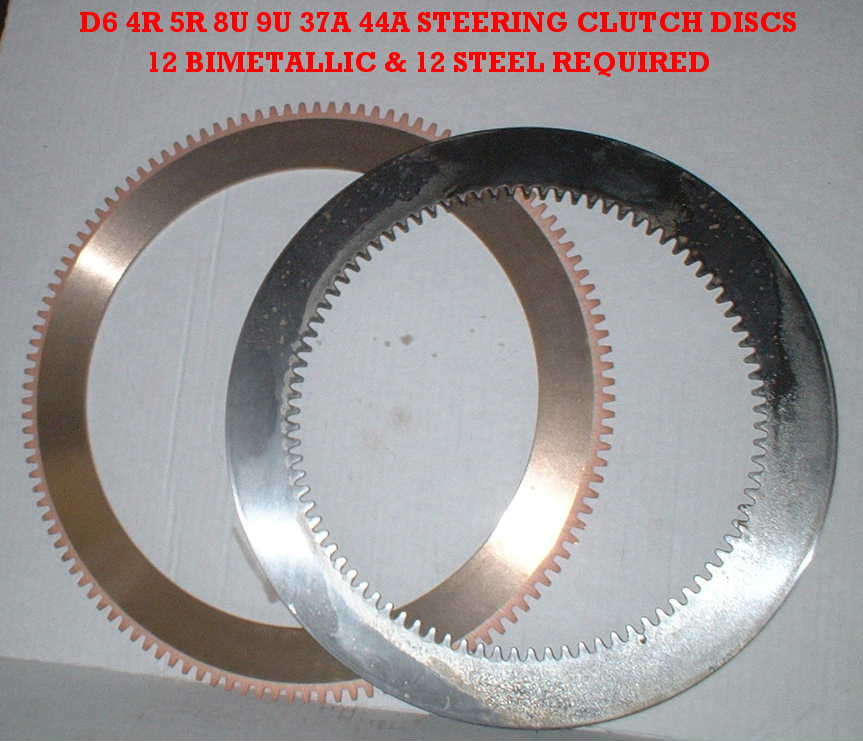

(12) D6/977 2F8621-->6Y7160 Bimetallic friction discs per clutch @ $26.00 ea
(12) D6/977 1A3987 Steel separator plates per clutch@ $16.00 ea

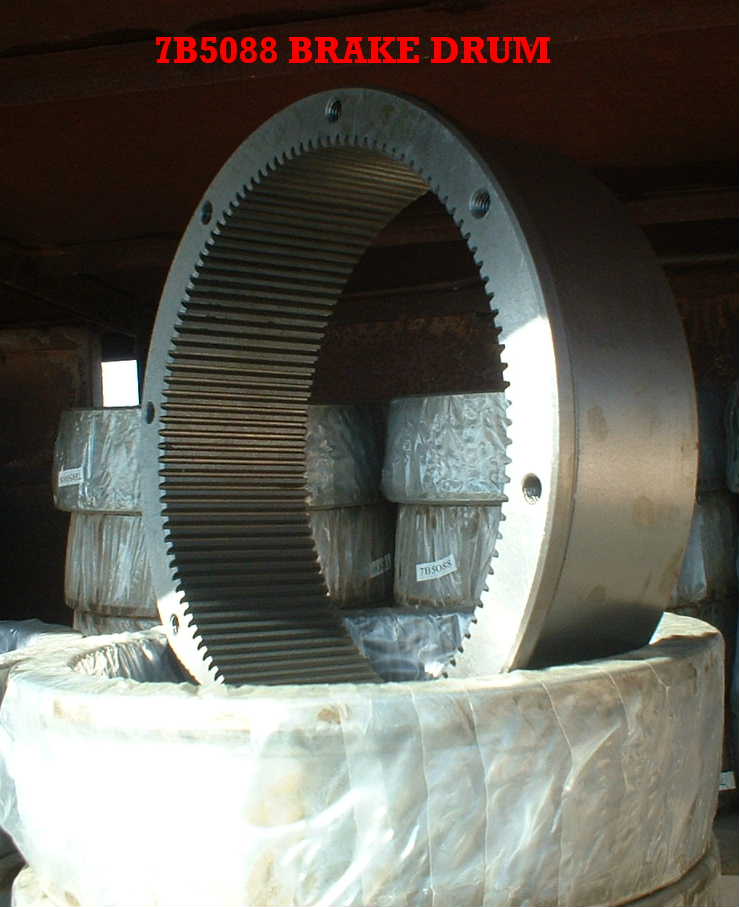

6B4189--->7B5088 NEW Outer Brake Drum $270.00

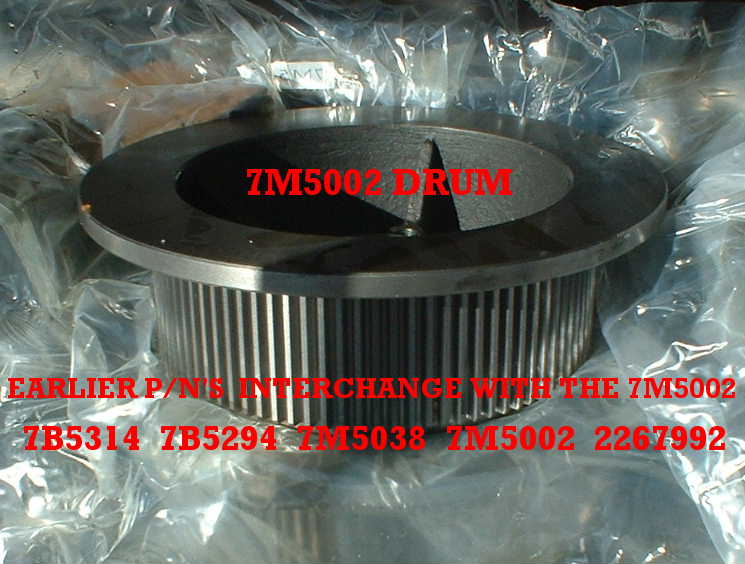

7B5314 --> 7M5038 --> 7B5294--->7M5002--->2667992 NEW Inner Driving
Drum $190.00

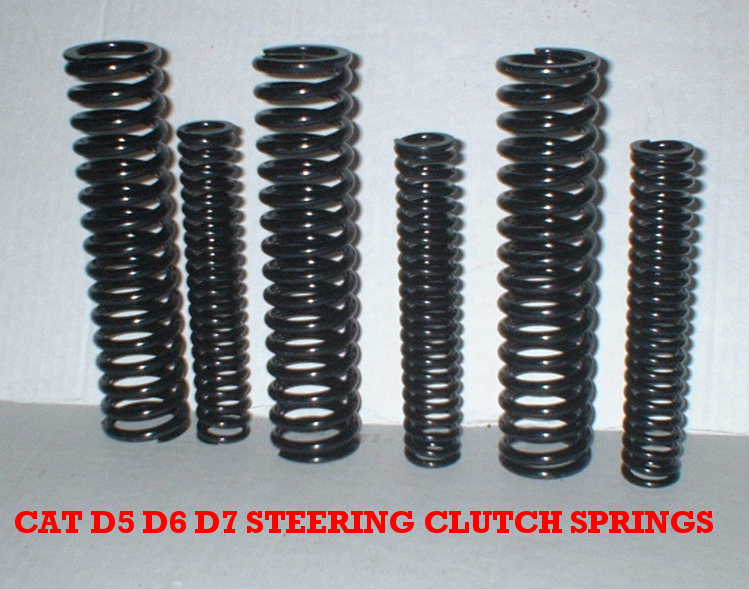

(8) Steering clutch 6B9633 outer springs $4.50 ea
(8) Steering clutch 6B9632 inner springs $3.00 ea

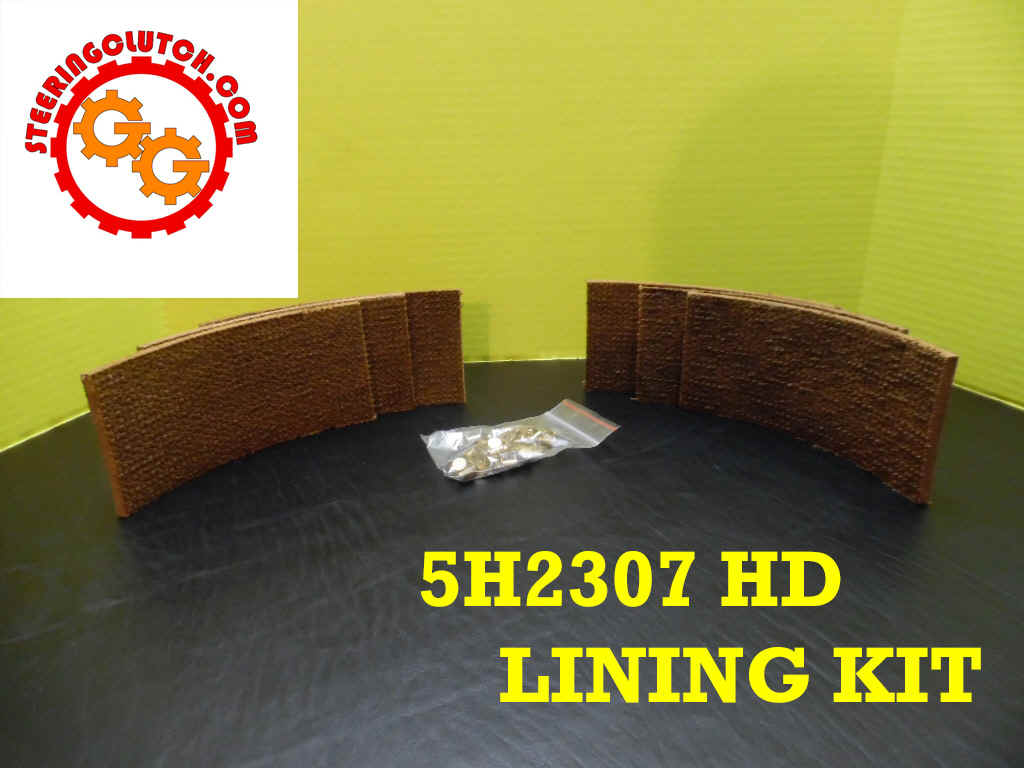

HEAVY DUTY WOVEN LINING
57.00 ORDER P/N 5H2307HD
THIS TYPE OF LINING IS PRIMARILY FOR DRY TYPE
BRAKES. THE BRAKE LINING KIT, INCLUDES RIVETS, LINING, 57.00/SET
HEAVY DUTY WOVEN LINING WOVEN WITH BRASS STRANDS, DESIGNED FOR REPEATED USE IN SEVERE
CONDITIONS, ABLE TO WITHSTAND HIGH TEMPERATURE USE (400 DEGREE)WITH MINIMAL LOSS OF
COEFFICIENT OF FRICTION. THE MATERIAL IS ALSO GOOD IN SOME OIL TYPE APPLICATIONS.
(IT SHOULD BE GROOVED FOR BETTER PERFORMANCE IN OIL APPLICATIONS)
The lining is easier to work with and you can even change position of rivet holes if
necessary to compensate for bad rivet holes in the band. This style of lining
elminates the possibility of breaking, cracking, or chipping like the molded style linings
which are brittle and must fit the perfect curvature of the band. It is often
tough to fit the molded linings to 70-80 year old brake bands without damaging that style
of lining.

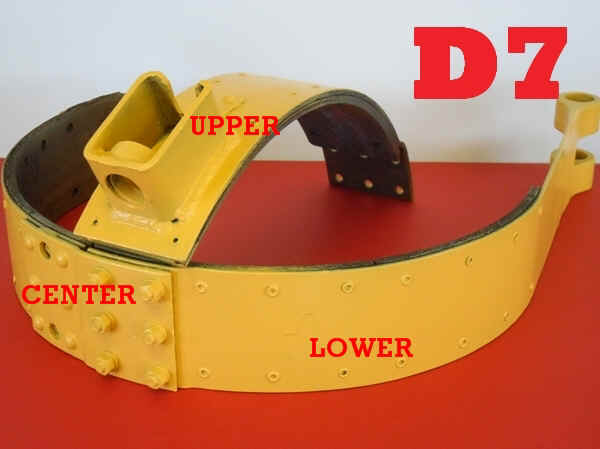

 IN STOCK!! NEW BAKE BANDS COMPLETE WITH NEW
LINING, NEW 3 PC BRAKE BAND $366.00 OUTRIGHT
AND NO CORE CHARGES!!
These bands will fit the D7 dry type steering clutches for the models D7 7M, D7 3T, 4T,
6T, and D7 17A.
The part numbers for these bands went through quite an evolution as did the bands.
The early bands, for the model 7M's and early 3T's did not have any reinforcing plates at
the joints. When the part numbers went from the "B" part numbers to the
"F" part numbers, reinforcing plates were added to the "6F" and on all
bands thereafter. Upper Band P/N's 6B7484->6F6285->1M0547->8E7624
Center Band P/N's 6B7352->6F2686->8E7622 Lower Band P/N's
6B7241->6F2687->4M8766->9P0740->8E7625
WHEN REMOVING YOUR STEERING CLUTCH..........IT
IS IMPORTANT TO RIG YOUR LIFTING SLING ON THE BRAKE BAND
PROPERLY TO PREVENT DAMAGE TO YOUR BRAKE BAND (CLICK
HERE FOR INFO) This
excerpt from a 1955 Service Magazine
is a reference for the D8 steering clutch but the principle is the same. Do not
damage your brake band!

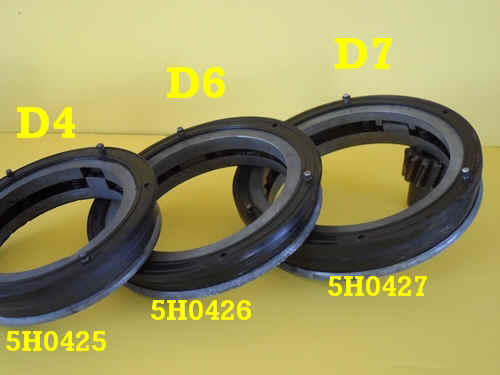

Bellows type final drive seals for the early D7 are
in stock. $156.00 CLICK HERE FOR
DETAILS
D7 FINAL DRIVE SEAL 6B5034-->1F0923
-->8F8241---> 5H0427 BELLOWS SEAL
Click HERE to view all of our new steering
clutch discs.
|
