The 941 Traxcavators of the model numbers
75H, 70H 1 thru 2237, and 80H 1 thru 3039 were all dry clutch machines and used the
same bimetallic discs and steel separator plates as the D4D's and 955's made at the same
time.
The 951 Traxcavators of the model numbers
89A, 92A, 72J, and 78J also used the same discs and separator plates as the dry
clutch machines made during this time.
The 955 Traxcavators (Track Loaders)
beginning with the 12A model and including the 26A, 45A, and 60A Serial number 1
through 3625 had steering clutches designed after the dozers of the same
vintage. They used the 3F5504 bimetallic discs and the 2H6936 steel
separator plates. These were all dry steering clutches, not running in oil.
 Free shipping in US only, Priority Mail or UPS Ground, on orders
$500 or higher.
ORDERING INFO:
 We can usually ship on the same day any items we have in stock
that do not have to be pulled from a machine. We are set up to offer the payment
choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also
email steeringclutch@gmail.com
for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.

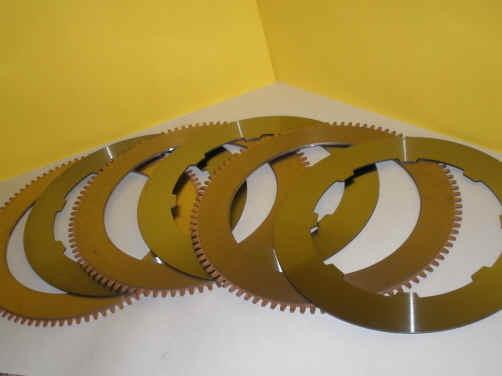

D4 3F5504 Bimetallic friction discs @ $21.00 ea (Qty 11 used per clutch)
D4 2H6936 Steel separator plates @ $12.00 ea (Qty 10 used per clutch)
One complete clutch pack of discs = $361.00

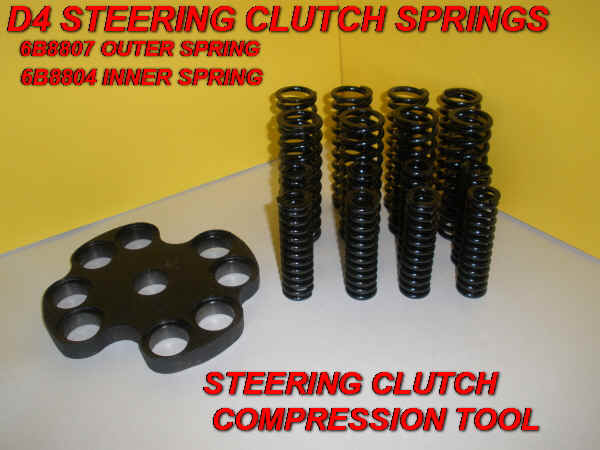

 D4/955 DRY TYPE STEERING CLUTCH SPRINGS
AND CLUTCH COMPRESSION TOOL
6B8807 OUTER SPRING (8 REQUIRED) 4.00 EA =
32.00
6B8804 INNER SPRING (8 REQUIRED) 3.50 EA = 28.00
CLUTCH COMPESSION TOOL 3B6779-->5F5038-->7S8431-->1U9349 65.00 EA

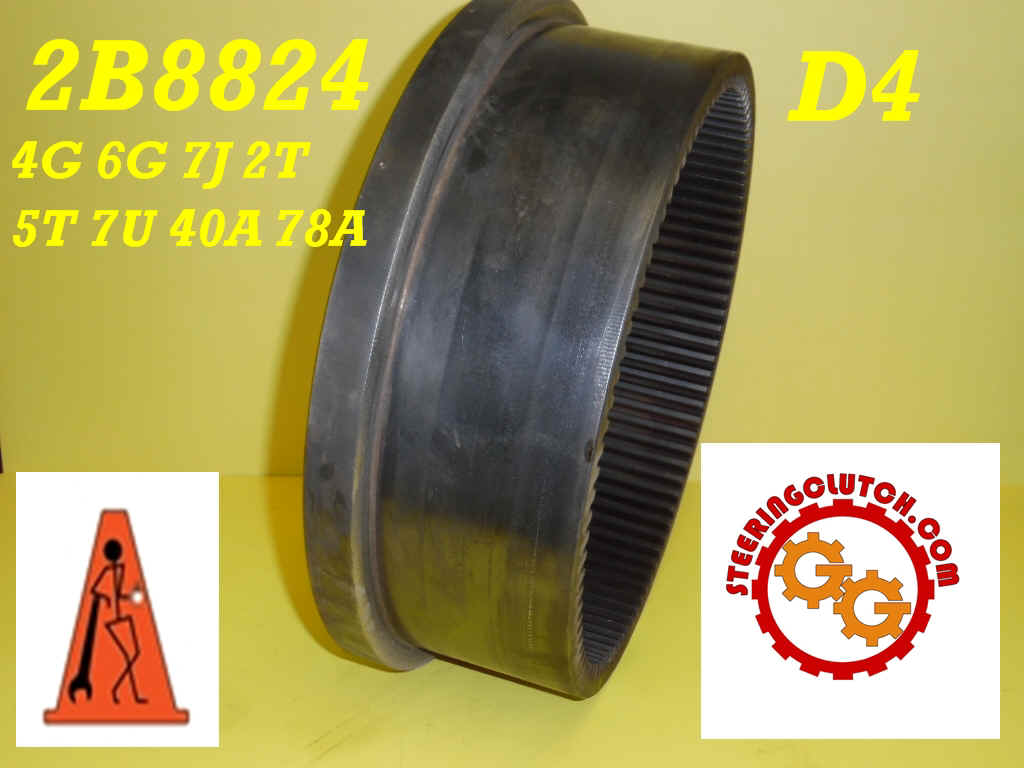

2B8824 BRAKE
DRUMS FOR EARLY D4 MODELS
4G 6G 7J 2T 5T 6U 7U 40A 78A CRAWLERS AND 955 12A TRACK
LOADERS NEW $250.00
EA

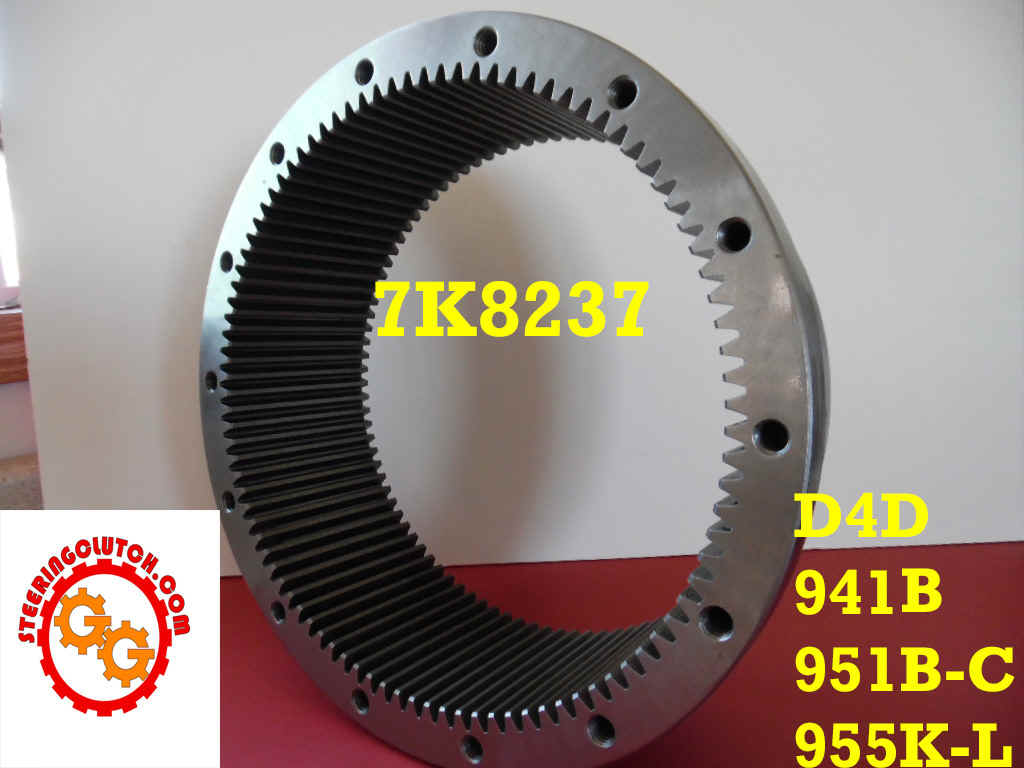

7K8237
BRAKE DRUM 250.00
 LOOK
CLOSER ON YOUR BRAKE DRUMS !! (Be sure and check part
numbers! You can also cheat a little and count the number of mounting holes on your
brake drum!!) The early 2B8824 brake drums have ten bolt holes and the 7K8237 drum
has 14 holes.
LATER 939 941 951 955'S USED OIL
TYPE STEERING CLUTCHES..941B 951B 955K 955L
 FRICTION

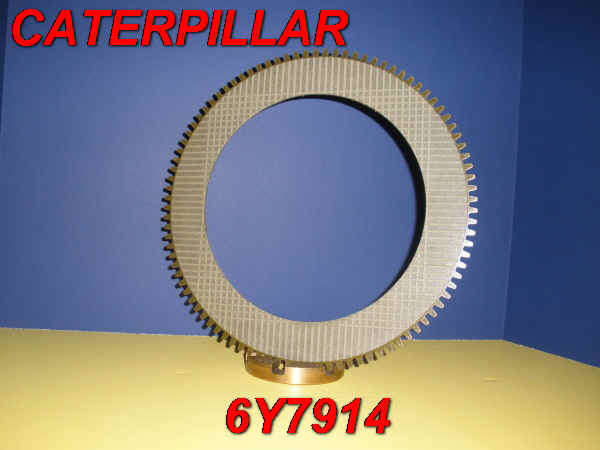

DISCS 5K8617-->3A2858--.6Y7914 $12.00 ea

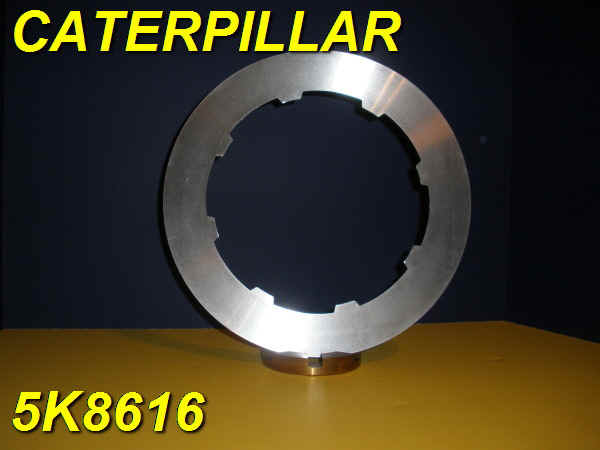

 STEEL SEPARATOR PLATES 5K8616 (EARLIER P/N
4K1317 ALSO) $9.00 ea

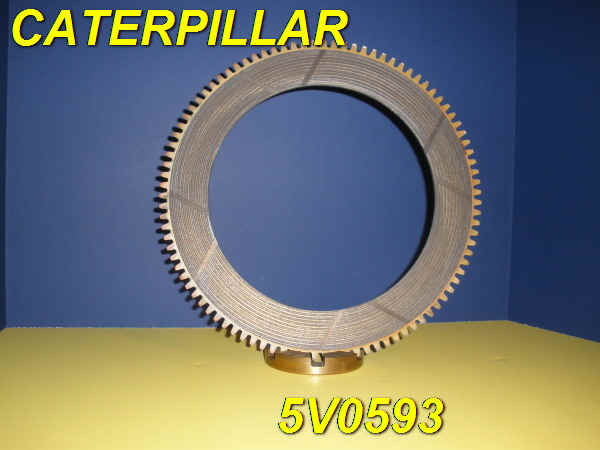

 SPECIAL FRICTION PLATE
4K1333--->9K5484-->2Y5134-->5V0593 $16.50 ea
941 75H uses 11 3F5504 Bimetallic and 10
2H6936 steel separator plates per clutch
941 70H1 thru 70H2237 uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per
clutch
941B 80H1 thru 80H3039 uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per
clutch
951 89A uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per clutch
951 92A uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per clutch
951B 72J uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per clutch
951B 78J uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per clutch
955 12A uses 11 3F5504 Bimetallic and
10 2H6936 steel separator plates per clutch
955 26A uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per clutch
955 45A uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per clutch
955H 60A1 THRU 60A3625 uses 11 3F5504 Bimetallic and 10 2H6936 steel separator plates per
clutch
FOR THE ABOVE MACHINES, USING 11 BIMETALLIC
FRICTIONS AND TEN STEELS, THE CLUTCH PACK COST IS 351.00 PER
CLUTCH
941B 70H2942--->70H3725 used 12 6Y7914 FRICTION DISCS 12 5K8616 STEEL
PLATES AND 1 5V0593 SPECIAL PLATES CLUTCH PACK COST IS
$268.50 PER CLUTCH
941B 80H3040-UP used 12 6Y7914 FRICTION DISCS 12 5K8616 STEEL PLATES AND
1 5V0593 SPECIAL PLATES CLUTCH PACK COST IS $268.50 PER CLUTCH
951B 69H/79H used 15
5K8617-->3A2858--.6Y7914 FRICTION DISCS 15 5K8616 STEEL PLATES AND 1 5V0593
SPECIAL PLATES CLUTCH
PACK COST IS $331.50 PER CLUTCH
951B 86J1529-UP used 15 5K8617-->3A2858--.6Y7914 FRICTION DISCS 15
5K8616 STEEL PLATES AND 1 5V0593 SPECIAL PLATES CLUTCH PACK COST IS $331.50 PER CLUTCH
955H 60A 3626-UP used 14
4K1333--->9K5484-->2Y5134-->5V0593 FRICTION DISC ASSY AND 13 4K1317 (5K8616)
STEEL SEPARATOR PLATES CLUTCH
PACK COST IS $348.00 PER CLUTCH
955K 85J AND 61H MODELS used 14 4K1333--->9K5484-->2Y5134-->5V0593 FRICTION
DISC ASSY AND 13 4K1317 (5K8616) STEEL SEPARATOR PLATES CLUTCH PACK COST IS $348.00 PER CLUTCH
955L 64J used 14 4K1333--->9K5484-->2Y5134-->5V0593 FRICTION DISC ASSY AND 13
4K1317 (5K8616) STEEL SEPARATOR PLATES CLUTCH PACK COST IS $348.00 PER CLUTCH
LINING KITS FOR THE OIL TYPE CLUTCHES......INNER AND
OUTER LININGS AND RIVETS......LINING KIT $269.00
Click HERE to view all of our new steering
clutch discs.
|
